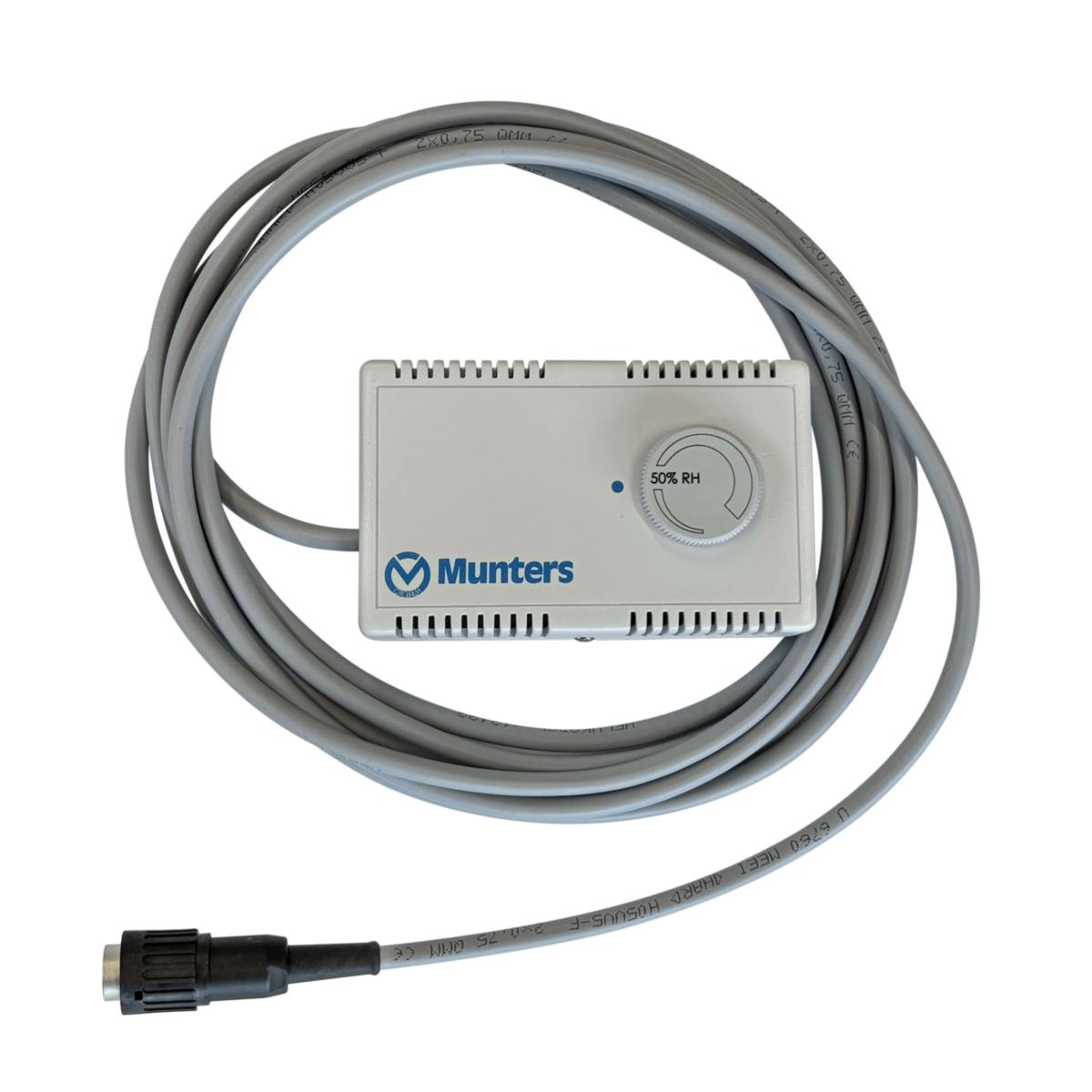

Hygrostat RH15 för MG90, Munters

HMH2 is a 2-step electromechanical hygrostat for controlling and regulating humidification and/or dehumidification systems in climate and ventilation installations. HMH2 has two micro switches. The step difference between them can be adjusted steplessly with a set screw. The hygrostat uses a hair element as a moisture sensor. Since the contacts are changeover, the hygrostat can control both humidification and dehumidification. Comes in standard design with changeover contact 250V AC 10A. Since the contacts are changeover, the hygrostat can control both humidification and dehumidification. Can be mounted in a duct or on a wall. The hygrostat is delivered with a bracket that fits both mounting methods. Setting range 10-100% RH with a switching differential of 3% RH at 45% RH. The temperature range refers to the maximum allowable temperature at the sensing element, ambient temperature at the device housing. The dimensions refer to the device housing. The tube has a length of 222 mm with a diameter of 35 mm.
