Drybox
Thermal Dehumidifier Dryheat 100, Drybox
DryHeat 100 DryHeat 100 thermal dehumidifi
Article number: Suppl. article no:
19059839
X3562
to see price and stock

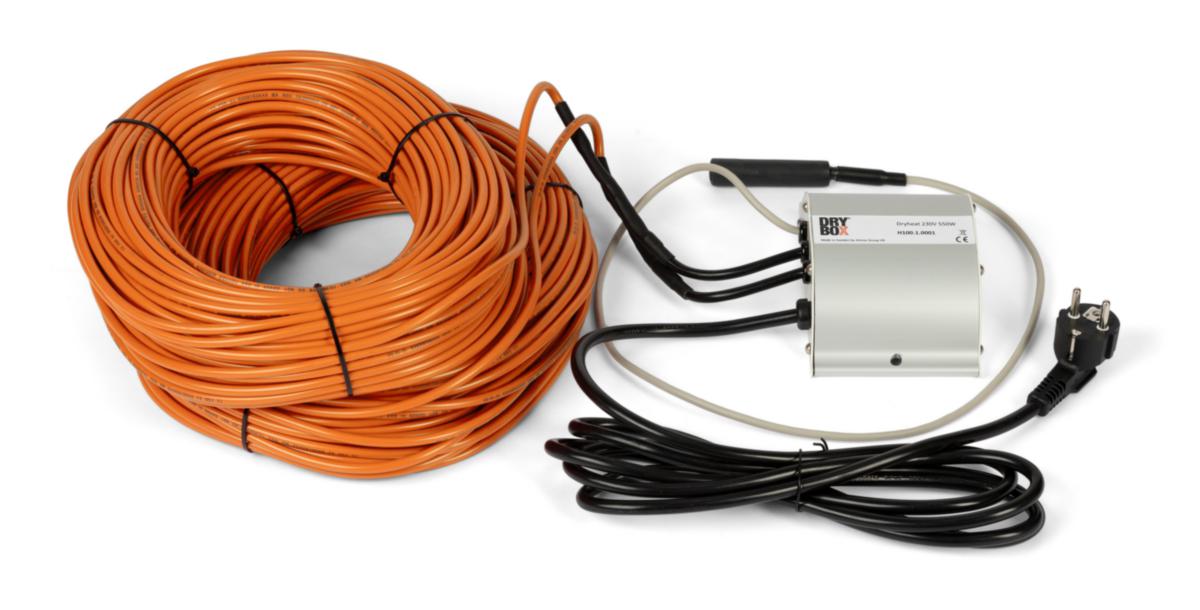

Thermal dehumidifier for large crawl spaces and foundation spaces, suitable for 90+ sqm. DryHeat 100 consists of a control unit and two 50m heating cables that are permanently mounted in the control unit. The two individual loops provide an even distribution of moisture protection. Warm air can hold more moisture than cold air, the thermal dehumidifier raises the temperature when needed to keep the relative humidity at safe levels. The passive control ensures low energy consumption.
Specifications:
Temperature increase: +2°C
Installed relative humidity: = 60% RH
Connection: 230 V / 50 Hz
Connection power: 550 W (per loop)
Heating cable length: 50 m (per loop)
Weight: 7 kg
Control unit size (D x W x H): 120 x 100 x 50 mm
Normal energy consumption: 7 kWh per m2/year
Warranty: 2 years
Specifications:
Temperature increase: +2°C
Installed relative humidity: = 60% RH
Connection: 230 V / 50 Hz
Connection power: 550 W (per loop)
Heating cable length: 50 m (per loop)
Weight: 7 kg
Control unit size (D x W x H): 120 x 100 x 50 mm
Normal energy consumption: 7 kWh per m2/year
Warranty: 2 years
- Article number: 19059839
- Suppl. article no: X3562
- Ean no: 7350069720320
- Material class PNK370
Technical data
- Colour outer sheath: Red
- Cable geometry: Round
- Screen over stranding: Braiding
- Screen over stranding element: None
- Conductor category: Class 2 = stranded
- Material core insulation: Polyolefin
- Material conductor 1: Other
- Material conductor 2: Other
- Material outer sheath: Polyvinyl chloride (PVC)
- Nominal cross section conductor: 1.6 mm²
- Specification core insulation: Other
- Specification material outer sheath: Other
- AWG size: 16
- Reaction-to-fire according to EN 13501-6: Acidity: None
- Weight: 5.3 kg/100m
- Outer diameter approximate: 7 mm
