SPX Tigerholm Products

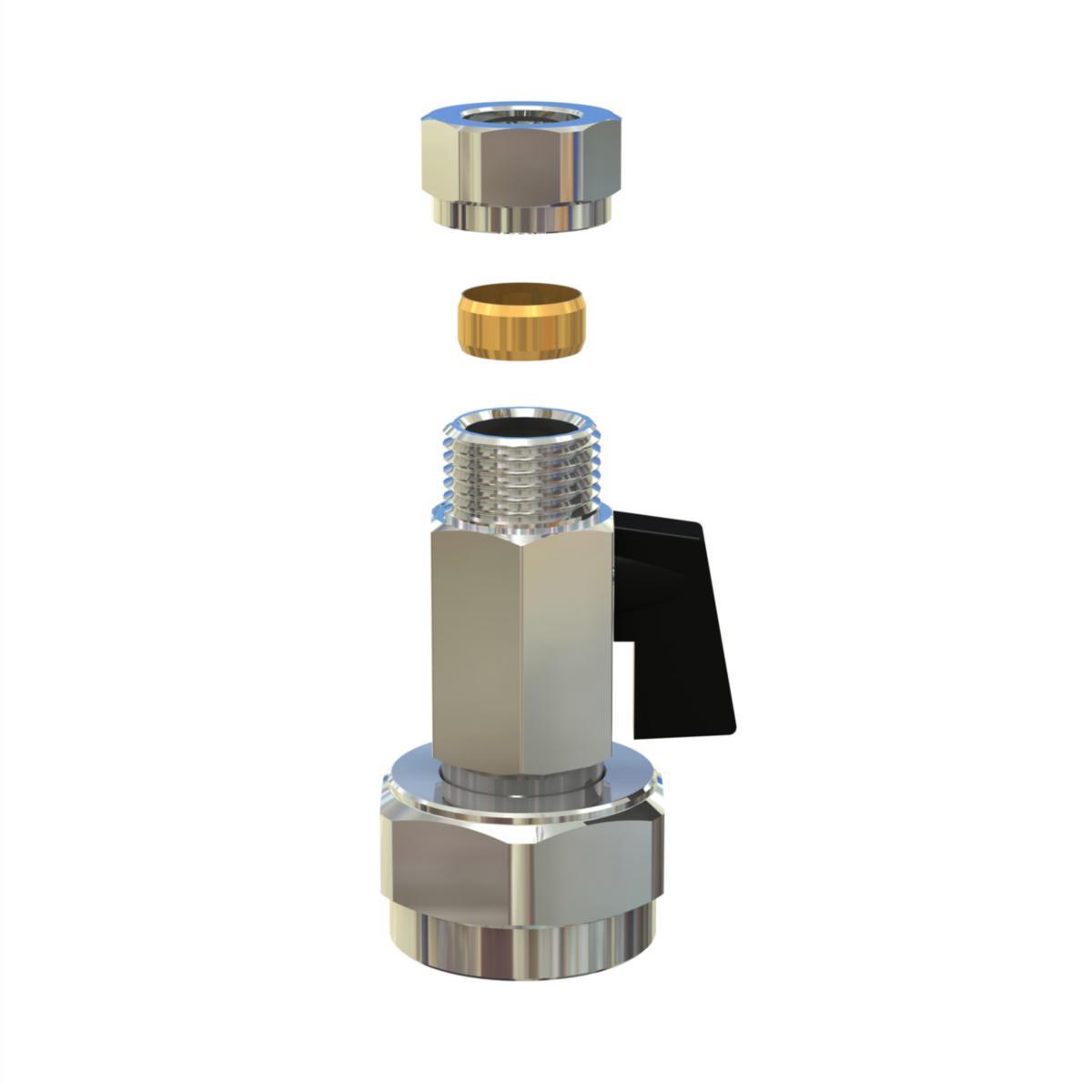

Connections S1 Notap, SPX
NOTAP CONNECTED.137500S-02 0
Article number: Suppl. article no:
5085599
TI137500S-02
to see price and stock
Connectors S1 Notap, SPX
- Article number: 5085599
- Suppl. article no: TI137500S-02
- Material class PLD190
Technical data
- Connection 1: Internal thread cylindrical BSPP-G (ISO 228-1)
- Connection 2: Compression ring
- Nominal diameter connection 1: 1 inch (25)
- Nominal diameter connection 2: 1/2 inch (15)
- FM quality mark: No
- Shape: Straight
- Reducing: Yes
- LPCB quality mark: No
- Length: 82 mm
- Material connection 2: Brass
- Material connection 1: Brass
- Material sealing: Other
- Material quality connection 2: Dezincification resistant brass (DZR)
- Material quality connection 1: CuZn39Pb3 (CW614N)
- Max. operating pressure at 20 °C: 16 bar
- With de-aerator: No
- With sealing rings/gaskets: Yes
- Capped: No
- Wrench width: 24 mm
- Wrench width union nut: 38 mm
- System specific: Yes
- UL quality mark: No
- ULC quality mark: No
- Surface protection connection 1: Nickel-plated
- Surface protection connection 2: Chromium-plated
- Max. medium temperature (continuous): 90 °C
- Min. medium temperature (continuous): 2 °C
- Eccentric: No
- KIWA certified: No
- Gastec QA: No
