Bahco

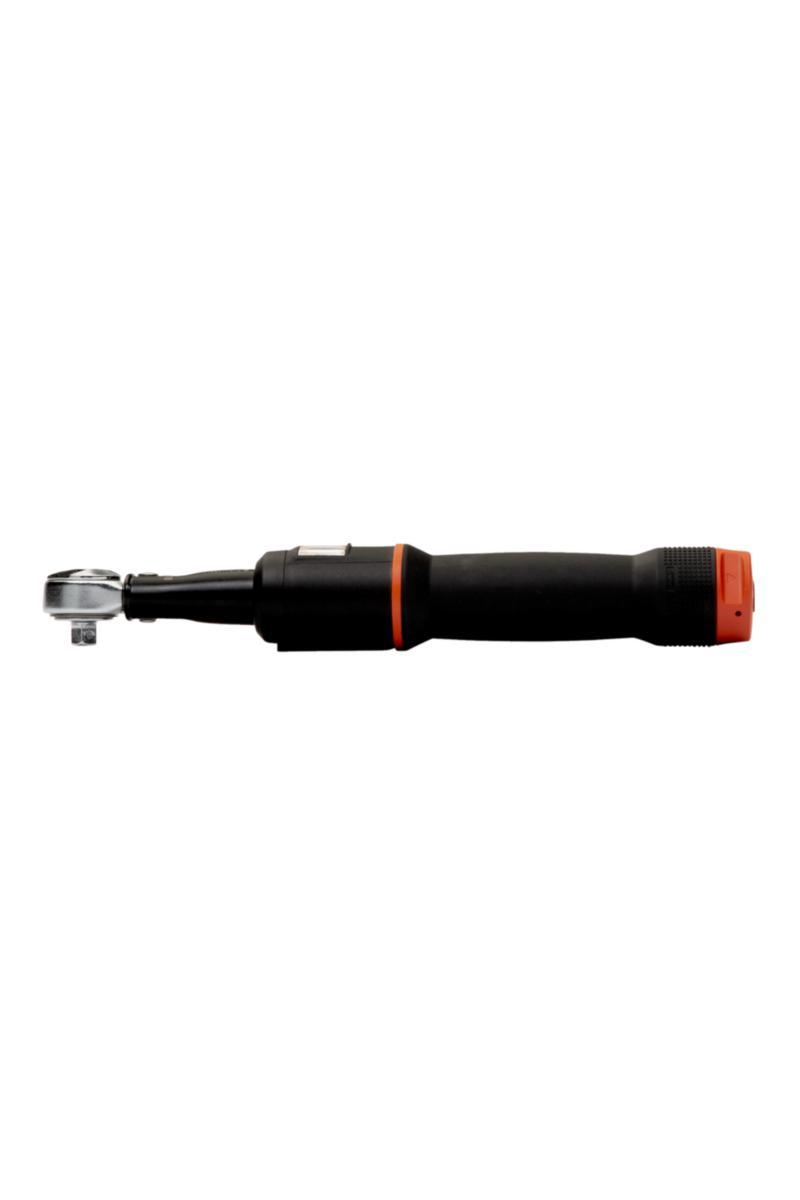

Torque Click Wrench Bahco 74WR-15 / 25

WINDOW.CLICK.WR.1/4 3-15N.M 1/4" 3-15 NM
Article number:
541974
Suppl. article no:
0415519





 to see price and stock
Mechanical adjustable torque click wrench with window and fixed ratchet head. Durable mechanism with over 100,000 cycles within accuracy. Quick scale adjustment reduces the effort required for adjustment. TIMESTRIP visual indication for recalibration of the wrench with graduations at 3, 6, 9, and 12 months. Large dual scale in Nm/in.lb. Range covers torque values from 3 to 25 Nm/27 to 220 in.lb. Can only be used clockwise. Accuracy ±3% for setting, exceeding the requirements of ISO6789-1:2017. The click system triggers a tactile and audible signal. Reversible ratchet head with 1/4-inch square drive, for clockwise use only. The center of the handle or calibration point is marked on the handle. Lock/unlock knob with blue ring inside that warns the user that the wrench is unlocked. All in a semi-transparent square tube with hanger with euro hole. All wrenches are delivered with a factory declaration of conformity traceable to international standards. ISO 6789. Made in the United Kingdom.
  • Article number:
    541974
  • Suppl. article no:
    0415519
  • Ean no:
    7314150415519
  • Material class
    TF190B
Technical data
  • Square peg: 1/4"
  • Tightening moment: 3-15 Nm
  • Total length: 221 mm
  • Weight: 300 g
