End sleeve tool, 18mm
END-SLEEVE TOOL PEB0110T18
Article number: Suppl. article no:
1663991
5114-509400
to see price and stock

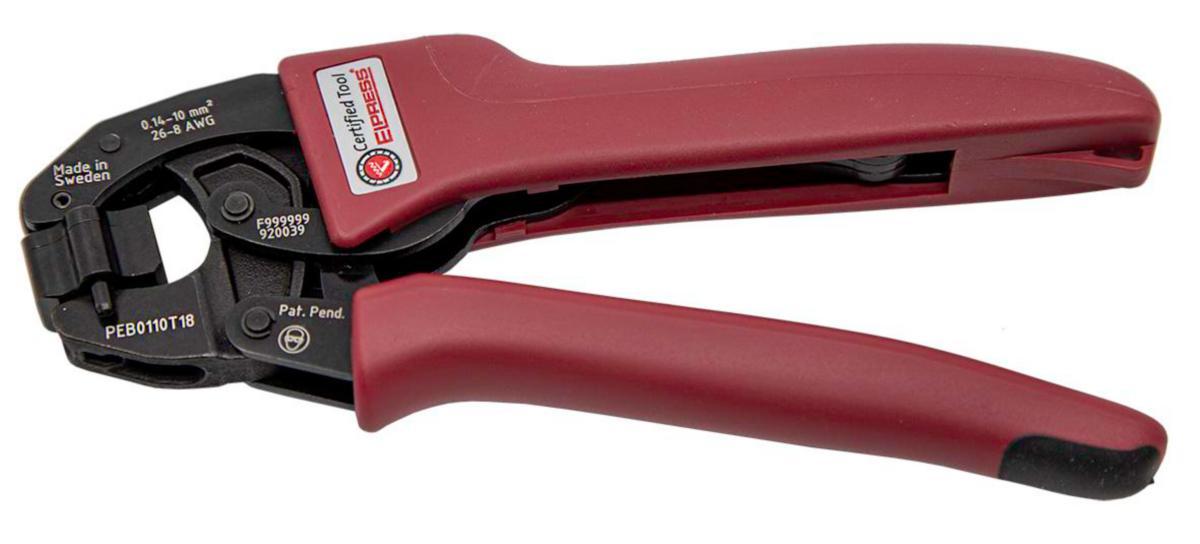

End sleeve tool, self-adjusting 0.14-10mm², for long sleeves up to 18mm. PEB0110T18 for end sleeves has a compact, self-adjusting mechanism that ensures quality. Through the long slope, the pliers are able to push end caps up to 18mm. The pliers are light and compact and have a front feed that provides good accessibility in confined spaces
- Article number: 1663991
- Suppl. article no: 5114-509400
- Ean no: 7393487085206
- Replaces art.nbr: 1630046
- Material class QB871B
Technical data
- Cross section: 0.14-10 mm²
- Suitable for: Cable end sleeves
- Compression shape: Trapezoid compression
- Cycle time: 10-20 s
- With locking device (for mechanical tools): Yes
- Construction/operation: Mechanical
- With automatic return: No
- AWG-range: 8-26
- Inserts exchangeable: No
- Number of included inserts: 0
- Length: 18 mm
- REACH Date: 2021-06-30
- REACH Information obligation: No
