Armacell

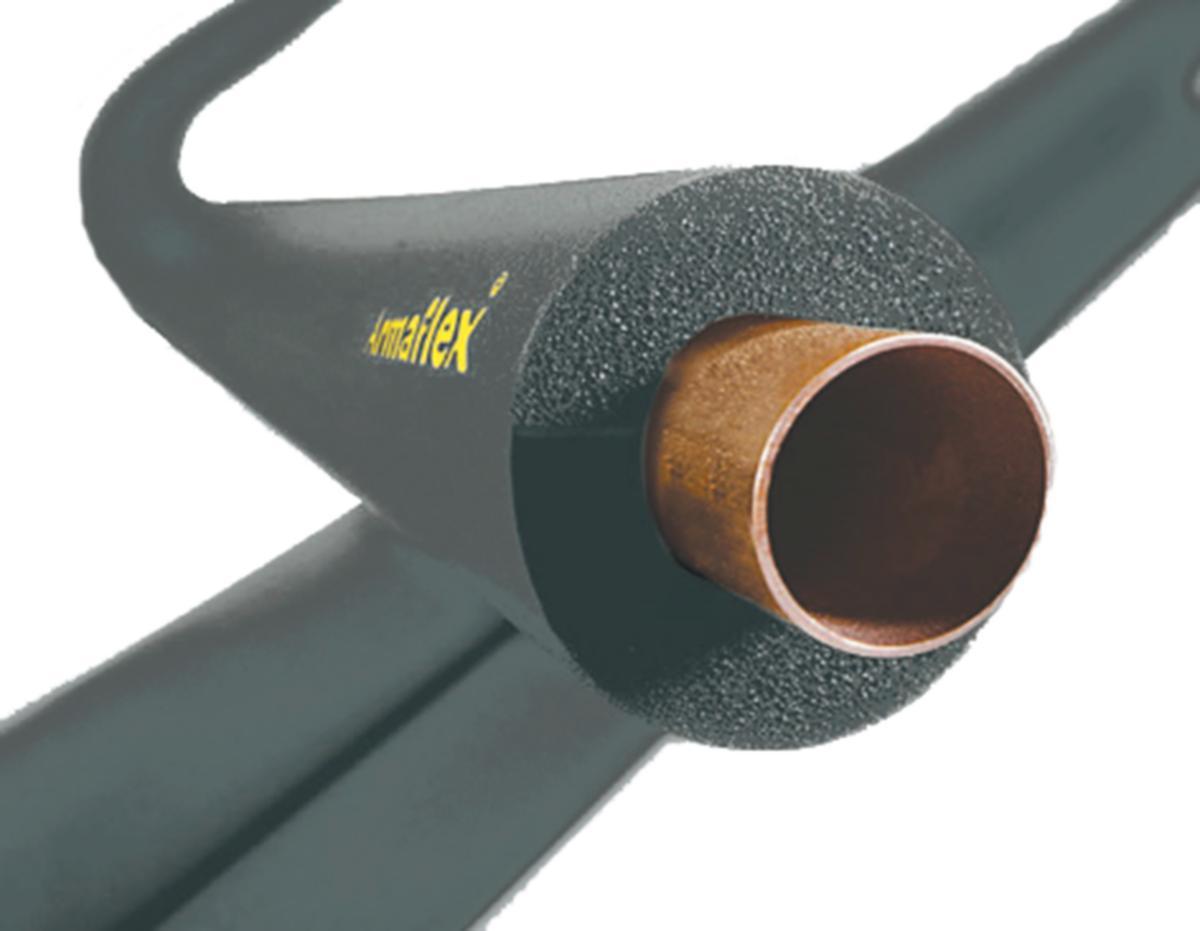

Cell Rubber Insulation AF/Armaflex AF-1, Hose 9mm (tolerance ± 1.0mm)
AF/ARMAFLEX AF-1-006 2M/PCS PIPE INSULATION
Article number:
43801006
to see price and stock
Insulation for pipes, ventilation ducts in cooling and climate control installations, as well as for installations where saving energy and preventing condensation are required.
Flexible insulating material with closed cells. Base made of synthetic rubber (elastomer). High water vapour passage resistance µ>10000. High heat insulation capacity lambda. < 0.033 W/mK guaranteed technical quality on the basis of externally monitored values. Temperature range -50°C - +110 °C. Type approval 03391/82: Fire classification BLS3-D0 (Y outer layer class II). Type approval 3176/83: Pipe bushings. Length tolerance ± 1,5%.
Flexible insulating material with closed cells. Base made of synthetic rubber (elastomer). High water vapour passage resistance µ>10000. High heat insulation capacity lambda. < 0.033 W/mK guaranteed technical quality on the basis of externally monitored values. Temperature range -50°C - +110 °C. Type approval 03391/82: Fire classification BLS3-D0 (Y outer layer class II). Type approval 3176/83: Pipe bushings. Length tolerance ± 1,5%.
- Article number: 43801006
- Material class POG20A
Technical data
- Packagin Size: 2 M/360 M/1080 M
- Pipe diameter: 6 mm
- Thickness: 7 mm
- Length: 2000 mm
- Outer diameter: 22 mm
- Design: Unglued
- Manufacturer designation: AF-1-006
