Ejot

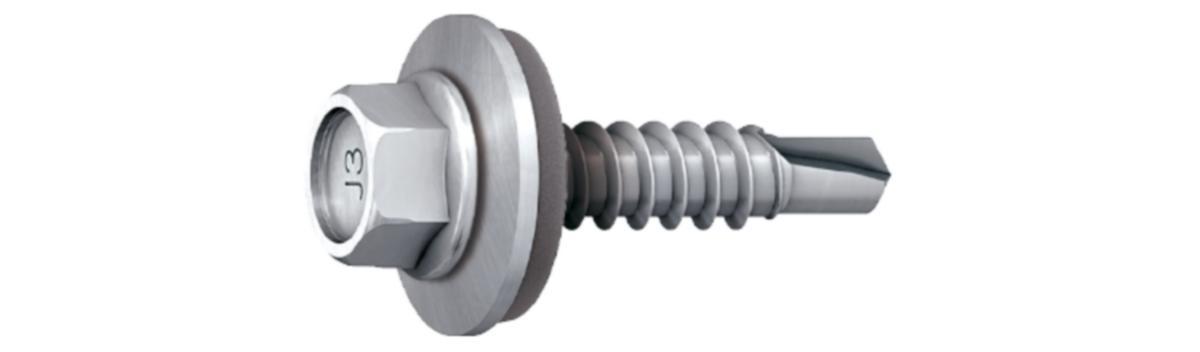

Construction screw Super-SAPHIR® JT3 for side overlap
Screw 5.5X25 A2 HEX w/gasket 2mm over Ejot Super-Saphir JT3
Article number: Suppl. article no:
260725
850015
to see price and stock
Drilling and thread-pressing screw for external installation of building plate against different types of surfaces. SUPER-SAPHIR is unique with its hardened steel drill tip, homogeneously joined by the stainless steel screw stem. This makes it possible to combine the requirements for stainless steel for outdoor environment and fast efficient assembly without pre-drilling. Design: Hexagon head with flange. Articulated washer (Ø16mm) with seal of EPDM rubber. Other: Rpm about 1600 rpm.
- Article number: 260725
- Suppl. article no: 850015
- Ean no: 7319618500158
- Material class TD325A
Technical data
- Designation: JT3
- Diameter: 5.5 mm
- Length: 25 mm
- Wrench width: 8 mm
- Drill capacity: 1-2 h
- Information: Wash diameter: E14/3
- Clamp length: 7 mm
- Normed tensile breaking power: T10
- Material: Stainless steel
- Surface treatment: Stainless A2
- Material: Authentic stainless steel SS2332 for outdoor use, corrosiveness class C5
- Corrosion class according to EN ISO 9223: C5
- Deviating material in drill tip: Yes
