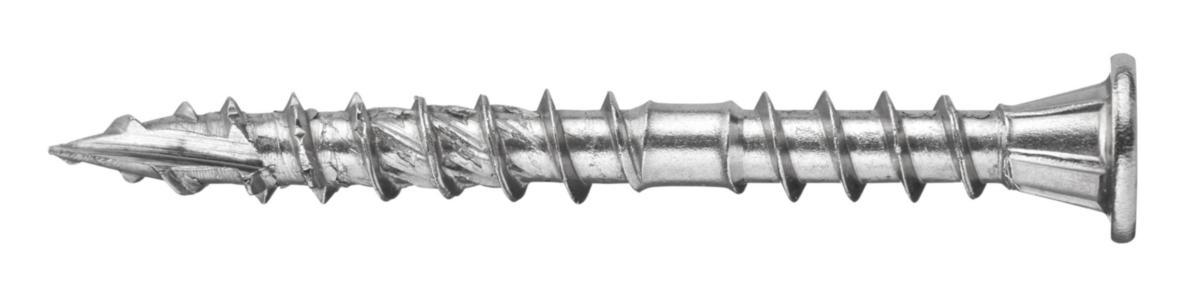

Panel screw (A4 acid-resistant) for wooden stud
PANELSCREW JETTING 5x48 A4 STA 200/BOX A4 STAINLESS
Article number: Suppl. article no:
70250127
684800
to see price and stock




Patented design with a sharp tip and threads adapted for anchoring in wood. The threads grip immediately and pull the screw into the panel. The threads under the head secure the panel, while the grooves under the head countersink the screw. Suitable for mounting panels, fences, etc. The screw meets the requirements of AMA Hus 21 HSD.16 regarding panel mounting. The screw's unique driving properties have been achieved by equipping the screw with a cutting drill tip, as well as angled and longitudinal cuts between the threads.
- Article number: 70250127
- Suppl. article no: 684800
- Ean no: 7393940037698
- Material class TD4200
Technical data
- Packagin Size: 1 Pack/12 Pack
- Material: Stainless steel
- Head form: Flat head
- Diameter: 5 mm
- Length: 48 mm
- Thread length: 26 mm
- Screwing system: Torx
- Thread type: Double
- Tip shape: Pointed
- Hardened: No
- Countersunk head: Yes
- Surface protection: Untreated
- With anti-stick coating: No
- With milling grooves under head: Yes
- Tip with milling ribs: Yes
- REACH Date: 2023-06-20
- GWP-tot (A1-A3): 5,6843 kgCO2e/pack
- REACH Information obligation: No
