FIXX
Wing Dril FIXX

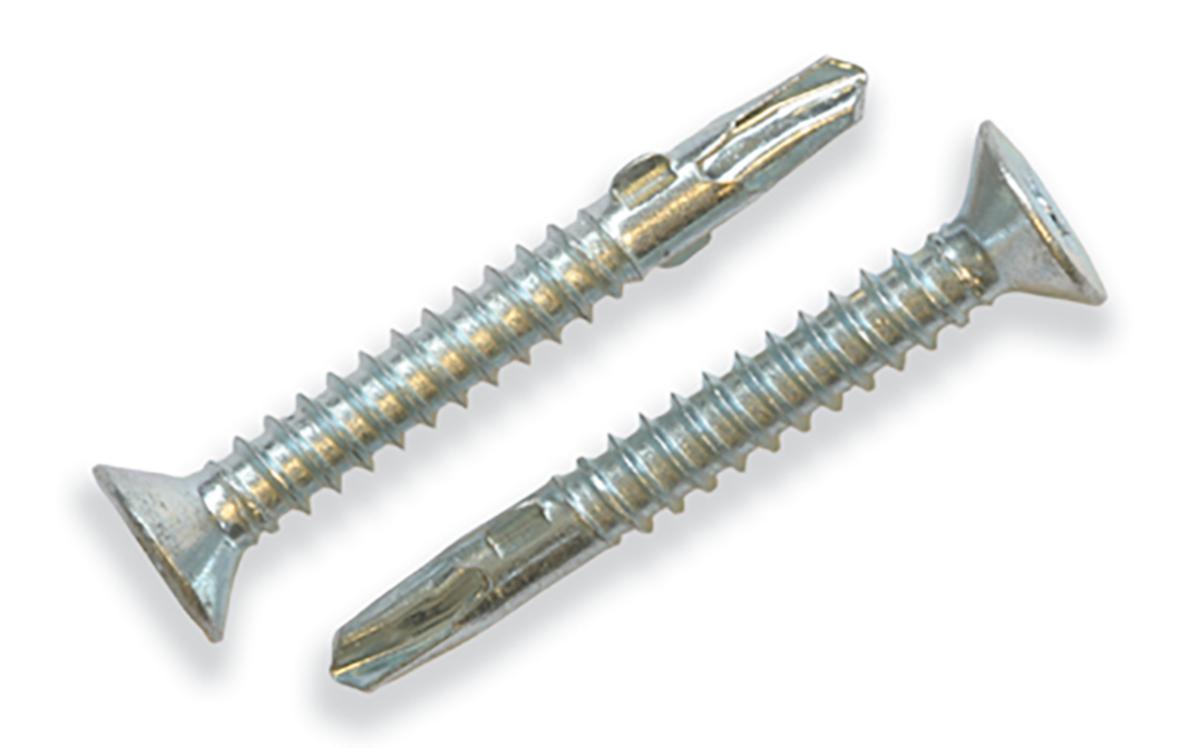

Screw Wing Drill 4.8X50 ZPL CH TX 2.5-3.7mm FIXX 200
Article number: Suppl. article no:
1531718
1531718
to see price and stock
Area of application: Friction-drilling and thread-tightening screw, intended for attaching or joining soft materials to metal. For example: wood, plywood, particleboard to steel fasteners. Drill bit with cutter wings. Wing Dril, mills, drills, threads, and plunges in a single operation. Cutter wings hold up a clearance hole in the soft material. The wings are then broken off against the steel material and a strong thread is formed. Other: Recessed head with grooves. Speed 1600 rpm.
- Article number: 1531718
- Suppl. article no: 1531718
- Ean no: 7333123000637
- Material class TD308A
Technical data
- Packagin Size: 1 FRP/49 FRP
- Diameter: 4.8 mm
- Length: 50 mm
- Fixx-pack: PA 6
- Head diameter: 9.5 mm
- Drill capacity: 2.5-3.7 mm
- Max mounting thickness: 33 mm
- Bit size: 25
- Screwing system: Torx (TX)
- Type of hardening: Case hardening
- Head form: Other
- Corrosion class according to EN ISO 9223: C1
- Surface protection: Galvanic/electrolytic zinc plated
- Countersunk head: Yes
- Material: Steel
