WaStop®

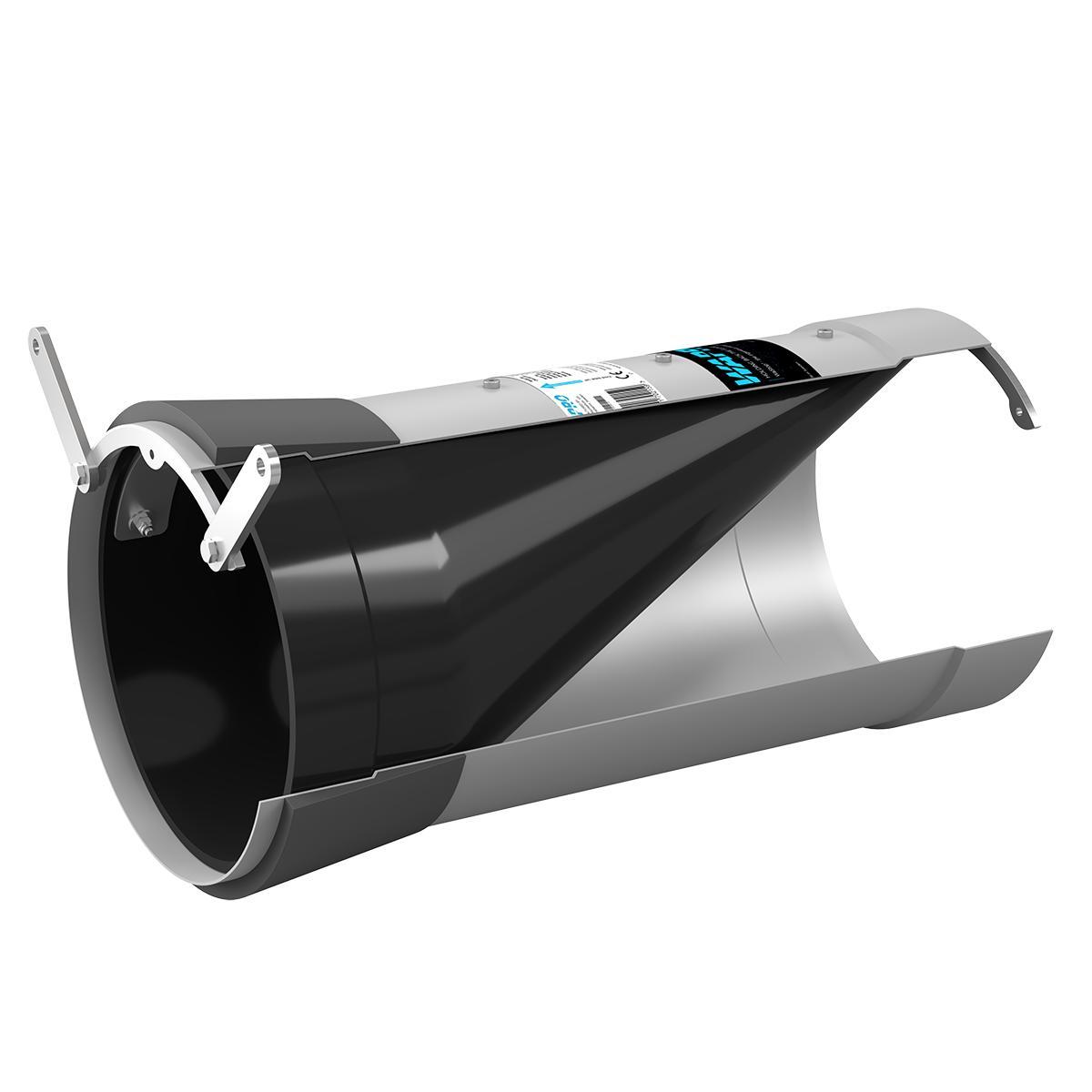

WaStop membrane backflow valve, stainless
DN150 WASTOP MEMBR CHECK VALVE INTERNAL ASSEMBLY 146-159MM
Article number: Suppl. article no:
4560995
WS146-S3-316
to see price and stock

WaStop® is a revolutionary patented and certified check valve that installs in minutes in a pipe or drain. It can be installed horizontally or vertically in an intake or outlet. WaStop® is installed to prevent backflow. The flow in the main flow direction creates pressure against the membrane, which causes the membrane to open exactly as much as needed to allow the flow to pass unhindered. In case of backflow, the membrane fills with water or gas, acting as a plug in the pipe. WaStop® blocks all backflow in the pipe or drain. The WaStop® check valve can be configured to handle up to 12 metres back pressure.
- Article number: 4560995
- Suppl. article no: WS146-S3-316
- Material class PMF300
Technical data
- Outer pipe diameter all connections: 144.5 mm
- Housing material: Stainless steel
- Material quality: Stainless steel 316 L (1.4404)
- Valve shape: Membrane flap
- Nominal diameter: DN 150
- Sealing: Ethylene-propylene diene monomer rubber (EPDM)
- Opening pressure valve cone: 17.5 mbar
- Surface protection: Untreated
- FM quality mark: No
- LPCB quality mark: No
- UL quality mark: No
- ULC quality mark: No
- Model: Straight
- KIWA certified: Yes
- Kvs value: 2112.91
- Low noise: Yes
- Suitable for central heating water: No
- Type approval according to BBR/EKS: No
- VdS quality mark: No
- Zeta value: 2.95
- With balance weight: No
- With lock spring: No
- REACH Date: 2017-11-29
- Dimension: 146-159 mm
- Suitable for drinkable water: No
- REACH Information obligation: No
