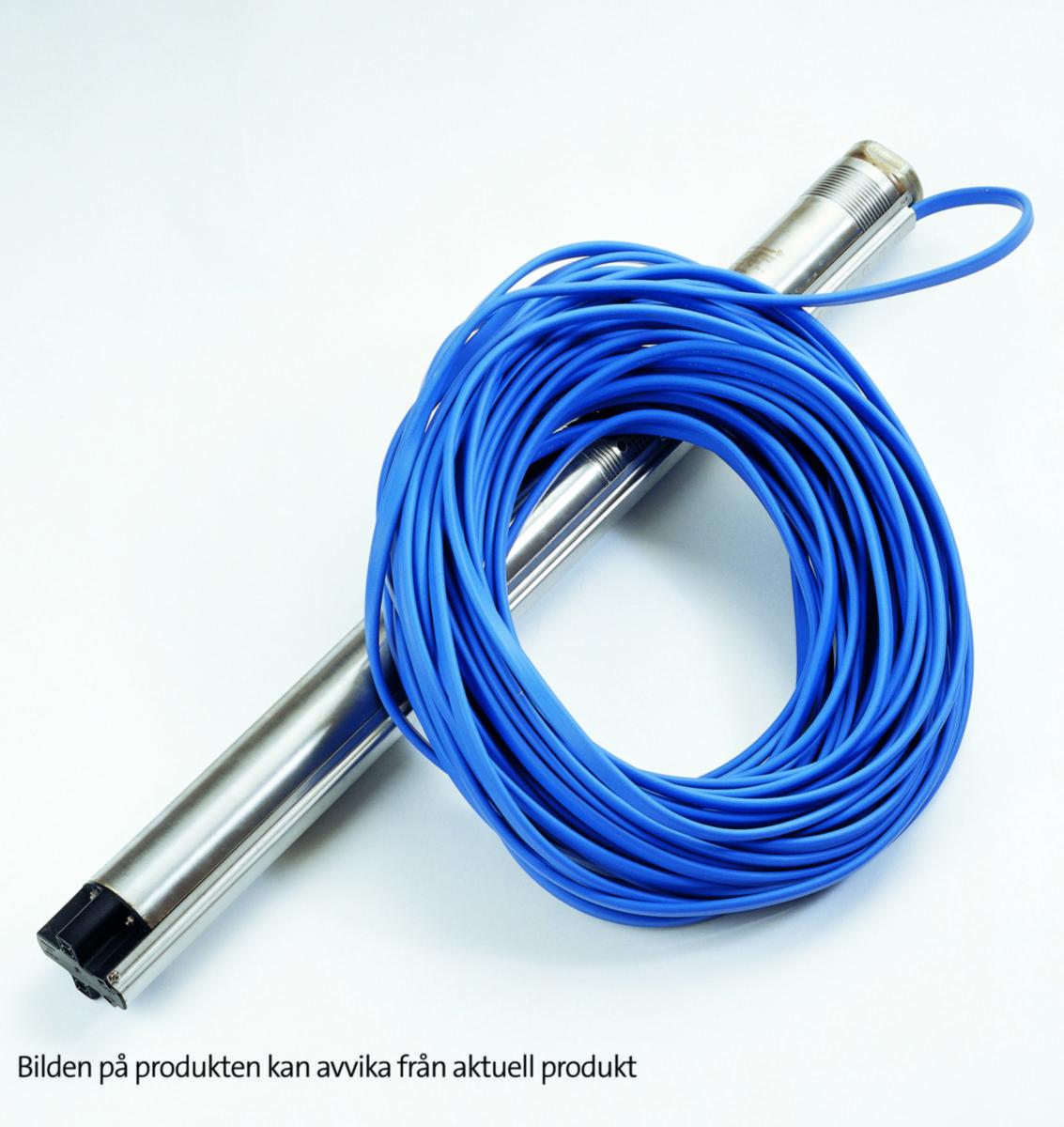

Borehole Pump SQE2 Package, Grundfos
SQE 2-70 1.15KW 200-240V0-240 PUMP PACKAGE CABLE 60 M
Article number: Suppl. article no:
5853144
99047422
to see price and stock
SQE deep well pumps are one of the most advanced deep well pump solutions. Equipped with a permanent magnet motor and a built-in frequency converter, the SQE allows for performance adjustment through communication with an external control unit, achieving maximum comfort in the form of consistent water pressure in the system.
With the help of the built-in frequency converter, the SQE provides constant water pressure regardless of the number of open taps. This increases the living comfort for the household. The pump starts smoothly, which reduces wear on the pump and the risk of water hammer in the pipes, thereby extending the lifespan of the SQE pump and the system.
Upgradeable to a constant pressure solution (supplement with 5830075 or 5853926).
With the help of the built-in frequency converter, the SQE provides constant water pressure regardless of the number of open taps. This increases the living comfort for the household. The pump starts smoothly, which reduces wear on the pump and the risk of water hammer in the pipes, thereby extending the lifespan of the SQE pump and the system.
Upgradeable to a constant pressure solution (supplement with 5830075 or 5853926).
- Article number: 5853144
- Suppl. article no: 99047422
- Replaces art.nbr: 5853088
- Material class PHA121
Technical data
- Packagin Size: 1 ST/5 ST/20 ST
- Frequency: 50/60 Hz
- Motor power output (P2) per motor: 1.15 kW
- Degree of protection (IP): IP68
- Insulation class according to IEC: F
- Nominal current: 8.4 A
- Pump and motor length: 768 mm
- Pump diameter: 74 mm
- Electrical connection: Cable
- Rotational speed: 10700 Rpm
- Connection outlet side: Internal thread cylindrical BSPP-G (ISO 228-1)
- Nominal diameter connection outlet side: 1 1/4 inch (32)
- Cable length: 60 m
- Material pump casing: Stainless steel
- Material quality pump casing: Stainless steel 304 (1.4301)
- Rated voltage: 230 V
- Volume flow rate (BEP): 2 m³/h
- Discharge head at flow rate (BEP): 696.09 kPa
- REACH Date: 2021-10-13
- REACH Information obligation: No
