Water meter bracket, LK

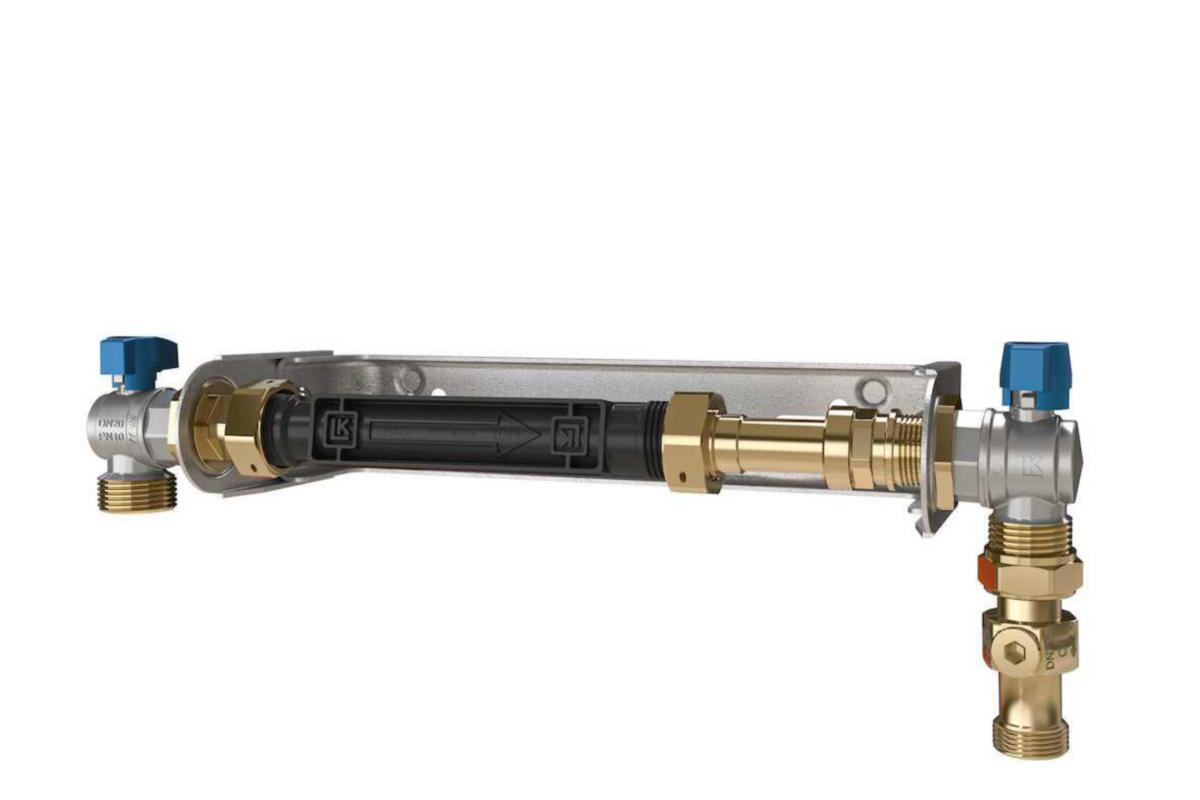

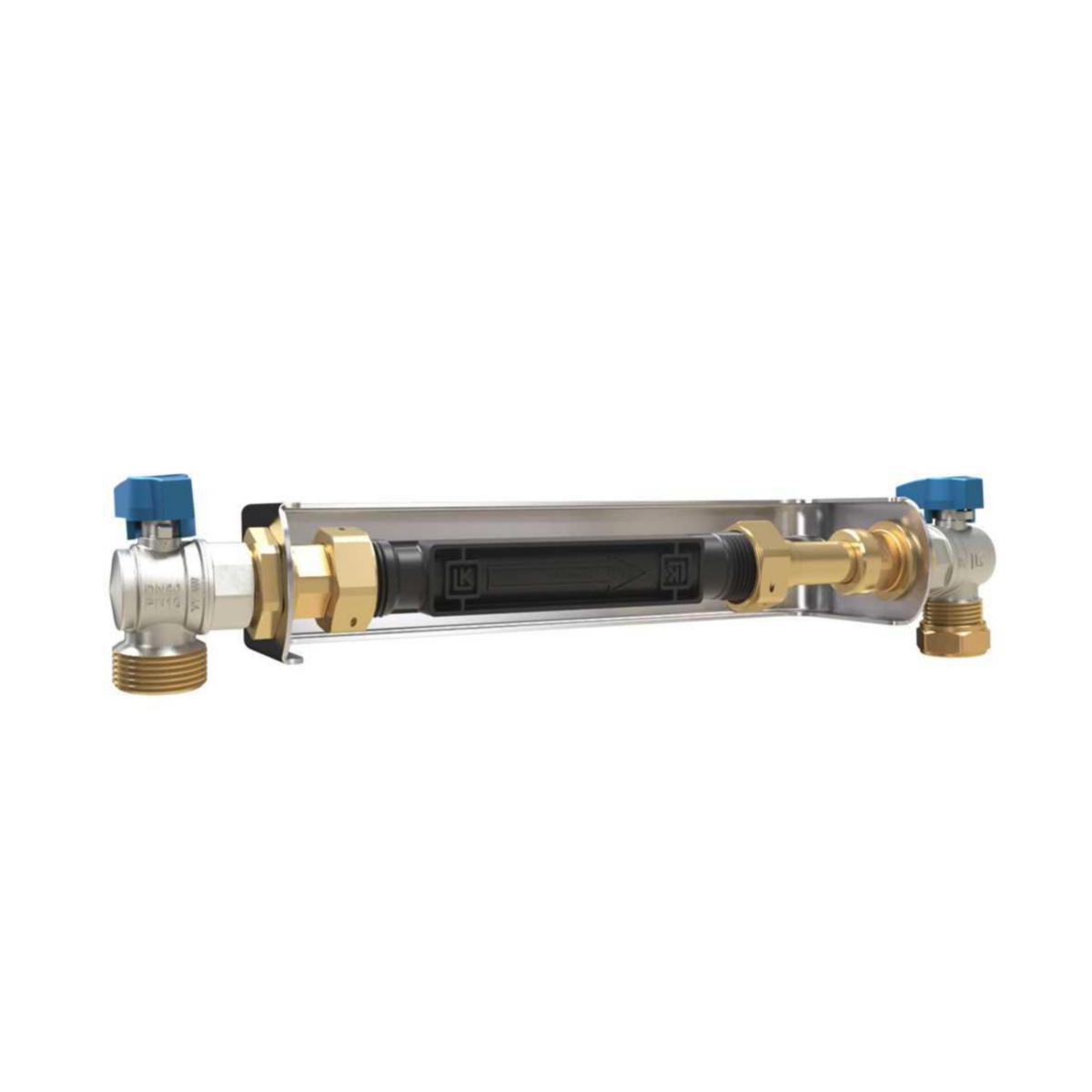

WATER METER CONSOLE 190-220MM WITH VALVES
Article number: Suppl. article no:
4648113
4648113
to see price and stock
![Denna produkt innehåller ett eller flera ämnen på kandidatförteckningen. Denna produkt innehåller ett eller flera ämnen på kandidatförteckningen.](/globalassets/site-images/sv_icons/step/reachinformationrequestobligation.png)
- Article number: 4648113
- Suppl. article no: 4648113
- Ean no: 7331590062349
- Replaces art.nbr: 1882359 5208113
- Material class PIU130
Technical data
- Connection 1: External thread
- Connection 2: Compression ring
- Nominal diameter connection 1: 1 inch (25)
- Mounting direction: Horizontal and vertical
- Nominal diameter connection 2: Other
- Suitable for number of water meters: 1
- Height: 70 mm
- Suitable for water meter length: 190-220 mm
- Material bracket: Stainless steel
- Model water meter: Qn 2.5
- Length: 425 mm
- Material valve: Dezincification resistant brass (DZR)
- With shut-off valve: Yes
- Surface protection bracket: Untreated
- Type of shut-off valve: Ball valves
- Lockable: No
- Outer pipe diameter connection 2: 22 mm
- Size of gland nut thread connection: 3/4 inch (20)
- Depth: 89 mm
- REACH contains candidate substances: Bly
- REACH Date: 2022-11-28
- REACH Information obligation: Yes
