Danfoss

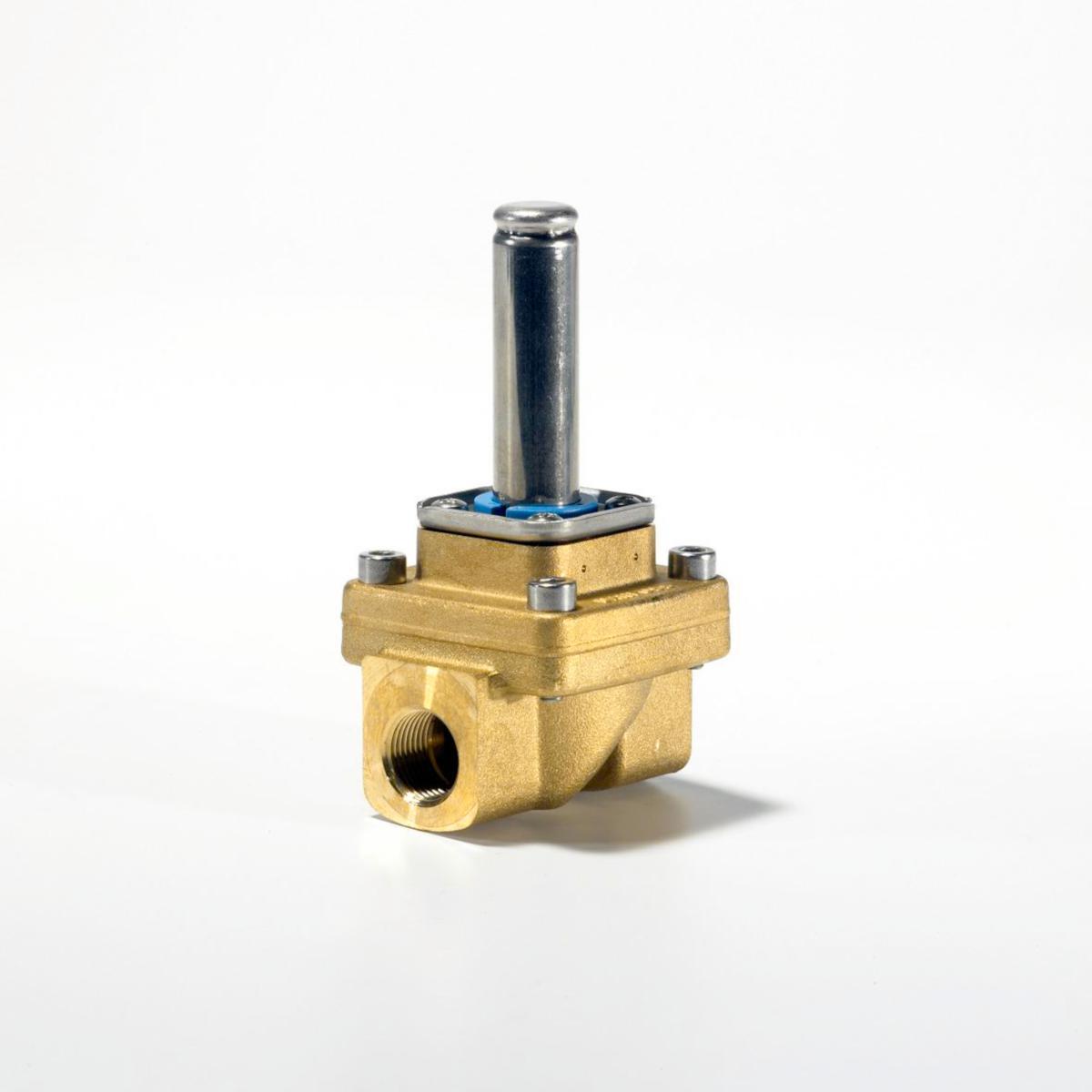

Solenoid valve EV250BW, NC, Danfoss
VALVE EV250BW 12BE G 12E NC000 DANFOSS NC UTAN SPOLE EPDM
Article number: Suppl. article no:
4894253
132U2452
to see price and stock
Danfoss solenoid valve EV250BW 10-22, powerless Closed NC, EPDM diaphragm. Valve body in eco-brass. Drinking water approved DWGW 4MS KTW and W270, RiSE certified. Media temp 0 - 90 ° C. Pressure min 0 kPa, max 1000 kPa.
- Article number: 4894253
- Suppl. article no: 132U2452
- Ean no: 5702428544153
- Material class PIM120
Technical data
- Packagin Size: 1 ST/24 ST
- Connection 1: Internal thread cylindrical BSPP-G (ISO 228-1)
- Connection 2: Internal thread cylindrical BSPP-G (ISO 228-1)
- Kvs value: 4
- Nominal diameter: DN 15
- Housing material: Brass
- Max. differential pressure water/liquids: 10 bar
- Medium temperature (continuous): 0-90 °C
- Length of connection 1: 58 mm
- Height: 103.5 mm
- Material sealing: Ethylene-propylene diene monomer rubber (EPDM)
- Material quality: Other
- Max. ambient temperature: 50 °C
- Min. pressure difference: 0 bar
- Deactivated when open: No
- Model: Straight
- Surface protection: Untreated
- REACH Date: 2021-06-21
- REACH Information obligation: No
