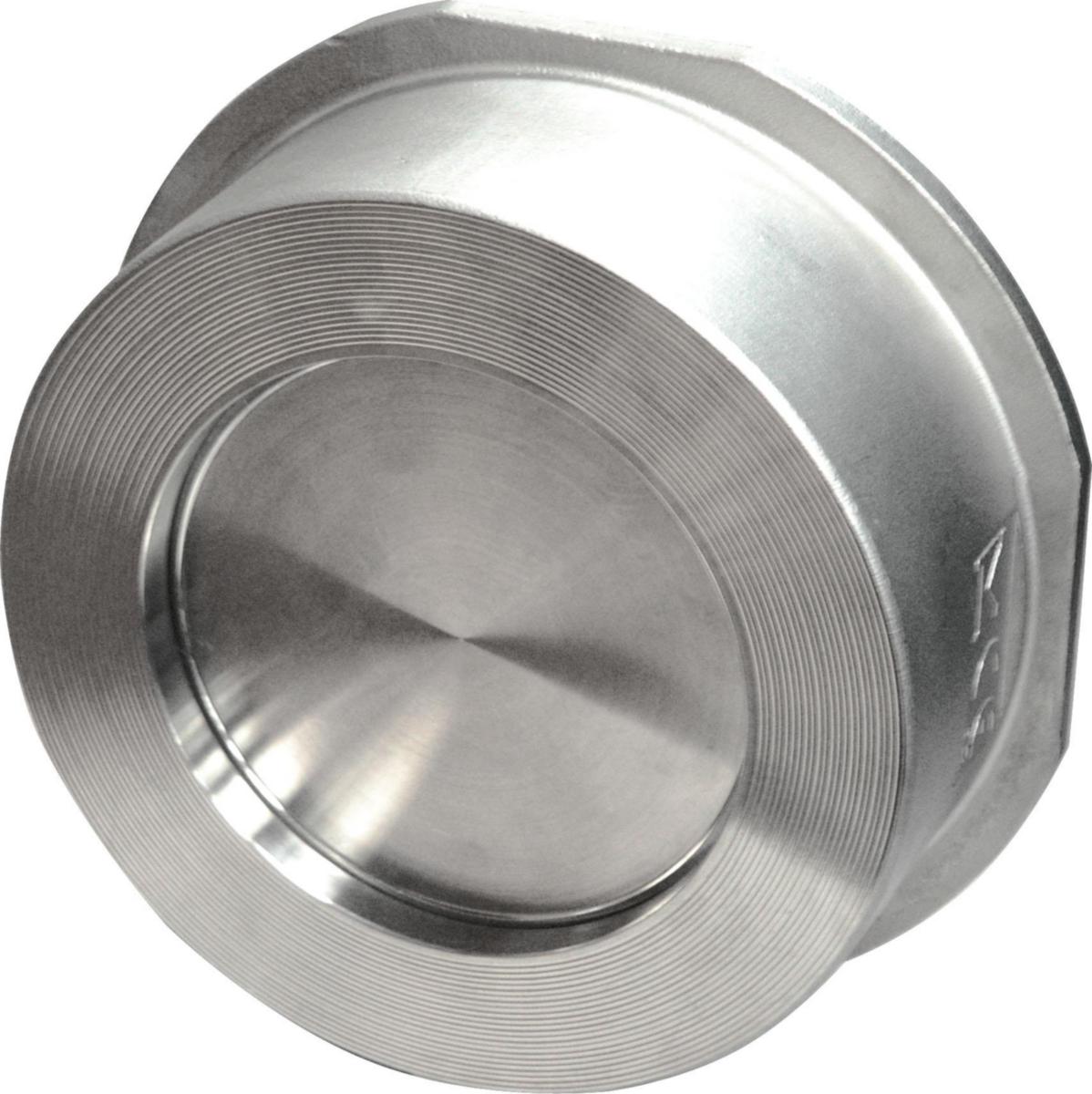

Check valve AVI 1675, a-collection
DISCO CHECK VALVE DN100 WAFER AVI 1675 1.4408 PN40
Article number:
4968469
to see price and stock
Check valve- plate model, with spring plate, metal sealing, for clamping between flanges with EN standard PN10/16/25/40.
All-purpose check valve for neutral and caustic liquids.
The valve meets the requirements for CE marking in accordance with the pressure vessel directive CE/PED 97/23/EC Category 3, Module H, CE0035.
All-purpose check valve for neutral and caustic liquids.
The valve meets the requirements for CE marking in accordance with the pressure vessel directive CE/PED 97/23/EC Category 3, Module H, CE0035.
- Article number: 4968469
- Ean no: 07350027279051
- Material class PIN010
- This is an alternative to item 77017384
Technical data
- Packagin Size: 1 ST/4 ST
- Connections: Wafer type
- Nominal diameter: DN 100
- Material quality: Stainless steel 316 (1.4401)
- With lock spring: Yes
- Medium temperature (continuous): -20-500 °C
- Article compression class: PN 40
- Sealing: Other
- Valve shape: Tilting flap
- DVGW quality mark for water: Yes
- FM quality mark: No
- Suitable for central heating water: Yes
- Low noise: Yes
- Housing material: Stainless steel
- With balance weight: No
- Model: Straight
- Standard: DIN
- Angle of non-return valve: 0 °
- Surface protection: Untreated
- Suitable for potable water: Yes
- Construction length: 60 mm
- Valve housing: 1.4408
- Design: For input voltage
- Spring: SS316
