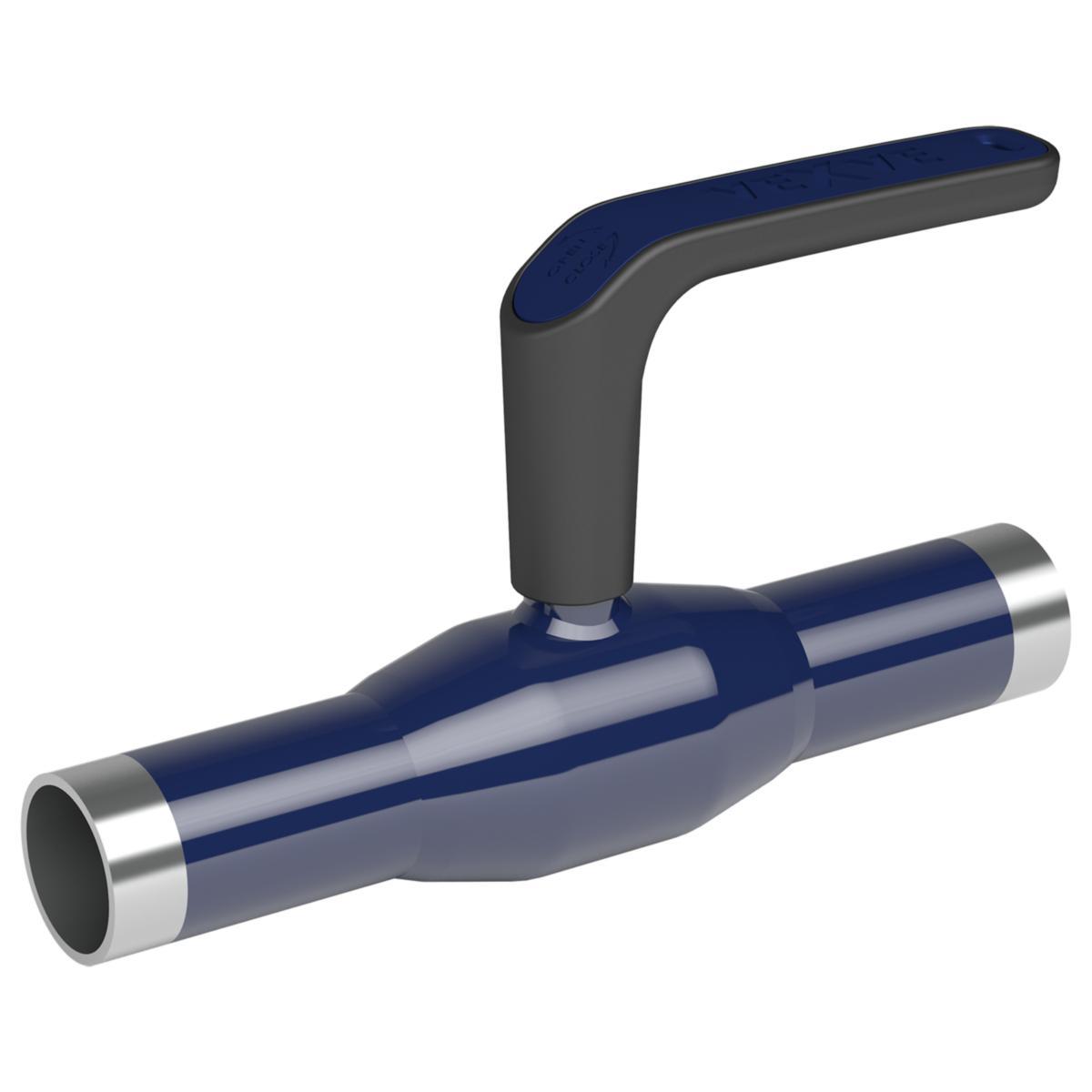

Vexve Steel Ball Valve with Welding End Reduced Bore STARK
DN40 BALL VALVE, STEEL WELDING/WELDING, STRONG
Article number: Suppl. article no:
5495306
100040X/S
to see price and stock
Steel ball valve 100X/S series, strong, X series, welding / welding, EN (DIN), DN 20-50, reduced flow.
Valve body DN 20-50 Steel, P235GH (1.0345).
Ball DN 20-50 Stainless steel, X5CrNi18-10 (1.4301).
Ball seal DN 20-50 PTFE+C.
Spindle DN 20-50 Stainless steel, X8CrNiS18-9 (1.4305).
Spindle seal DN 20-50 FPM.
Operation DN 20-50 with composite handle.
Valve body DN 20-50 Steel, P235GH (1.0345).
Ball DN 20-50 Stainless steel, X5CrNi18-10 (1.4301).
Ball seal DN 20-50 PTFE+C.
Spindle DN 20-50 Stainless steel, X8CrNiS18-9 (1.4305).
Spindle seal DN 20-50 FPM.
Operation DN 20-50 with composite handle.
- Article number: 5495306
- Suppl. article no: 100040X/S
- Ean no: 6430079560206
- Replaces art.nbr: 4511641
- Material class PIG130
Technical data
- Connection 1: Welded end
- Connection 2: Welded end
- Nominal diameter connection 1: DN 40
- Nominal diameter connection 2: DN 40
- Outer pipe diameter connection 1: 48.3 mm
- Outer pipe diameter connection 2: 48.3 mm
- Medium temperature (continuous): -20-200 °C
- Article compression class: PN 40
- Housing material: Steel
- Operation: Lever handle
- REACH Date: 2022-05-08
- REACH Information obligation: No
