Vexve

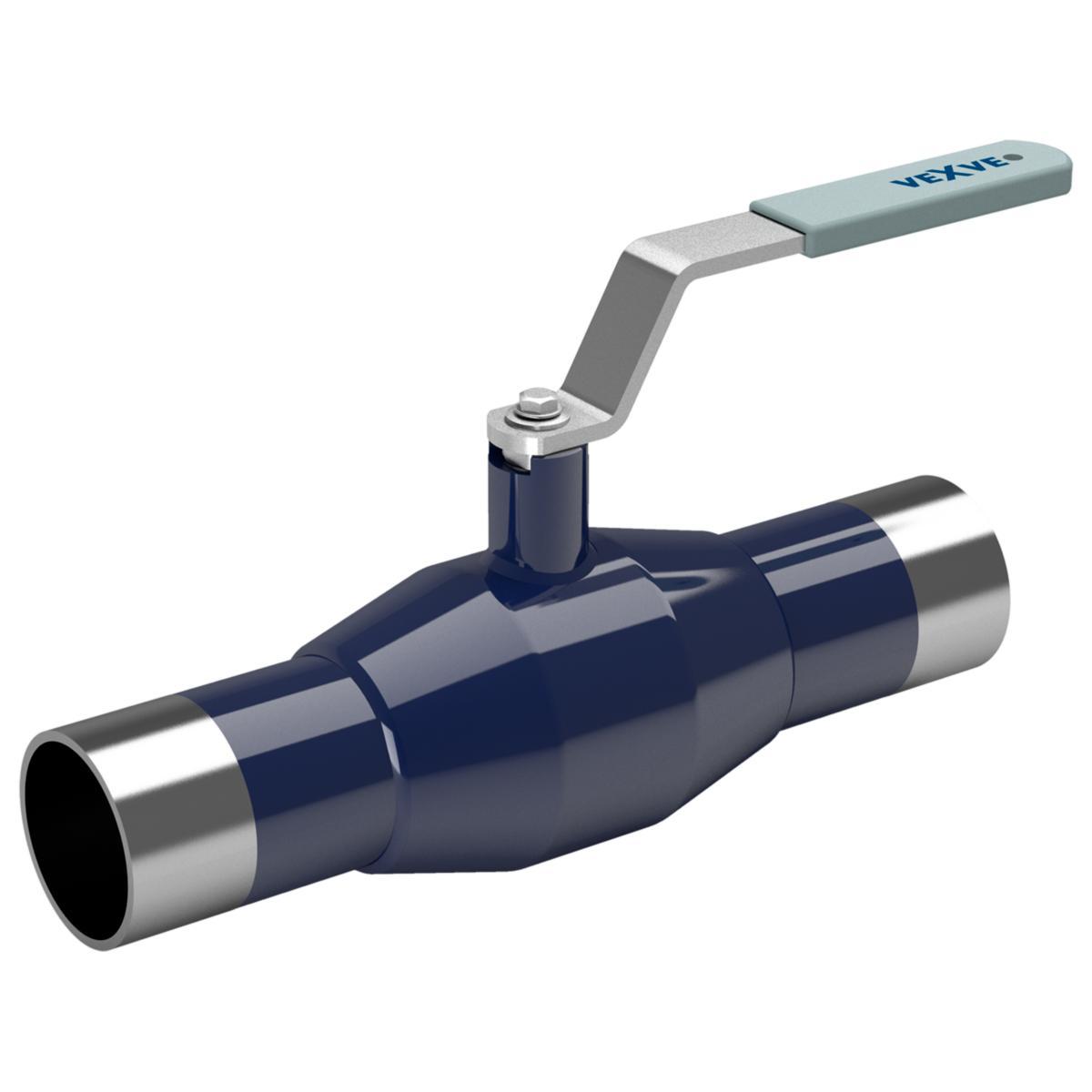

Ball valve in Steel with welded end reduced flow, Vexve
STEEL BALL VALVE REDUCED BORE DN65 WELD/WELD PN25
Article number: Suppl. article no:
4500268
100065
to see price and stock
Ball valve with steel welding end. Blue PN25 to PN40.
Valve body DN 10-250 Steel, P235GH (1.0345).
Ball DN 10-250 Stainless steel, X5CrNi18-10 (1.4301).
Ball seal DN 10-250 PTFE+C.
Spindle DN 10-250 Stainless steel, X8CrNiS18-9 (1.4305).
Spindle seal DN 10-250 FPM.
Operation DN 10-50 With handle in composite material.
Operation DN 65-250 With handle in galvanized steel.
Valve body DN 10-250 Steel, P235GH (1.0345).
Ball DN 10-250 Stainless steel, X5CrNi18-10 (1.4301).
Ball seal DN 10-250 PTFE+C.
Spindle DN 10-250 Stainless steel, X8CrNiS18-9 (1.4305).
Spindle seal DN 10-250 FPM.
Operation DN 10-50 With handle in composite material.
Operation DN 65-250 With handle in galvanized steel.
- Article number: 4500268
- Suppl. article no: 100065
- Ean no: 6415837552143
- Material class PIG130
- This is an alternative to item 4511705
Technical data
- Packagin Size: 1 ST/9 ST
- Connection 1: Welded end
- Connection 2: Welded end
- Nominal diameter connection 1: DN 65
- Nominal diameter connection 2: DN 65
- Outer pipe diameter connection 1: 76.1 mm
- Outer pipe diameter connection 2: 76.1 mm
- Medium temperature (continuous): -30 - +200 °C
- Article compression class: PN 25
- Housing material: Steel
- Operation: Lever handle
- Material ball: Stainless steel
- Material primary spindle seal: Polytetrafluoroethylene (PTFE)
- Material secondary spindle seal: Fluorelastomer rubber (FPM/FKM)
- Spindle seal: FPM
- Ball seat: Graphitised PTFE
- Handles: Galvanised steel
- Housing: Steel EN10217-2 P235GH (1.0345)
- Spindle: Stainless steel, ENX8CrNiS18-9 (1.4305)
- Ball: Stainless steel, ENX5CrNi18-10 (1.4301)
