Vexve

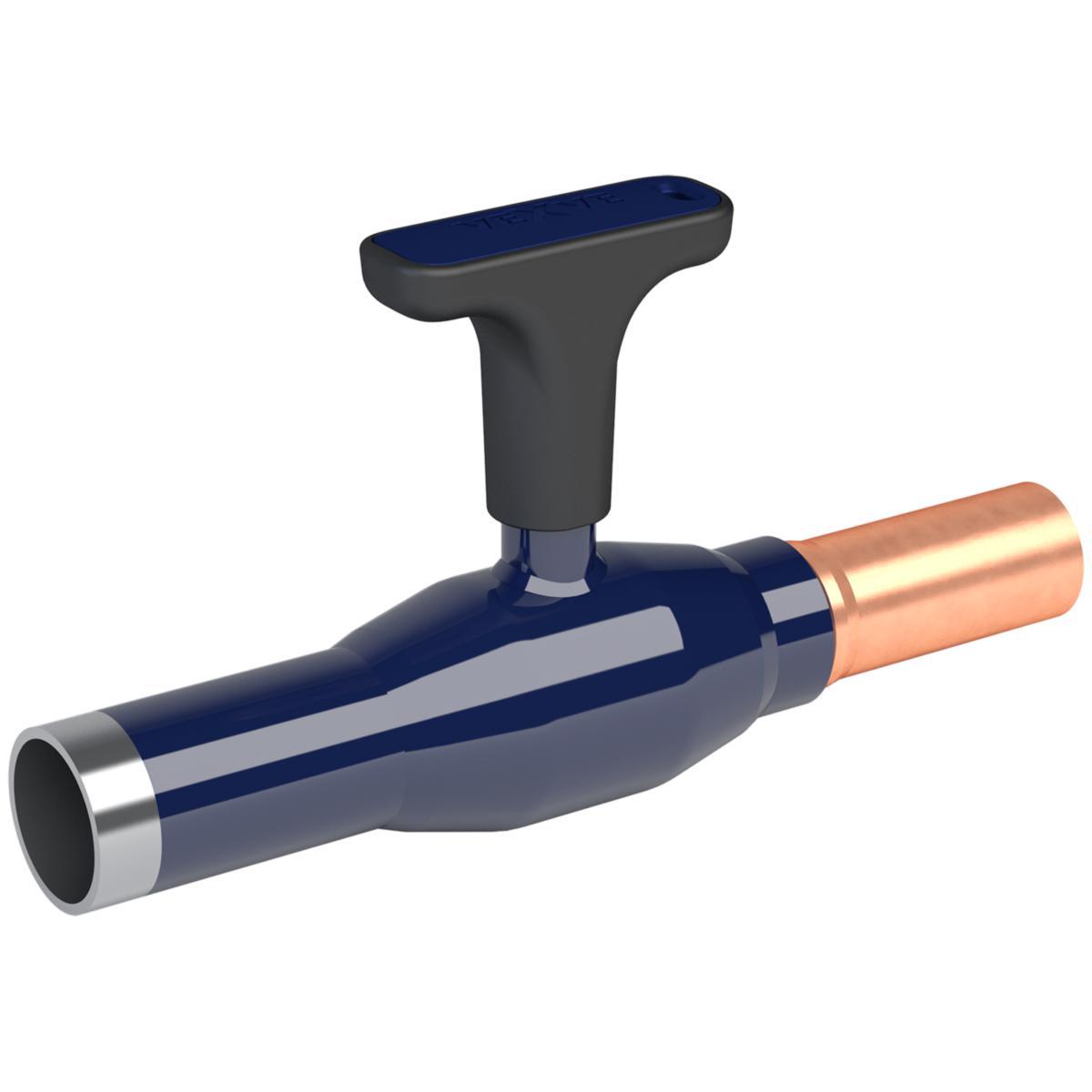

Vexve Steel Ball Valve with Welding End/CU
DN20 BALL VALVE STEELL, P235GH WELDING/COPPER
Article number: Suppl. article no:
5495429
301020X
to see price and stock
Steel ball valve 301 series, welding, EN (DIN) / copper, DN 15-50, reduced flow.
Valve body DN 15-50 Steel, P235GH (1.0345).
Ball DN 15-50 Stainless steel, X5CrNi18-10 (1.4301).
Ball seal DN 15-50 PTFE+C.
Solder connection DN 15-50 Copper, EN 1057: 2006.
Spindle DN 15-50 Stainless steel, X8CrNiS18-9 (1.4305).
Spindle seal DN 15-50 FPM.
Valve body DN 15-50 Steel, P235GH (1.0345).
Ball DN 15-50 Stainless steel, X5CrNi18-10 (1.4301).
Ball seal DN 15-50 PTFE+C.
Solder connection DN 15-50 Copper, EN 1057: 2006.
Spindle DN 15-50 Stainless steel, X8CrNiS18-9 (1.4305).
Spindle seal DN 15-50 FPM.
- Article number: 5495429
- Suppl. article no: 301020X
- Ean no: 6430079560527
- Replaces art.nbr: 4512147
- Material class PIG130
Technical data
- Connection 1: Welded end
- Connection 2: Soldered sleeve
- Nominal diameter connection 1: DN 20
- Nominal diameter connection 2: DN 20
- Outer pipe diameter connection 1: 26.9 mm
- Outer pipe diameter connection 2: 22 mm
- Medium temperature (continuous): -20-200 °C
- Housing material: Steel
- Flange compression class: PN 40
- Operation: Lever handle
- REACH Date: 2022-05-08
- REACH Information obligation: No
