Vexve

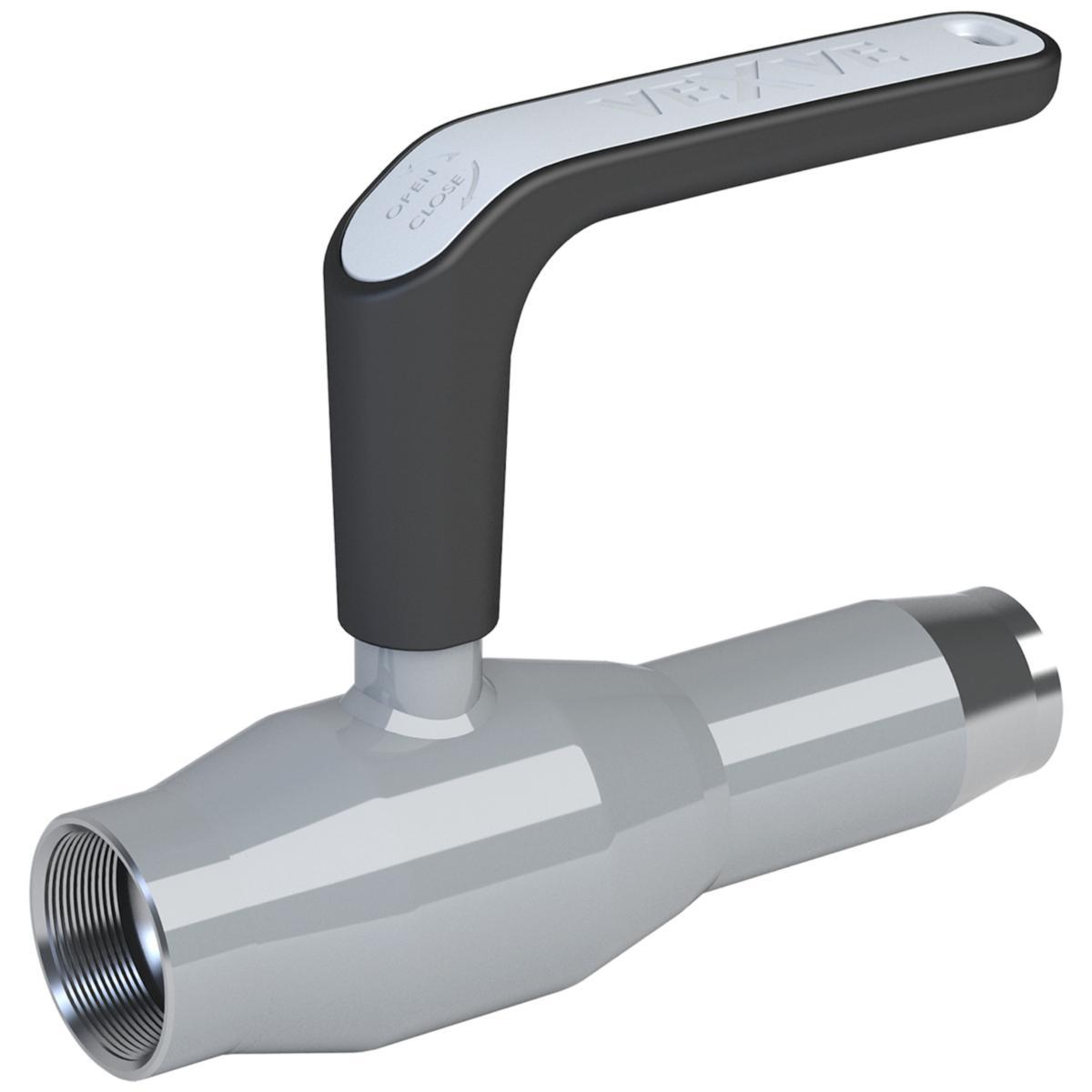

Fully welded ball valve, Vexve Series 231XMM, stainless steel, with weld end/internal thread, reduced flow design
STAINLESS STEEL BALL VALVE DN20 PN40 INNER THREAD/WELDING
Article number: Suppl. article no:
5495298
231020X/MM
to see price and stock
Vexve X stainless steel ball valves are designed for optimal shut-off in building heating and cooling systems
- Article number: 5495298
- Suppl. article no: 231020X/MM
- Replaces art.nbr: 4517237
- Material class PIF110
Technical data
- Connection 1: Internal thread cylindrical BSPP-G (ISO 228-1)
- Connection 2: Welded end
- Medium temperature (continuous): -20-200 °C
- Nominal diameter connection 1: 3/4 inch (20)
- Nominal diameter connection 2: DN 20
- Outer pipe diameter connection 2: 25 mm
- Article compression class: PN 40
- Housing material: Stainless steel
- Operation: Lever handle
- REACH Date: 2022-01-25
- REACH Information obligation: No
