Vexve

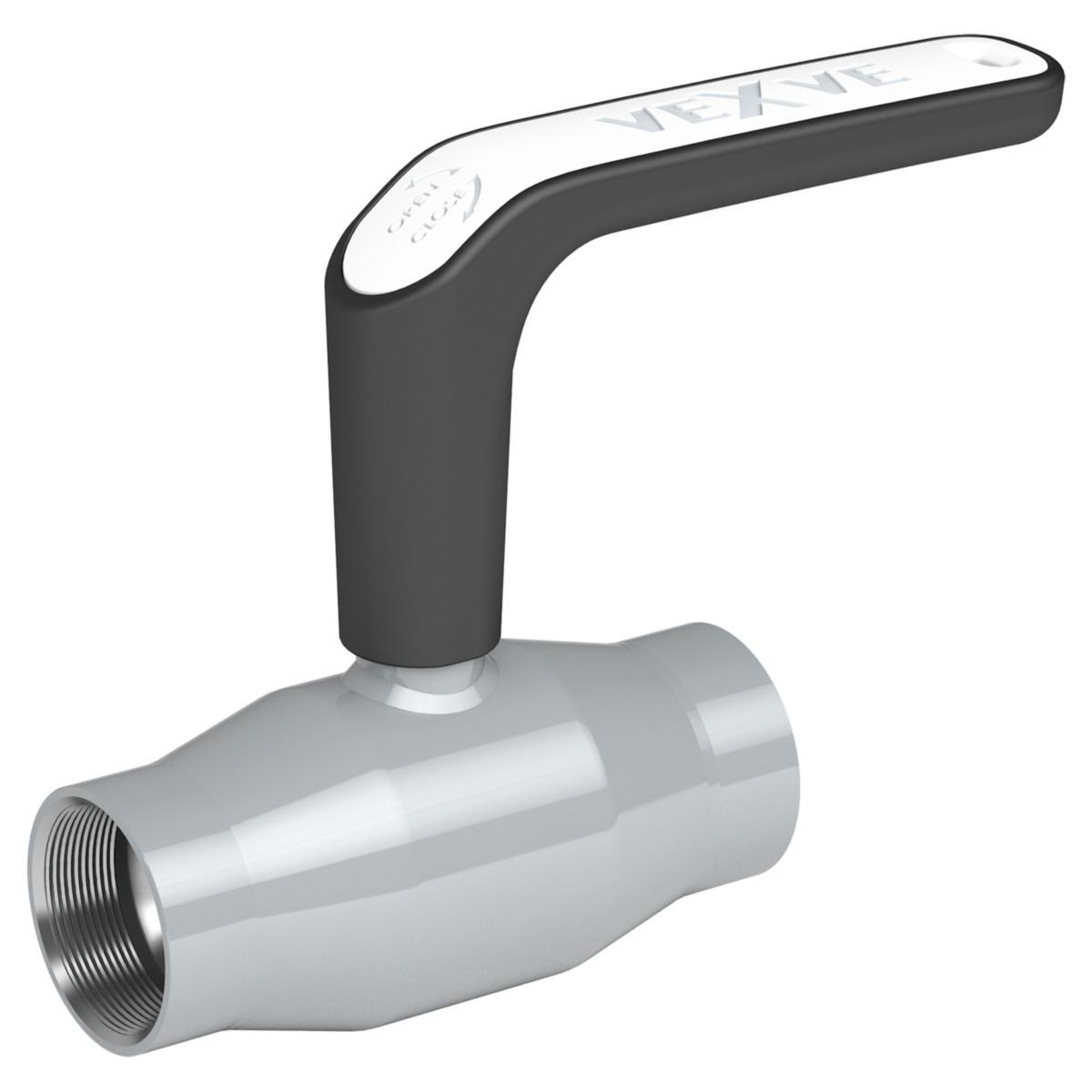

Fully welded ball valve, Vexve Series 232X, stainless steel, with internal thread, reduced flow design
STAINLESS STEEL BALL VALVE DN25 PN40 INNER THREAD/ INNER
Article number: Suppl. article no:
5495227
232025X
to see price and stock
Vexve X stainless steel ball valves are designed for optimal shut-off in building heating and cooling systems
- Article number: 5495227
- Suppl. article no: 232025X
- Ean no: 6415837651914
- Replaces art.nbr: 4513180
- Material class PIF110
Technical data
- Connection 1: Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)
- Connection 2: Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)
- Medium temperature (continuous): -30-200 °C
- Nominal diameter connection 1: 1 inch (25)
- Nominal diameter connection 2: 1 inch (25)
- Article compression class: PN 40
- Grease-free: No
- Full bore: No
- Housing construction: 1-part
- Material ball: Stainless steel
- Material spindle: Stainless steel
- With drain valve: No
- Model: Straight
- Housing material: Stainless steel
- Material quality: Stainless steel 316 L (1.4404)
- Material ball seal: Other
- Operation: Lever handle
- Handgrip length: 130 mm
- Handle height: 102 mm
- Material primary spindle seal: Fluorelastomer rubber (FPM/FKM)
- Material secondary spindle seal: NBR (nitrile rubber)
- With drain possibility (connection): No
- Medically clean: No
- With non-return valve: No
- With filter: No
- With insulation shell: No
- With thermometer: No
- Surface protection housing: Primer
- Surface protection ball: Chromium-plated
- REACH Date: 2022-03-29
- REACH Information obligation: No
