Vexve

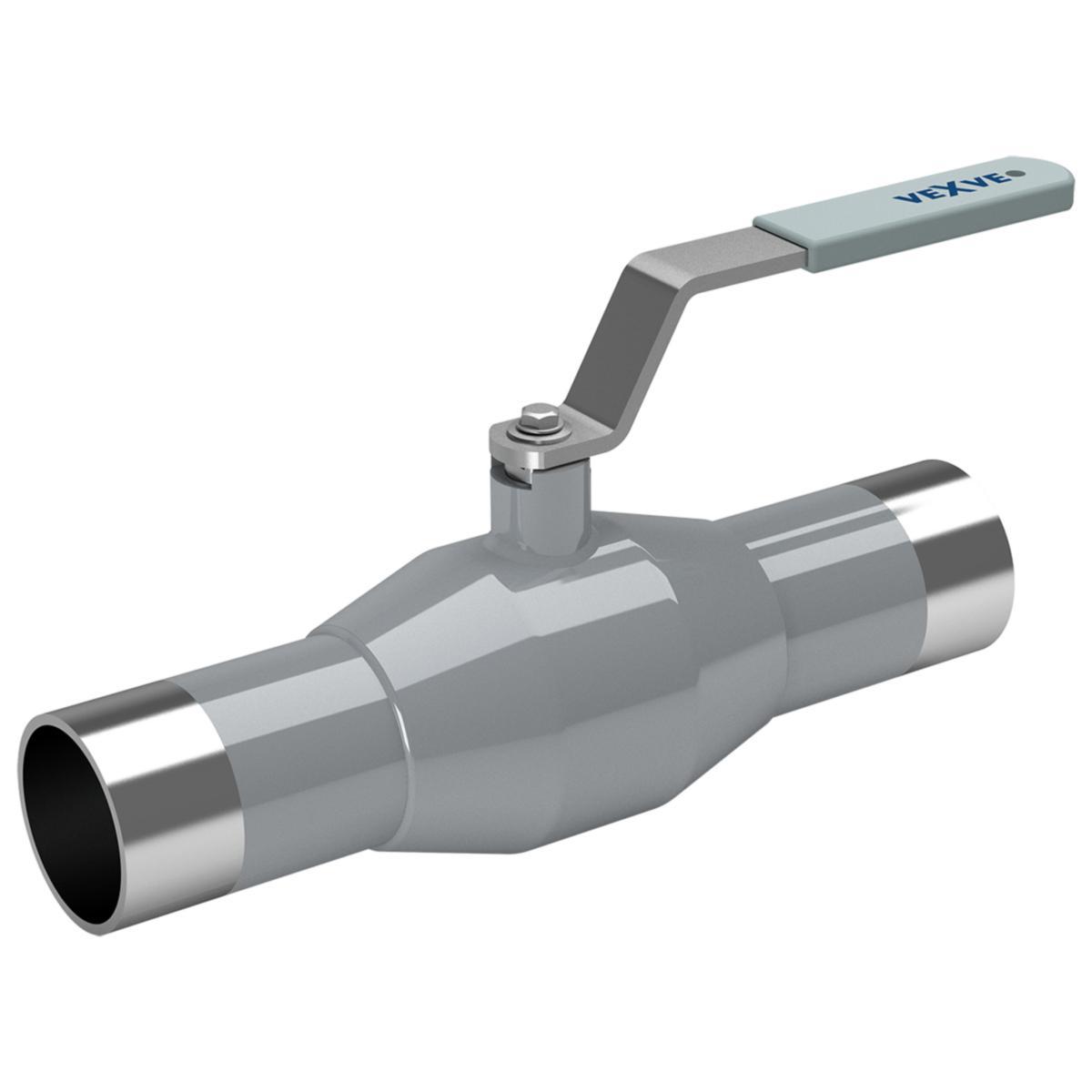

Fully welded ball valve, Vexve Series 230, stainless steel with weld ends, reduced flow design
STAINLESS STEEL BALL VALVE DN80 WELD/WELD PN25
Article number: Suppl. article no:
4500353V
230080
to see price and stock
Vexve stainless steel ball valves are designed for optimal shut-off in building heating and cooling systems.
- Article number: 4500353V
- Suppl. article no: 230080
- Ean no: 6415837650580
- Replaces art.nbr: 4513169
- Material class PIG130
Technical data
- Packagin Size: 1 PCS/6 PCS
- Connection 1: Welded end
- Connection 2: Welded end
- Medium temperature (continuous): -20-200 °C
- Nominal diameter connection 1: DN 80
- Nominal diameter connection 2: DN 80
- Outer pipe diameter connection 1: 88.9 mm
- Outer pipe diameter connection 2: 88.9 mm
- Full bore: No
- Housing material: Stainless steel
- Flange compression class: PN 25
- Operation: Lever handle
