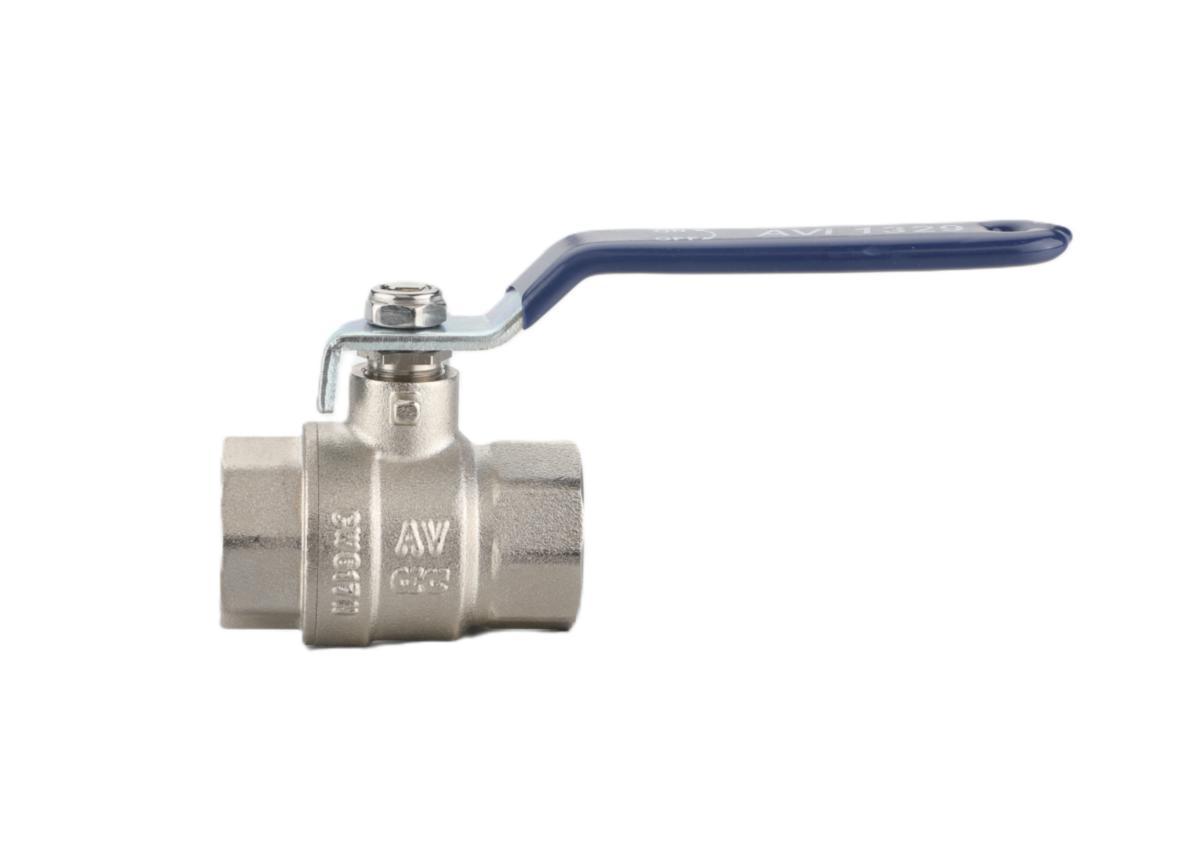

Ball Valve Avi 1329, a-collection
BALL VALVE AVI 1329 BRASS DN50 FEMALE THREAD PN25
Article number: Suppl. article no:
4505811V
05.01.2227.009
to see price and stock
For heating/cooling systems, diesel, glycol, neutral fluids, and other materials that will not attack in the valve input material. In low-lead brass CW617N, and full throughflow.
- Article number: 4505811V
- Suppl. article no: 05.01.2227.009
- Ean no: 07340080730767
- Replaces art.nbr: 4505780 4505826V
- Material class PIB030
Technical data
- Packagin Size: 1 ST/1 ST/8 ST
- Nominal diameter connection 1: 2 inch (50)
- Nominal diameter connection 2: 2 inch (50)
- Connection 1: Internal thread cylindrical BSPP-G (ISO 228-1)
- Connection 2: Internal thread cylindrical BSPP-G (ISO 228-1)
- Medium temperature (continuous): -20-170 °C
- Article compression class: PN 25
- Length: 113 mm
- Seals: Valve seat PTFE, Spindle seal HNBR
