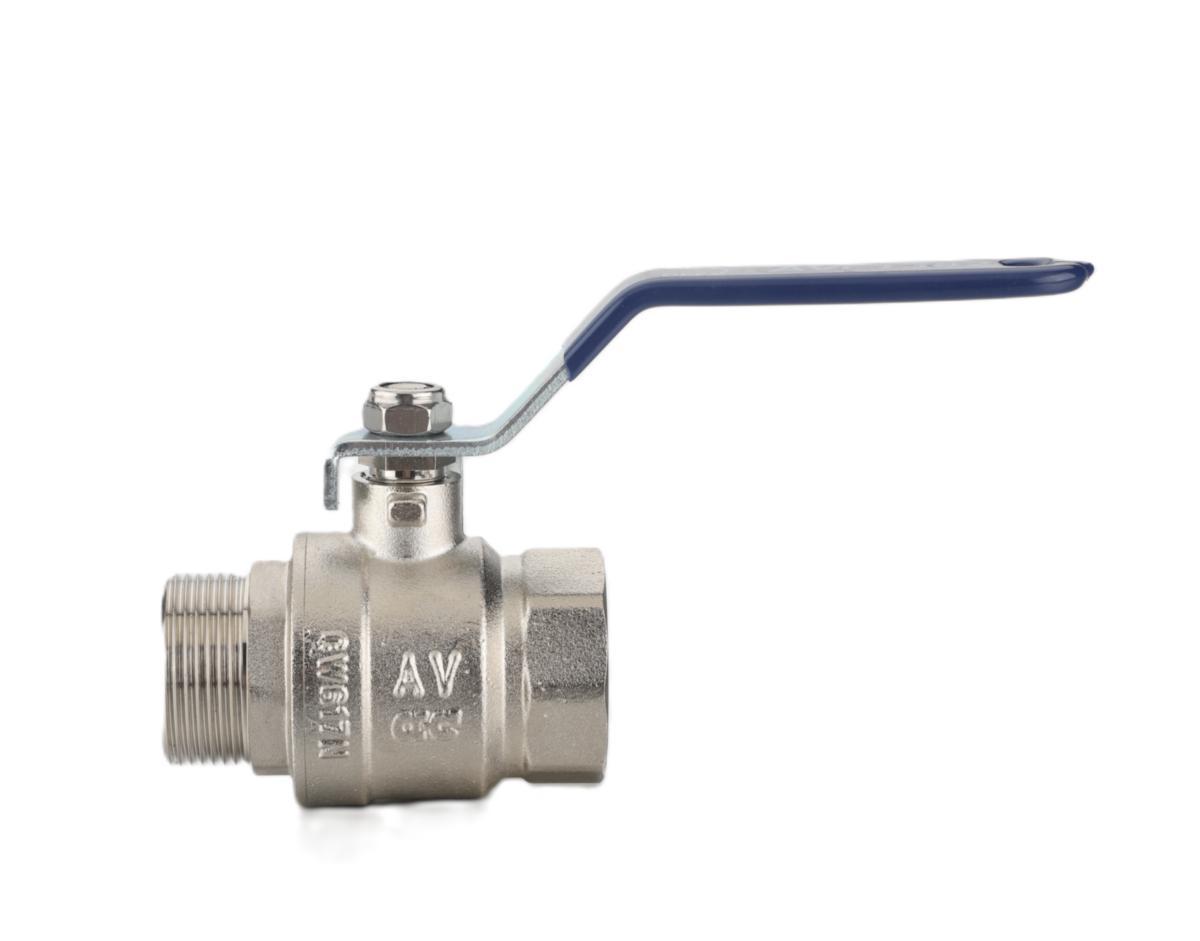

Ball Valve Avi 1382, a-collection
BALL VALVE AVI 1382 BRASS DN50 FEMALE/MALE THREAD PN25
Article number: Suppl. article no:
4502008
05.01.2225.009
to see price and stock
For heating/cooling systems, diesel, glycol, neutral fluids, and other materials that will not attack in the valve input material. In low-lead brass CW617N, and full throughflow.
- Article number: 4502008
- Suppl. article no: 05.01.2225.009
- Ean no: 07340080730637
- Material class PIB030
Technical data
- Packagin Size: 1 ST/8 ST
- Nominal diameter connection 1: 2 inch (50)
- Nominal diameter connection 2: 2 inch (50)
- Medium temperature (continuous): -20-170 °C
- Article compression class: PN 25
- Length: 121.5 mm
- Max. pressure difference at 20 °C: 25 bar
- Seals: Valve seat PTFE, Spindle seal HNBR
