Ball Valve Avi 1382, a-collection

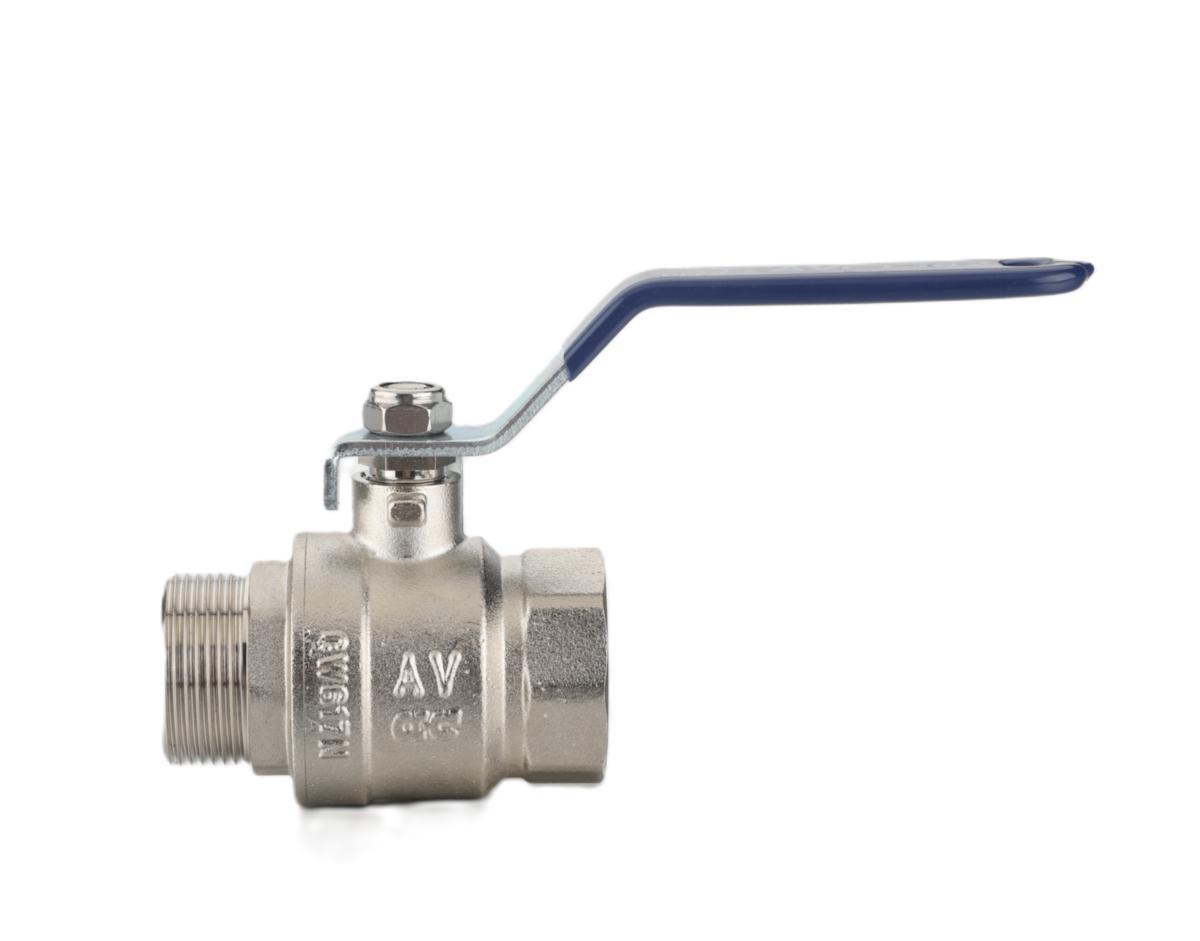

BALL VALVE AVI 1382 BRASS DN10 FEMALE/MALE THREAD PN25
Article number: Suppl. article no:
4501838V
05.01.2225.003
to see price and stock
For heating/cooling systems, diesel, glycol, neutral fluids, and other materials that will not attack in the valve input material. In low-lead brass CW617N, and full throughflow.
- Article number: 4501838V
- Suppl. article no: 05.01.2225.003
- Ean no: 07340080730576
- Replaces art.nbr: 4501814V
- Material class PIB030
Technical data
- Packagin Size: 1 ST/15 ST/120 ST
- Nominal diameter connection 1: 3/8 inch (10)
- Nominal diameter connection 2: 3/8 inch (10)
- Medium temperature (continuous): -20-170 °C
- Article compression class: PN 25
- Length: 48.5 mm
- Max. pressure difference at 20 °C: 25 bar
- Seals: Valve seat PTFE, Spindle seal HNBR
