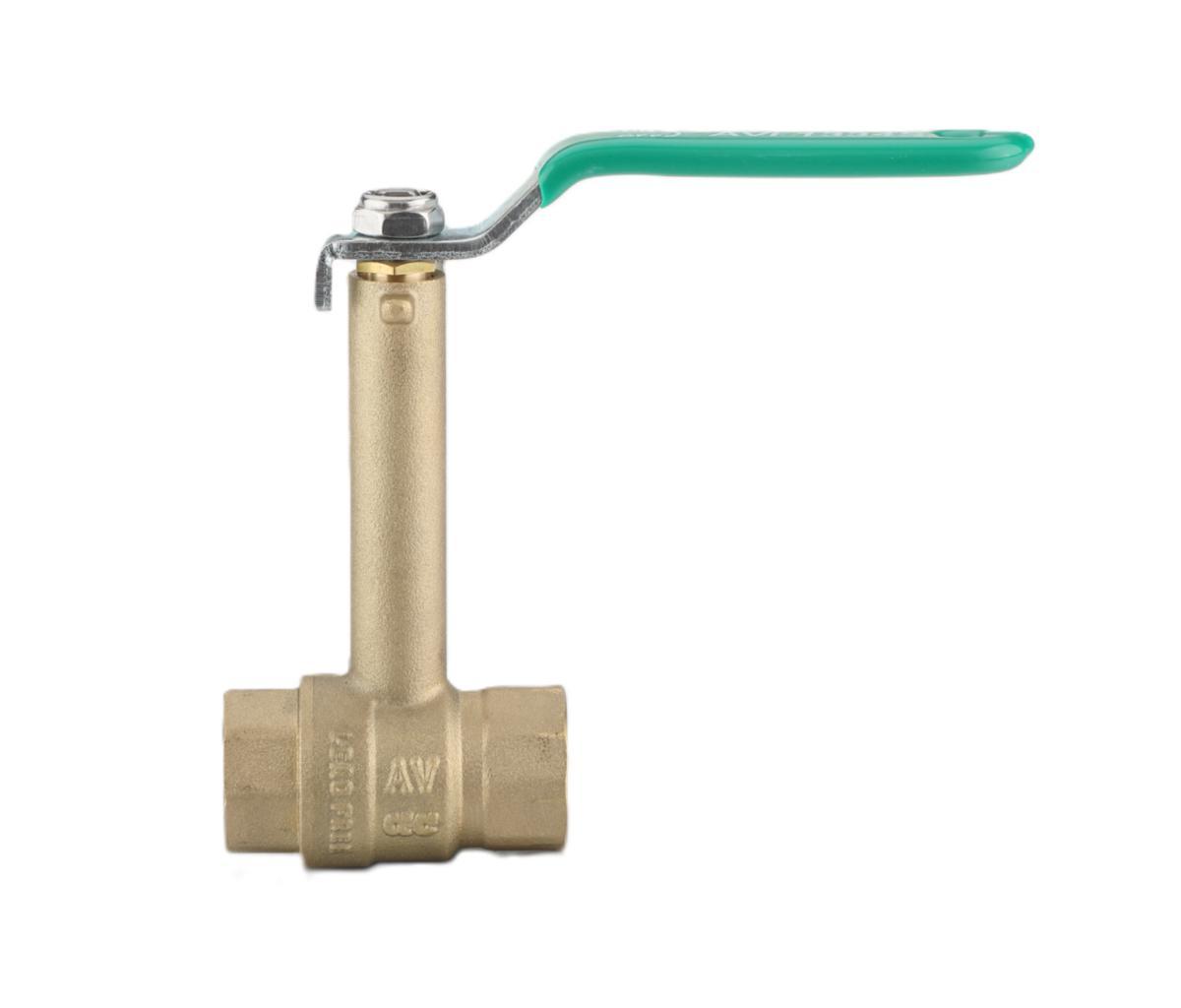

Ball Valve AVI 1334-S Lead-Free High Neck, a-collection
40 BALLVALVE AVI1334S LEADFREE BRASS FEMALE HIGH NECK PN25
Article number:
5494998
to see price and stock
For drinking water, heating/cooling systems, diesel, glycol, neutral liquids, and other media that do not attack the valve's materials. Lead-free brass with 0.10% lead content. Full flow
- Article number: 5494998
- Material class PIB050
Technical data
- Packagin Size: 1 ST/2 ST/4 ST
- Connection 1: Internal thread cylindrical BSPP-G (ISO 228-1)
- Connection 2: Internal thread cylindrical BSPP-G (ISO 228-1)
- Nominal diameter connection 1: 1 1/2 inch (40)
- Nominal diameter connection 2: 1 1/2 inch (40)
- Length: 95 mm
- Article compression class: PN 25
- Operation: Lever handle
- Material ball seal: Polytetrafluoroethylene (PTFE)
- Material quality: Dezincification resistant brass (DZR)
- Housing material: Brass
- Medium temperature (continuous): -20-170 °C
- Full bore: No
- Grease-free: No
- Material ball: Stainless steel
- Material spindle: Stainless steel
- Material primary spindle seal: Polytetrafluoroethylene (PTFE)
- With drain valve: No
- With drain possibility (connection): No
- With coupling connection 1: No
- With coupling connection 2: No
- Medically clean: No
- Model: Straight
- Housing construction: 1-part
- Kvs value: 86.8
- With non-return valve: No
- With filter: No
- With insulation shell: No
- With thermometer: No
- Surface protection housing: None
- Surface protection ball: None
- DVGW quality mark for gas: No
- Flange compression class: PN 25
- Angle of the valve: 0 °
- DVGW quality mark for water: Yes
