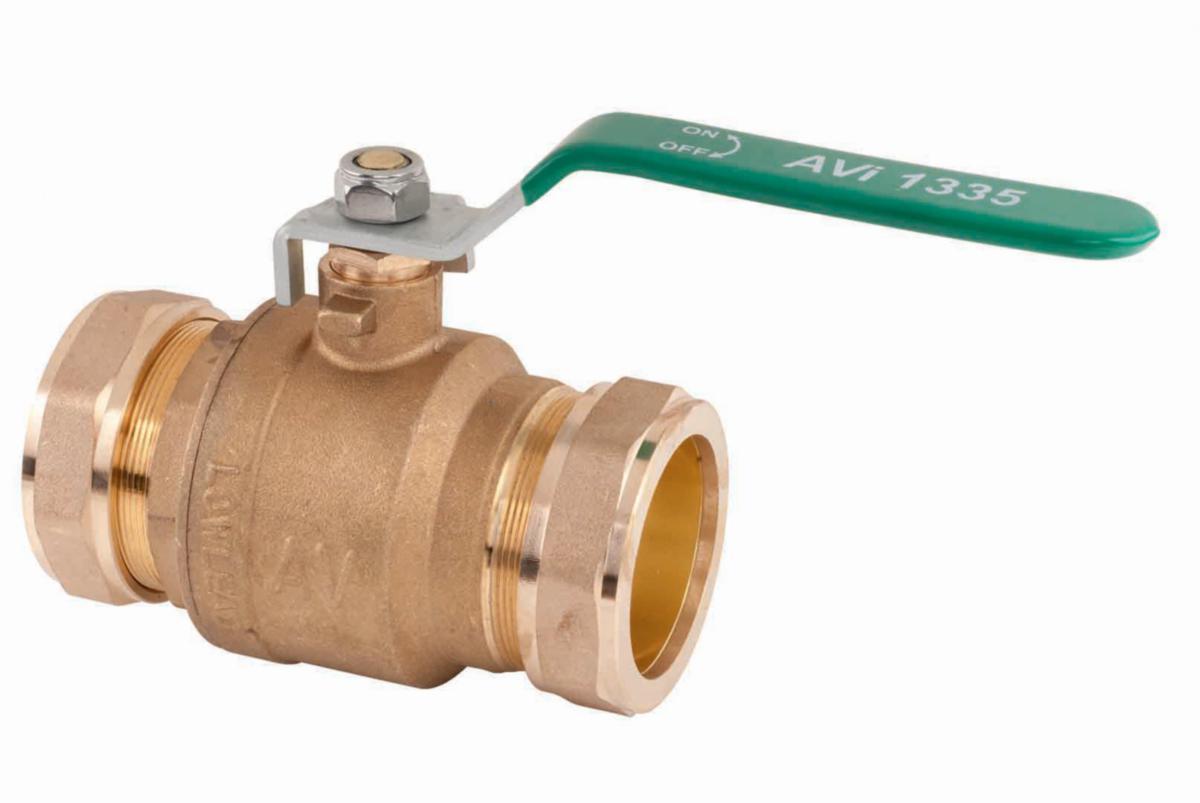

Ball Valve AVI 1335, a-collection
BALL VALVE AVI 1335 LOW LEAD BRASS COMPRESSION 12MM PN16
Article number: Suppl. article no:
4508317
05.01.2224.004
to see price and stock
For tap water, heating/cooling system, diesel, glycol, neutral fluids, and other materials that will not attack in the valve input material. In low-lead brass CW511L, and full throughflow.
- Article number: 4508317
- Suppl. article no: 05.01.2224.004
- Ean no: 07340080730859
- Replaces art.nbr: 4508273 4510278
- Material class PIB030
Technical data
- Packagin Size: 1 ST/6 ST
- Connection 1: Compression ring
- Connection 2: Compression ring
- Nominal diameter connection 1: DN 10
- Outer pipe diameter connection 1: 12 mm
- Outer pipe diameter connection 2: 12 mm
- Length: 62 mm
- Article compression class: PN 16
- Operation: Lever handle
- Material ball seal: Polytetrafluoroethylene (PTFE)
- Material quality: Dezincification resistant brass (DZR)
- Housing material: Brass
- Medium temperature (continuous): -20-170 °C
- Full bore: No
- Grease-free: No
- Material ball: Stainless steel
- Material spindle: Stainless steel
- Material primary spindle seal: Polytetrafluoroethylene (PTFE)
- With drain valve: No
- With drain possibility (connection): No
- With coupling connection 1: Yes
- With coupling connection 2: Yes
- Medically clean: No
- Model: Straight
- Design: Clamp ring connection
- Housing construction: 1-part
- With non-return valve: No
- With filter: No
- With insulation shell: No
- With thermometer: No
- Surface protection housing: None
- Surface protection ball: None
- DVGW quality mark for gas: No
- Flange compression class: PN 16
- Angle of the valve: 0 °
- DVGW quality mark for water: Yes
- Seals: Valve seat PTFE, Spindle seal HNBR
