Esbe

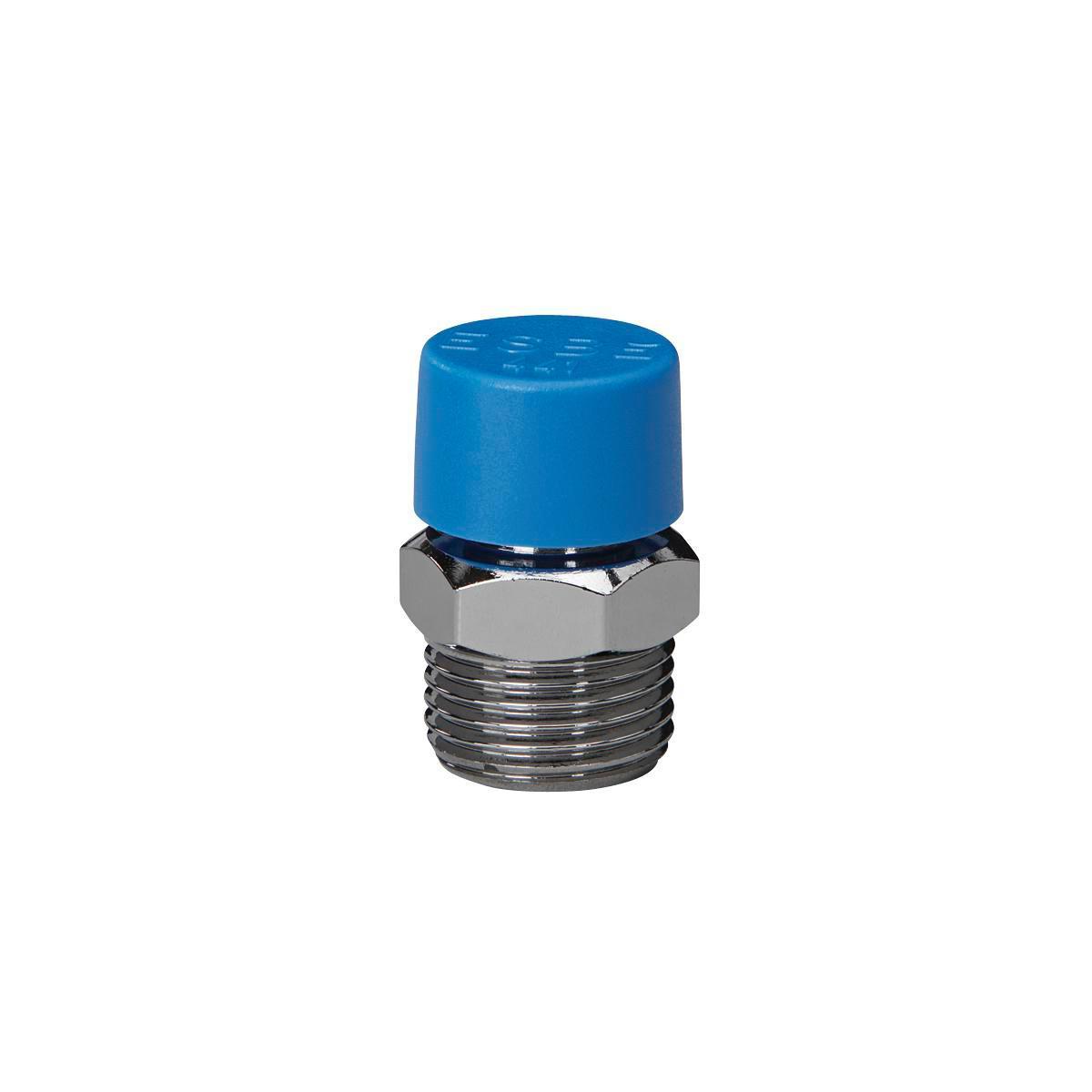

Vacuum valve, ESBE
DN15 VACUM VENT G15 BA 4148-1 BRASS
Article number: Suppl. article no:
5021000
36100100
to see price and stock
Vacuum valve intended as an anti-back siphonage device for, e.g. water heater. Mounted horizontally or vertically.
- Article number: 5021000
- Suppl. article no: 36100100
- Ean no: 7330193024792
- Replaces art.nbr: 5021870
- Material class PIC130
Technical data
- Connections: External thread cylindrical BSPP-G (ISO 228-1)
- Outer pipe diameter: 15 mm
- Article compression class: PN 10
- Surface protection: Coated
- Material quality: Other
- Suitable for liquids: Yes
- Suitable for gases (incl. steam): No
- Nominal diameter: DN 15
- Housing material: Brass
- Medium temperature (continuous): 0-90 °C
- Flame barrier: No
- Height: 33 mm
- Length of connection 1: 9 mm
- REACH contains candidate substances: Bly
- REACH Date: 2021-01-19
- REACH Information obligation: Yes
