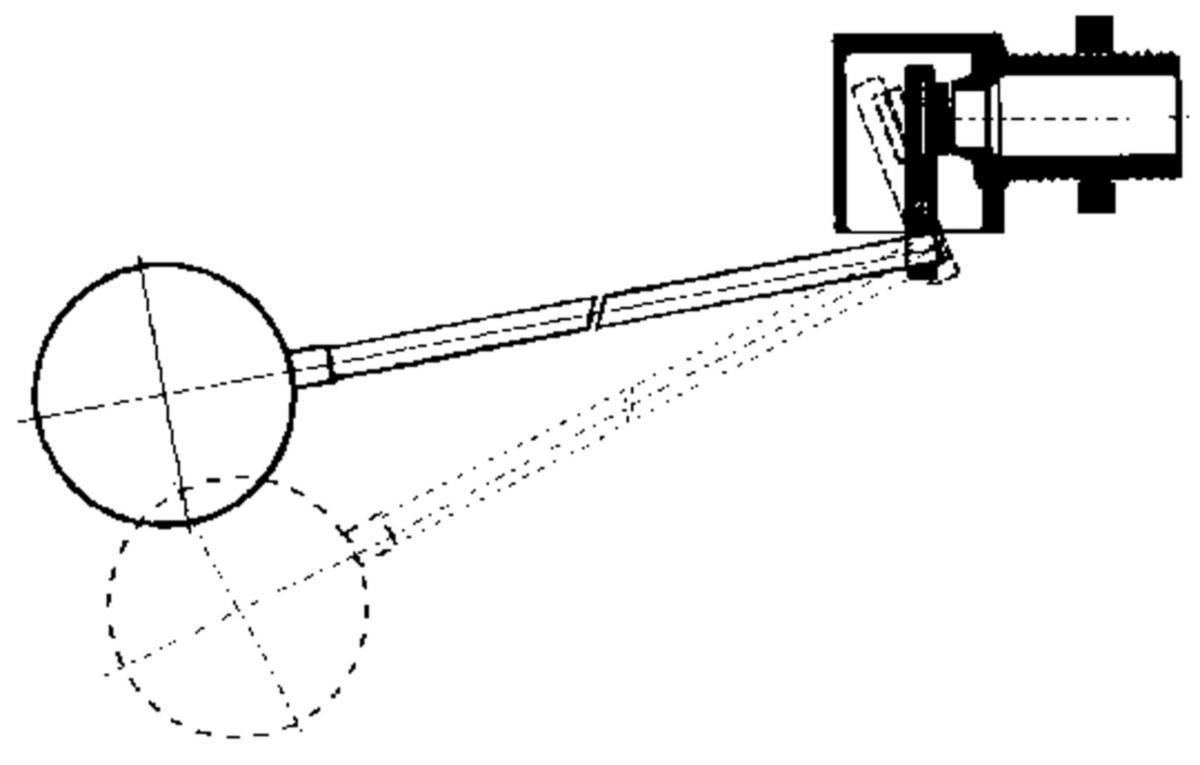

Float valve VYC, AVi 2240, a-collection
FLOAT VALVE AVI 2240 DN15 1.4401 M10 BUOY CONNECTION
Article number: Suppl. article no:
5080810
2008-151-30221
to see price and stock
Float valve of stainless steel. The float valve is used to control the levels in tanks and cisterns.
Please note that valve housings and floats are ordered on separate part numbers. For dimensioning the float valve and float, see sheet 11:10.
Please note that valve housings and floats are ordered on separate part numbers. For dimensioning the float valve and float, see sheet 11:10.
- Article number: 5080810
- Suppl. article no: 2008-151-30221
- Material class PIL030
Technical data
- Connection 1: External thread cylindrical BSPP-G (ISO 228-1)
- Connection 2: External thread cylindrical BSPP-G (ISO 228-1)
- Nominal diameter: 1/2 inch (15)
- Float rod length: 300 mm
- Right-angled model: No
- Material quality: Stainless steel 316 L (1.4404)
- Max. operating pressure at 20 °C: 16 bar
- With float: No
- With coupling connection 1: No
- With coupling connection 2: No
- Article compression class: PN 16
- Sealing: Metal-sealing
- Surface protection: Untreated
- Housing material: Stainless steel
- Max. medium temperature (continuous): 120 °C
