Danfoss

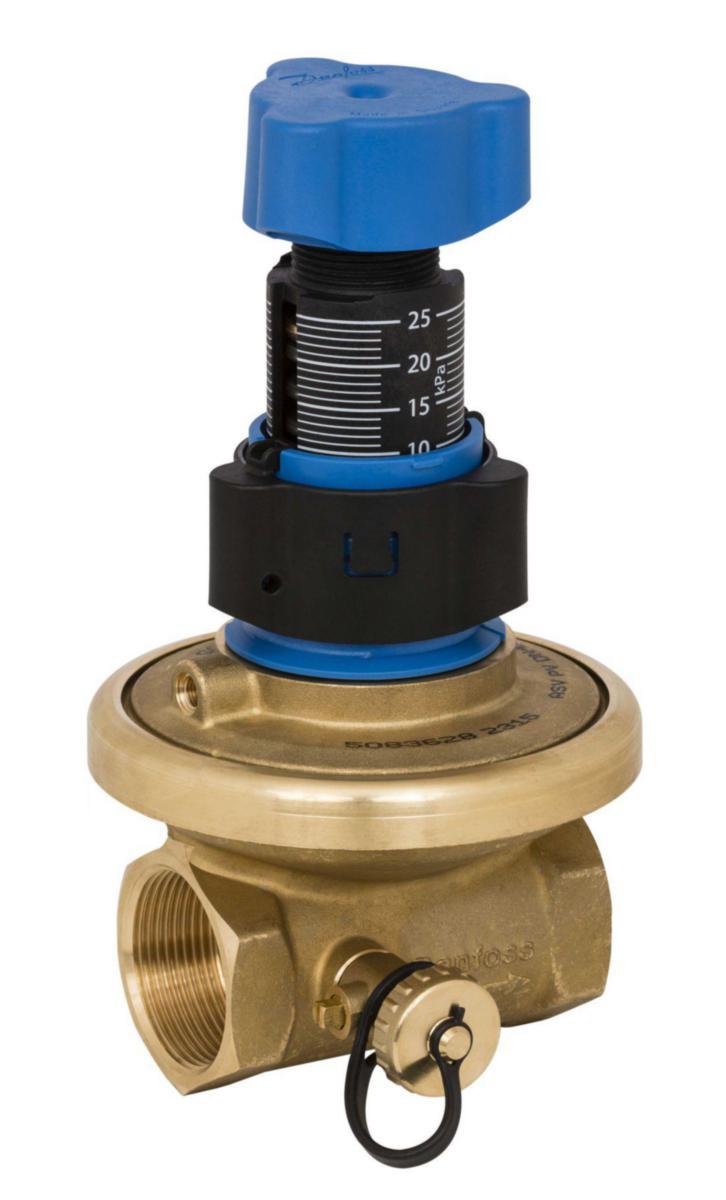

Automatic Balancing Valve ASV-PV, Danfoss
15 ASV-PV DANFOSS AUTOMATIC BALANCING VALVE
Article number: Suppl. article no:
5400919
003Z5601
to see price and stock
- Article number: 5400919
- Suppl. article no: 003Z5601
- Ean no: 5710104081601
- Material class PIE140
Technical data
- Packagin Size: 1 ST/8 ST
- Connection 1: Internal thread cylindrical BSPP-G (ISO 228-1)
- Connection 2: Internal thread cylindrical BSPP-G (ISO 228-1)
- Nominal diameter: DN 15
- Article compression class: PN 16
- Adjustment range: 5-25 kPa
- With drain valve: Yes
- Operation: Medium-controlled
- With impulse pipe: Yes
- Lockable: Yes
- Adjustable pressure difference: Yes
- Kvs value: 1.6
- Position indicator: No
- Max. pressure difference at 20 °C: 250 kPa
- With volume supply limiter: No
- Membrane-controlled: Yes
- With coupling connection 1: No
- Height: 111 mm
- Material quality: Other
- Measuring connection: Adaptor
- Length of connection 1: 65 mm
- Working length connection 1: 65 mm
- REACH Date: 2023-05-08
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
