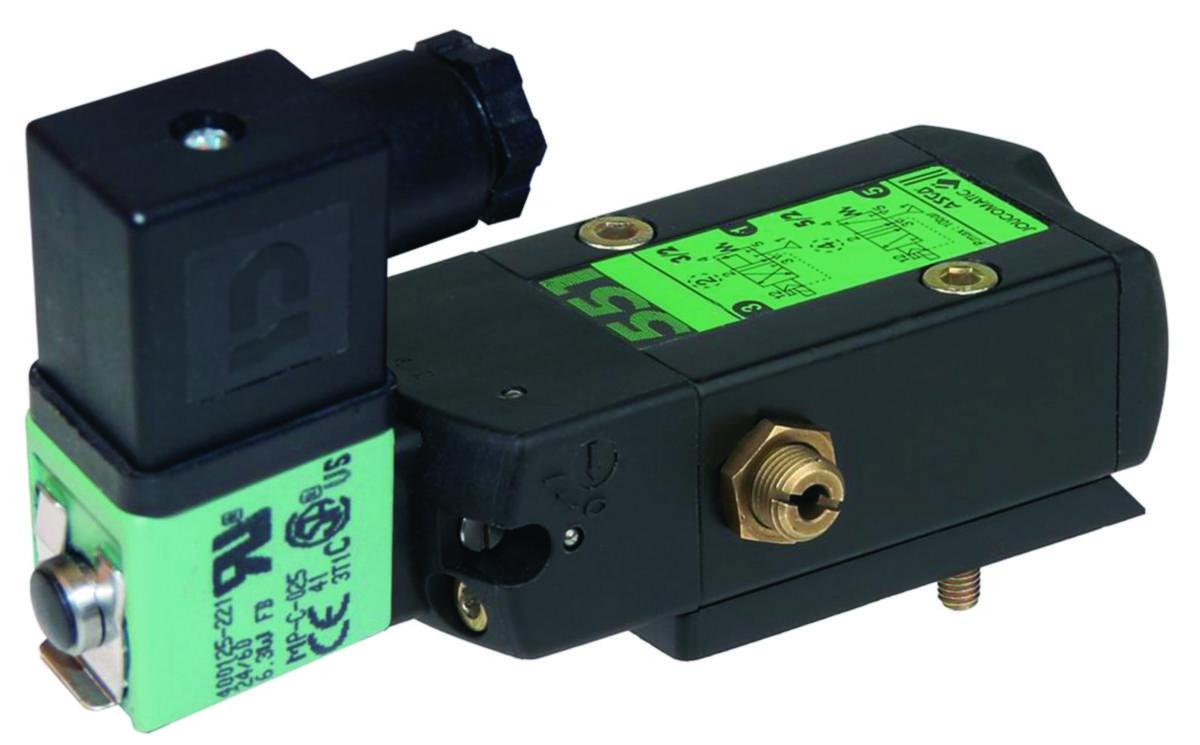

Solenoid Valve Asco Namur Series 551 for pneumatic actuators
MAGNETIC VALVE NAMUR DN8 230V/50HZ PNEUM IP65
Article number: Suppl. article no:
4528248
50220013
to see price and stock
Valve in accordance with NAMUR standard with multi-function 3/2-5/2 positions for mounting on double-action or single-action pneumatic control devices. Housing made of aluminium with venting via the standard ports. Control pressure, min 2 bar, max 10 bar. Int. thread. IP 65. Is fitted to pneumatic control devices, complete with hose coupling 6/4 and reduction check valve.
Operating pressure bar: 2-10
Operating pressure bar: 2-10
- Article number: 4528248
- Suppl. article no: 50220013
- Material class PIM110
Technical data
- Packagin Size: 1 ST/10 ST
- Spare part: Yes
- Accessory: Yes
