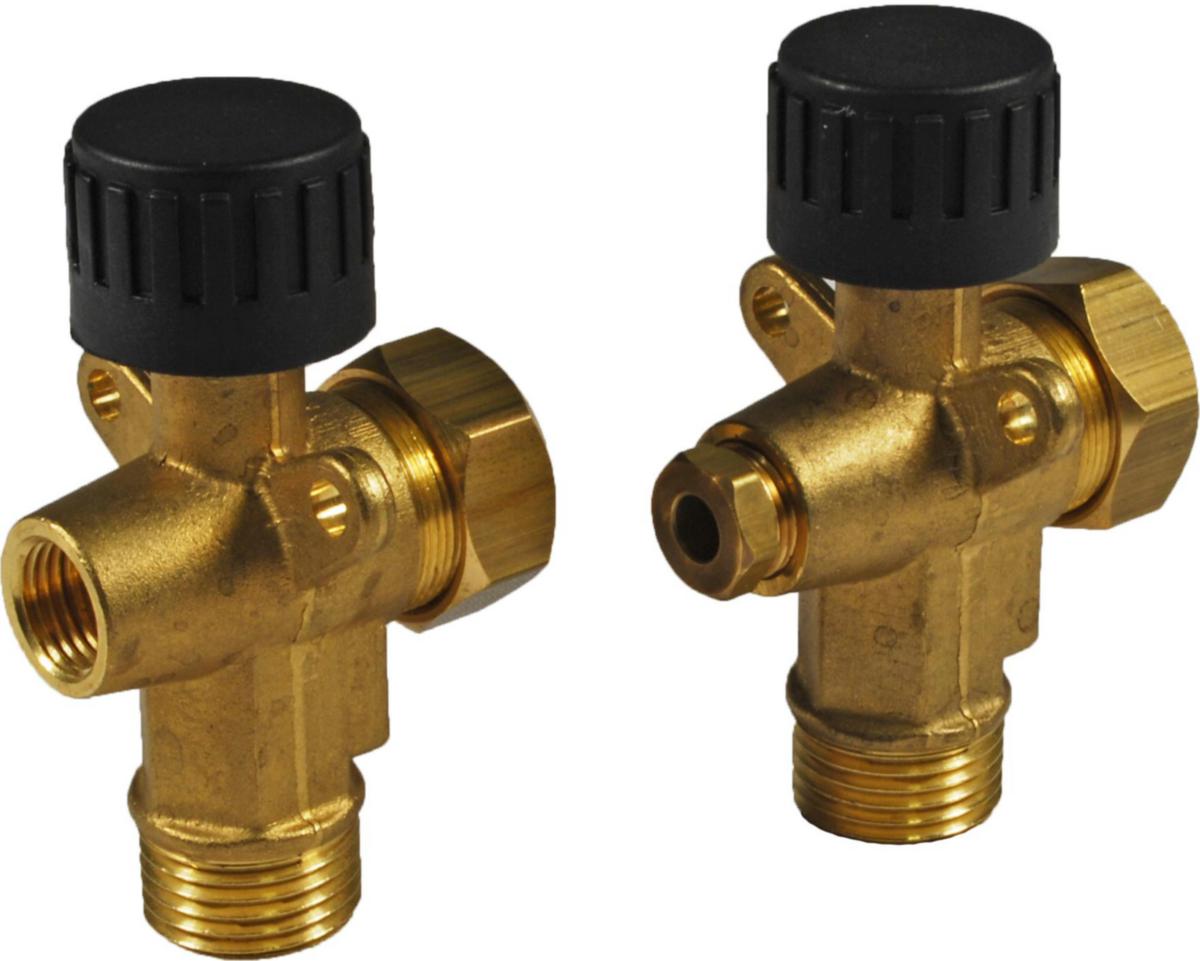

Over- and under-vent valves for water level control
15 WATER STATUS VALVES WITH PACKAGING
Article number: Suppl. article no:
5144829
0751410000
to see price and stock
With gaskets.
- Article number: 5144829
- Suppl. article no: 0751410000
- Ean no: 7331807059223
- Material class PIT900
Technical data
- Packagin Size: 1 PAR/10 PAR
- Connection for level gauge body: Cylindrical glass/plastic
- Connections: External thread conical BSPT-R (ISO 7-1 / EN 10226-1)
- Diameter, connection level gauge/body: 12.7 mm
- Nominal diameter: 1/2 inch (15)
- Lockable: No
- Max. pressure difference at 20 °C: 10 bar
- With drain valve: No
- Self-closing: No
- Outer pipe diameter all connections: 15 mm
- With level gauge or body: Yes
- Max. medium temperature (continuous): 60 °C
- Min. medium temperature (continuous): 0 °C
- REACH Date: 2021-10-29
- REACH Information obligation: No
- Housing material: Brass
