Wilo
Groundwater pump TSW 32/8A, Wilo
TSW 32/11 A WILO
Article number: Suppl. article no:
5884126
6045166
to see price and stock

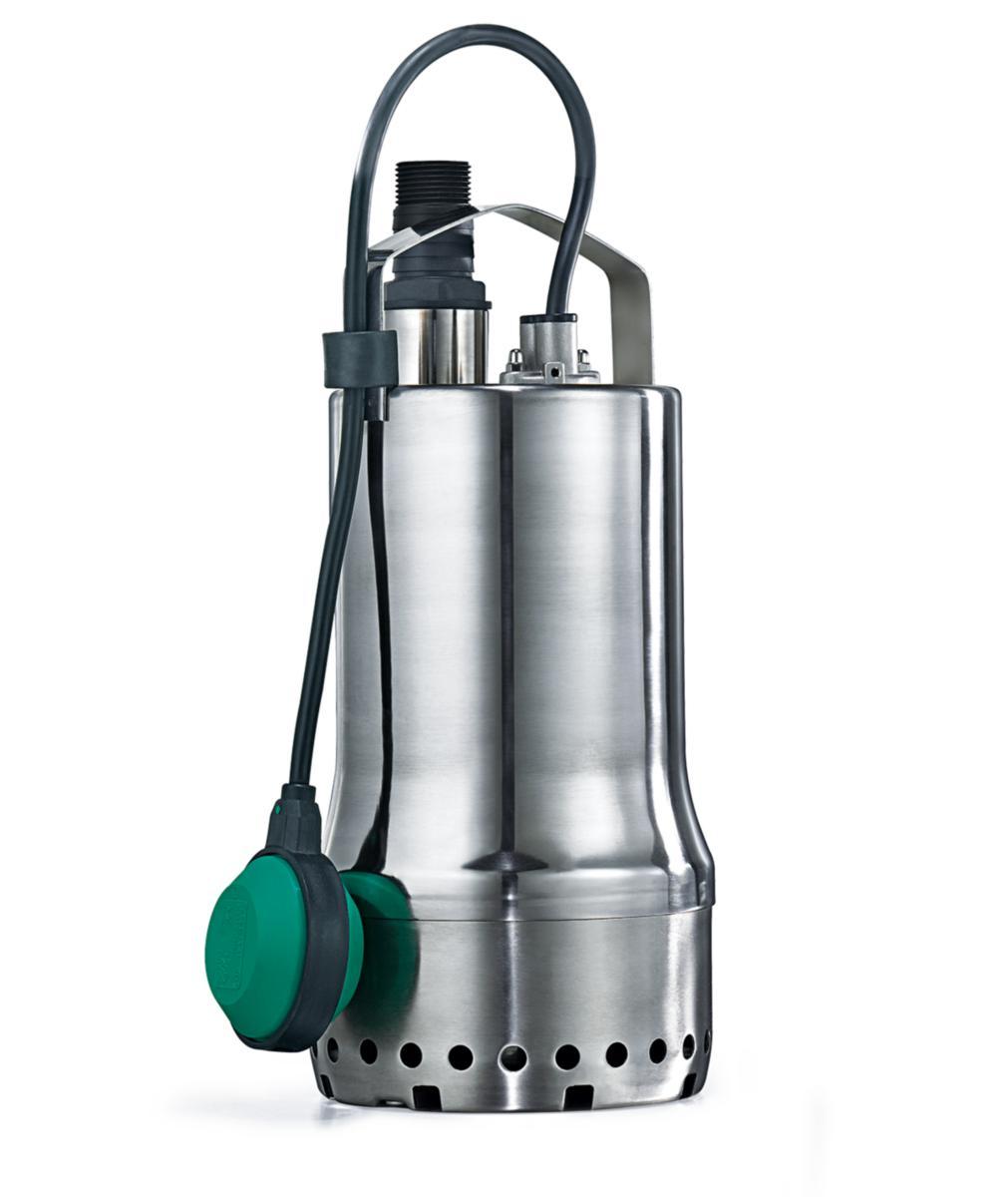

Stainless, drain-proof pump intended for drainage water. Fully automatic operation with built-in rocker and built-in motor protection with automatic reset. A patented design ensures that a swirl effect (twister function) is created around the pump inlet area. This feature provides a cleaner pump hole, which in turn leads to safer pump operation and longer service life. Sealed with mechanical axle seal on the pump side.
- Article number: 5884126
- Suppl. article no: 6045166
- Ean no: 4044966474143
- Material class PHI130
Technical data
- Packagin Size: 1 ST/15 ST/30 ST
- Pump type: TSW 32/11 A
- Insulation class according to IEC: B
- Motor power output (P2) per motor: 0.6 kW
- Motor power input (P1) per motor: 0.9 kW
- Nominal current: 3.6 A
- Pump height: 360 mm
- Pump circuit: With cast-on float
- Rotational speed: 2900 1/min
- Max. dimension of fixed parts: 10 mm
- Electrical connection: Connection cable with plug
- Weight: 8 kg
- Pump diameter: 171 mm
- Degree of protection (IP): IP68
- Material pump casing: Stainless steel
- Material motor housing: Stainless steel
- Material quality motor housing: Stainless steel 304 (1.4301)
- Material quality pump casing: Stainless steel 304 (1.4301)
- Max. static height: 10.87 m
- Number of phases: 1
- Material impeller/pump wheel: Other
- Material quality impeller/pump wheel: Other
- Max. discharge flow: 14.03 m³/h
- Rated voltage: 230 V
- Nominal operating mode: S3 25 %
- Ambient temperature: 3-35 °C
- Frequency: 50 Hz
- Immersing depth: 7 m
- Discharge head at flow rate (BEP): 89.06 kPa
- Medium temperature (continuous): 3-35 °C
- Connection standard outlet side: ISO 7-1 / EN 10226-1
- Nominal diameter connection outlet side: 1 1/4 inch (32)
- Connection outlet side: Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)
- Flange shape: Other
- Max. operating pressure: 2 bar
- Outer pipe diameter connection outlet side: 32 mm
- Cable length: 10 m
- With protection against dry running: No
- Volume flow rate (BEP): 3.42 m³/h
- Flange compression stage connection outlet side: PN 10
