Flygt

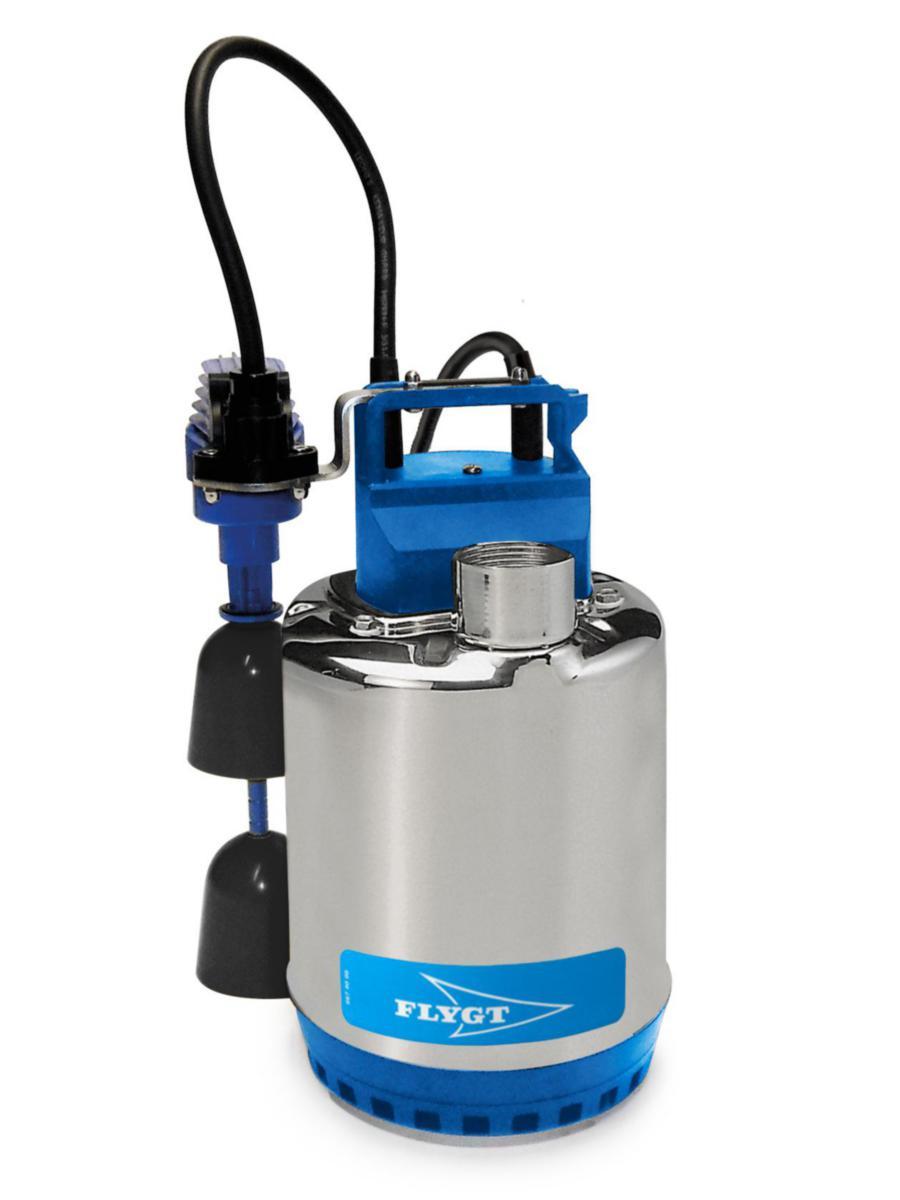

Drainage pump SXM 3, Flygt
SXM 3 GW DRAINAGE PUMP FLYGT
Article number: Suppl. article no:
5880130
AA-107544910
to see price and stock
- Article number: 5880130
- Suppl. article no: AA-107544910
- Replaces art.nbr: 5890092
- Material class PHI110
Technical data
- Insulation class according to IEC: B
- Motor power output (P2) per motor: 0.7 kW
- Motor power input (P1) per motor: 0.7 kW
- Nominal current: 3.57 A
- Pump height: 285 mm
- Pump circuit: With external float
- Rotational speed: 2900 1/min
- Max. dimension of fixed parts: 10 mm
- Electrical connection: Connection cable with plug
- Weight: 6 kg
- Pump diameter: 155 mm
- Degree of protection (IP): IP68
- Material pump casing: Fibre-reinforced plastic
- Material motor housing: Stainless steel
- Material quality motor housing: Stainless steel 304 (1.4301)
- Material quality pump casing: Other
- Max. static height: 11 m
- Number of phases: 1
- Max. discharge flow: 13.5 m³/h
- Rated voltage: 220-240 V
- Frequency: 50 Hz
- Immersing depth: 5 m
- Discharge head at flow rate (BEP): 74.5 kPa
- Medium temperature (continuous): 0-40 °C
- Connection standard outlet side: ISO 228-1
- Nominal diameter connection outlet side: 1 1/4 inch (32)
- Connection outlet side: Internal thread cylindrical BSPP-G (ISO 228-1)
- With cutting system: No
- Suitable for dry set-up: No
- Cable length: 10 m
- Volume flow rate (BEP): 9 m³/h
