Flygt
Bilge Pump Ready 8S, Flygt
READY 8S DRAINAGE PUMP FLYGT
Article number: Suppl. article no:
5890170
00-20082810015
to see price and stock

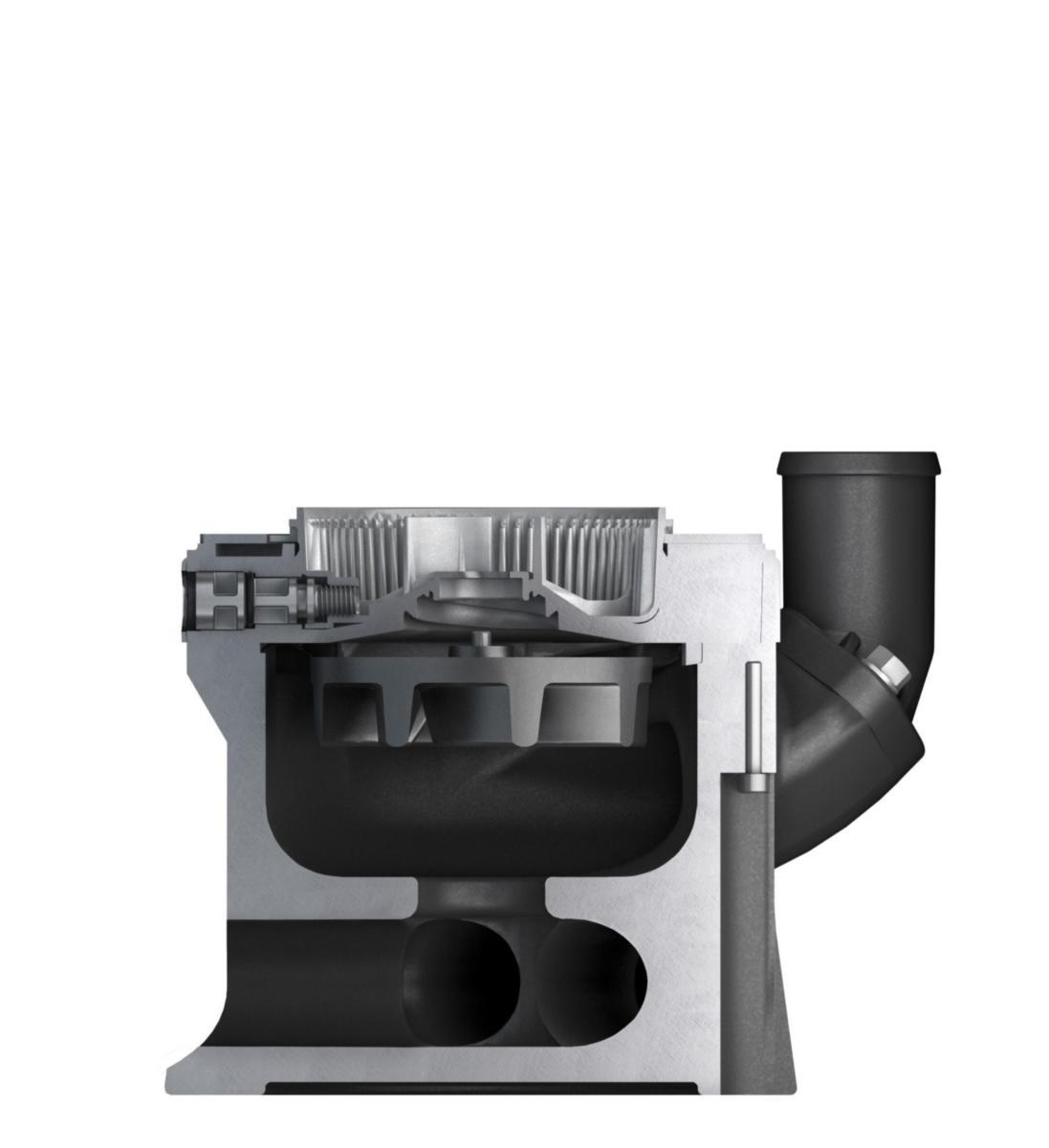

Emptying pumps and drainage pumps with very durable construction. Suitable for dewatering of construction sites and industrial sites, emptying of wells and shafts as well as rescue pumps in the event of floods. Ready 8S has swivel castors and a unique 38 mm wide through hole for trouble-free handling of sludge in contaminated water. Del. with 1-phase, 10m cable with grounded plug.
- Article number: 5890170
- Suppl. article no: 00-20082810015
- Material class PHJ100
Technical data
- Nominal current: 5.2 A
- Rotational speed: 2800 1/min
- Pump height: 512 mm
- Pump diameter: 197 mm
- Insulation class according to IEC: F
- Electrical connection: Connection cable with plug
- Max. dimension of fixed parts: 38 mm
- Degree of protection (IP): IP68
- Weight: 17 kg
- Connection outlet side: External thread cylindrical BSPP-G (ISO 228-1)
- Nominal diameter connection outlet side: 2 inch (50)
- Number of phases: 1
- Motor power output (P2) per motor: 0.9 kW
- Explosion-proof: No
- Frequency: 50 Hz
- Cable length: 10 m
- Material motor housing: Aluminium
- Material pump casing: Aluminium
- Max. discharge flow: 22.2 m³/h
- Max. static height: 11.7 m
- Medium temperature (continuous): 5-35 °C
- Rated voltage: 115-240 V
- Volume flow rate (BEP): 13 m³/h
- Immersing depth: 5 m
- Discharge head at flow rate (BEP): 79.5 kPa
