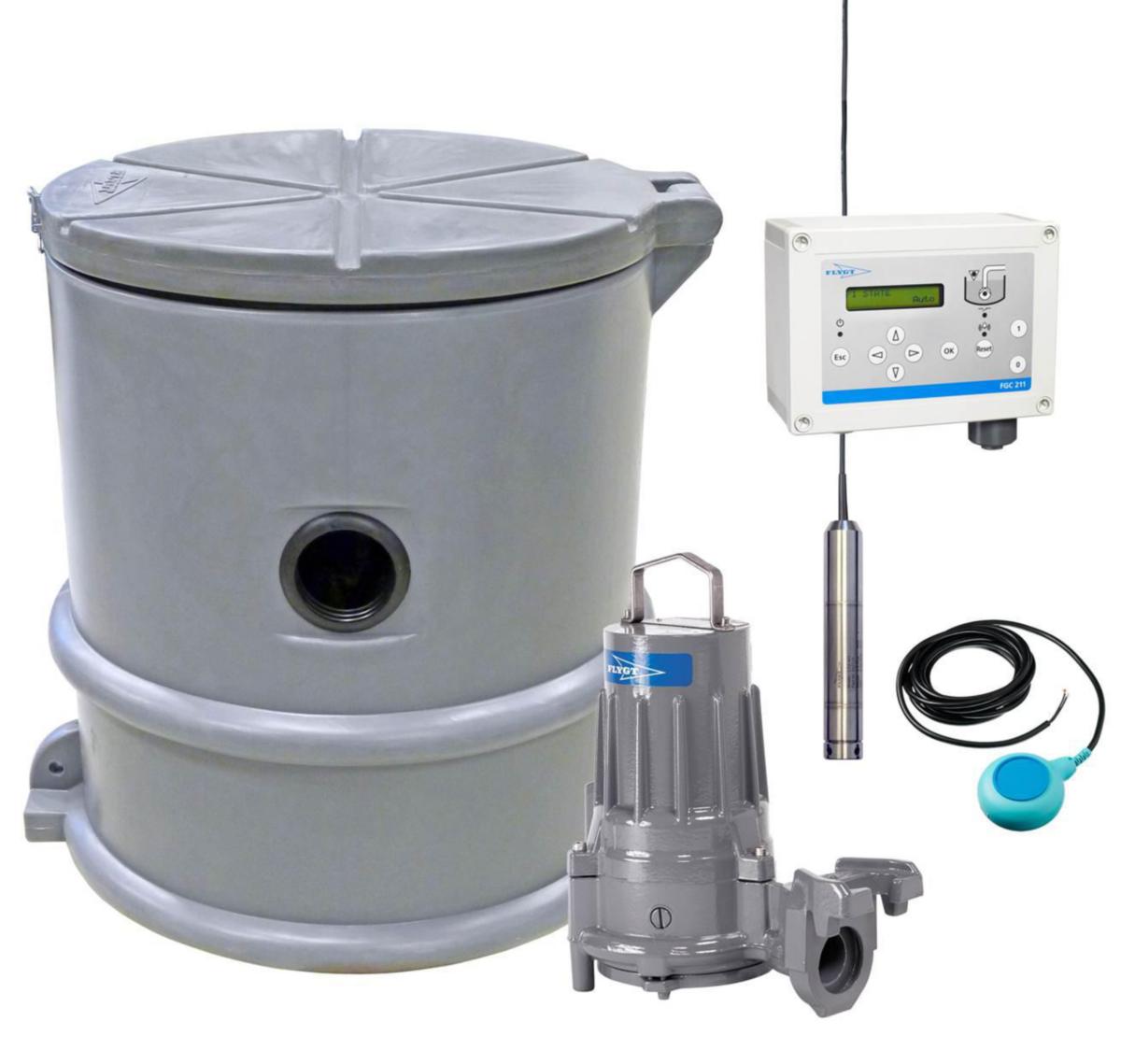

Drainage pump station Compit Mini STD package with MH3069 HT-250 pump, Flygt
COMPIT MINI STD-PACKET WASTEWATER-PST W PUMP, FLYGT
Article number: Suppl. article no:
5884875
00-8643301
to see price and stock
Compit mini is a compact, double-walled pumping station. The cover is lockable and heat/odour/sound-proofed. Supplied with Flygt Tuggerpump MP3068-210, 3-phase, 2.4 kW. 1 complete sump, 2 x cable tubes (16 cm for Flygt NF 5 & 21 cm for Flygt LTU 401), 1 x tilting securing, 1 x guide show, 1 x NF5 tilt with 10 cable, 1 x LTU401 level sensor, 1 x FGC211 pump control.
- Article number: 5884875
- Suppl. article no: 00-8643301
- Material class PHL101
Technical data
- Height: 860 mm
- Width: 880 mm
- Depth: 880 mm
- Nominal diameter connection outlet side: DN 50
- Outer pipe diameter connection outlet side: 50 mm
- Connection inlet side: Tube end
- Outer pipe diameter connection inlet side: 100 mm
- Nominal diameter connection inlet side: 4 inch (100)
- Reservoir volume: 150 l
- Suitable for faeces: Yes
- Material pump casing: Cast iron
- Material quality reservoir: Other
- Material quality pump casing: Cast iron EN-GJL-200 (GG 20)
- Nominal current: 5.1 A
- Set-up behind toilet bowl: No
- Suitable for outdoor installation: Yes
- Frequency: 50 Hz
- Material reservoir: Polypropylene (PP)
- Motor power output (P2) per motor: 2.4 kW
- Number of pumps: 1
- Electrical connection: Cable
- Insulation class according to IEC: F
- With cutting system: Yes
- With de-aeration: No
- Number of inlet ports: 1
- Degree of protection (IP): IP68
- Max. static height: 35 m
- With non-return valve: Yes
- Rated voltage: 400 V
- Volume flow rate (BEP): 12.8 m³/h
- Discharge head at flow rate (BEP): 230 kPa
- Pump type: Compit mini Standard
