Saniflo
Drainage pump Saniaccess 1, Saniflo
SANIACCESS1 FOR WC GRINDER PUMP FOR TOILET
Article number: Suppl. article no:
5886716
5886716
to see price and stock

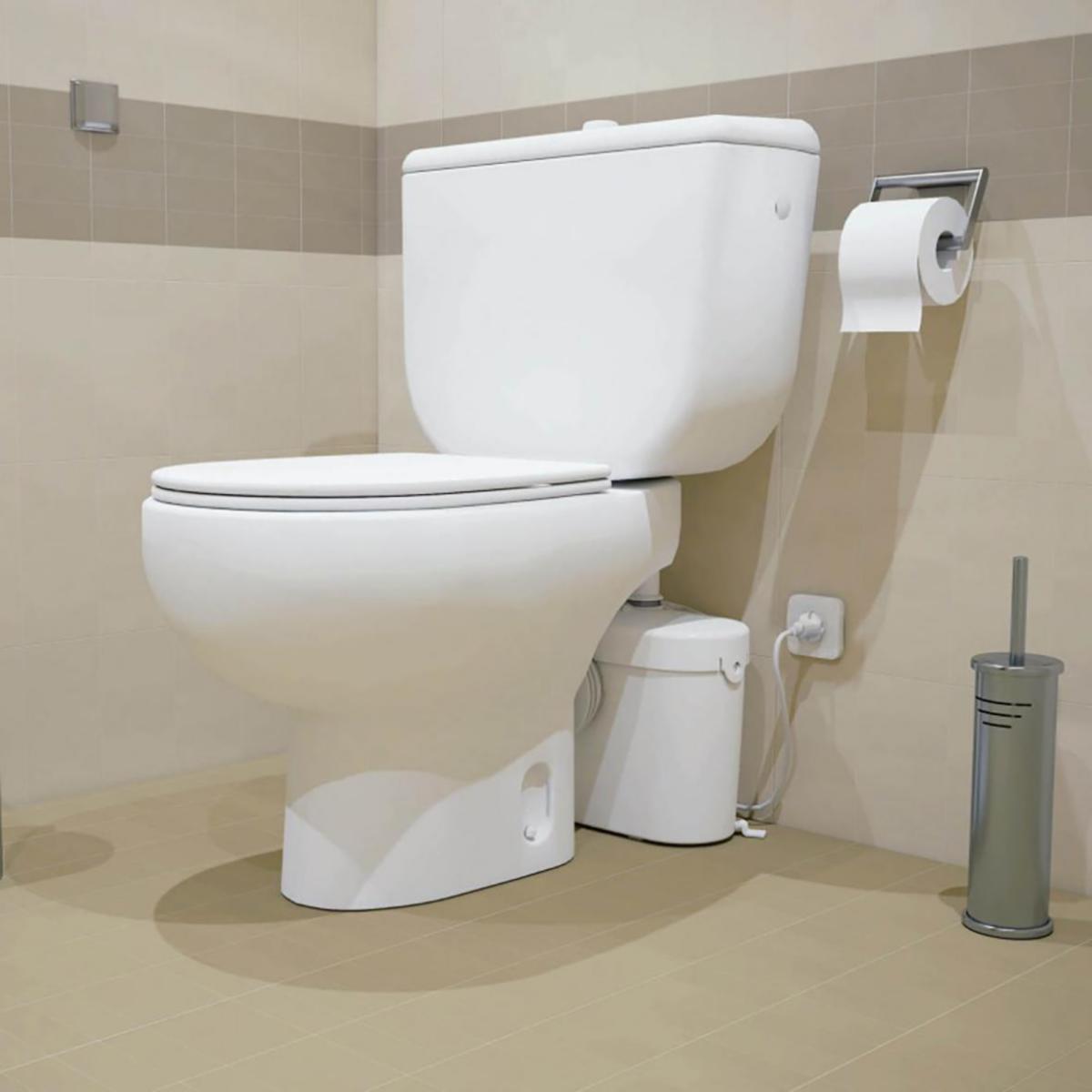

SANIACCESS ® 1 grinds down flushed mass from a toilet and pumps away waste water to the existing drain. Our new grinding pump with easy access - where cutting systems and electronics are separated. Easy installation without major intrusion. SANIACCESS® 1 is suitable for all conventional toilet seats with P lock. PLEASE NOTE! Installed with min. 6 l/flush. Easy access to the cutting system to easily fix the stop and for other maintenance. Easy access to the electronic device to facilitate parts replacement. The pump grinds and pumps away the flush mass through just 22-32 mm pipes.
- Article number: 5886716
- Suppl. article no: 5886716
- Ean no: 3308815013169
- Material class PHM141
Technical data
- Packagin Size: 1 ST/7 ST/14 ST
- Degree of protection (IP): IP44
- Nominal current: 1.9 A
- Depth: 166 mm
- Nominal diameter connection outlet side: 1 1/4 inch (32)
- Width: 392 mm
- Connection inlet side: Other
- Motor power input (P1) per motor: 400 W
- Number of pumps: 1
- Electrical connection: Connection cable with plug
- Height: 265 mm
- With cutting system: Yes
- Suitable for faeces: Yes
- Material pump casing: Polypropylene (PP)
- Set-up behind toilet bowl: Yes
- Outer pipe diameter connection inlet side: 40 mm
- Outer pipe diameter connection outlet side: 32 mm
- With de-aeration: Yes
- Max. static height: 5 m
- Nominal diameter connection inlet side: 1 1/2 inch (40)
- With alarm function: No
- Alarm output: No
- Number of inlet ports: 1
- Suitable for outdoor installation: No
- Frequency: 50 Hz
- Rated voltage: 230 V
