Saniflo

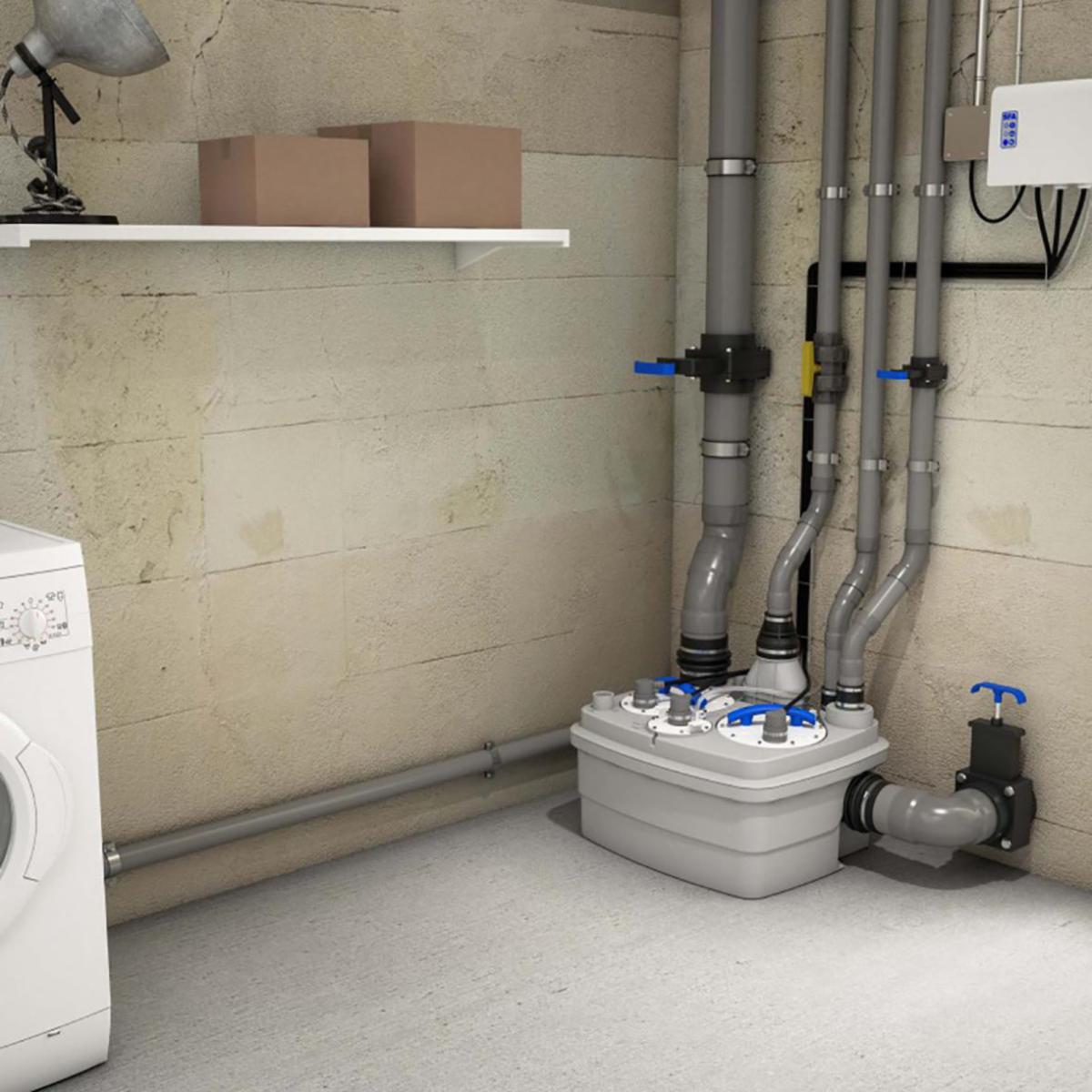

Pumping Station Sanicubic 2 classic, Saniflo
SANICUBIC 2 CLASSIC PUMP STATION FOR LARGER HOUSE
Article number: Suppl. article no:
5886401
5886401
to see price and stock
- Article number: 5886401
- Suppl. article no: 5886401
- Ean no: 3308815074443
- Replaces art.nbr: 5886732
- Material class PHM140
Technical data
- Degree of protection (IP): IP68
- Nominal current: 6 A
- Depth: 515 mm
- Nominal diameter connection outlet side: 2 inch (50)
- Width: 597 mm
- Connection inlet side: Other
- Motor power input (P1) per motor: 1500 W
- Number of pumps: 2
- Electrical connection: Cable
- Height: 440 mm
- With cutting system: Yes
- Suitable for faeces: Yes
- Material pump casing: Polypropylene (PP)
- Set-up behind toilet bowl: No
- Outer pipe diameter connection inlet side: 110 mm
- Outer pipe diameter connection outlet side: 50 mm
- With de-aeration: Yes
- Max. static height: 11 m
- Nominal diameter connection inlet side: 4 inch (100)
- With alarm function: Yes
- Alarm output: Yes
- Number of inlet ports: 4
- Suitable for outdoor installation: No
- Max. dimension of fixed parts: 70 mm
- Reservoir volume: 45 l
- Material reservoir: Polypropylene (PP)
- With non-return valve: Yes
- Rated voltage: 230 V
- Volume flow rate (BEP): 20 m³/h
