Condensate water pump Sanicondens Clim Mini S, Saniflo
SANICONDENS CLIM MINI S SANIFLO
Article number: Suppl. article no:
5578576
5578576
to see price and stock

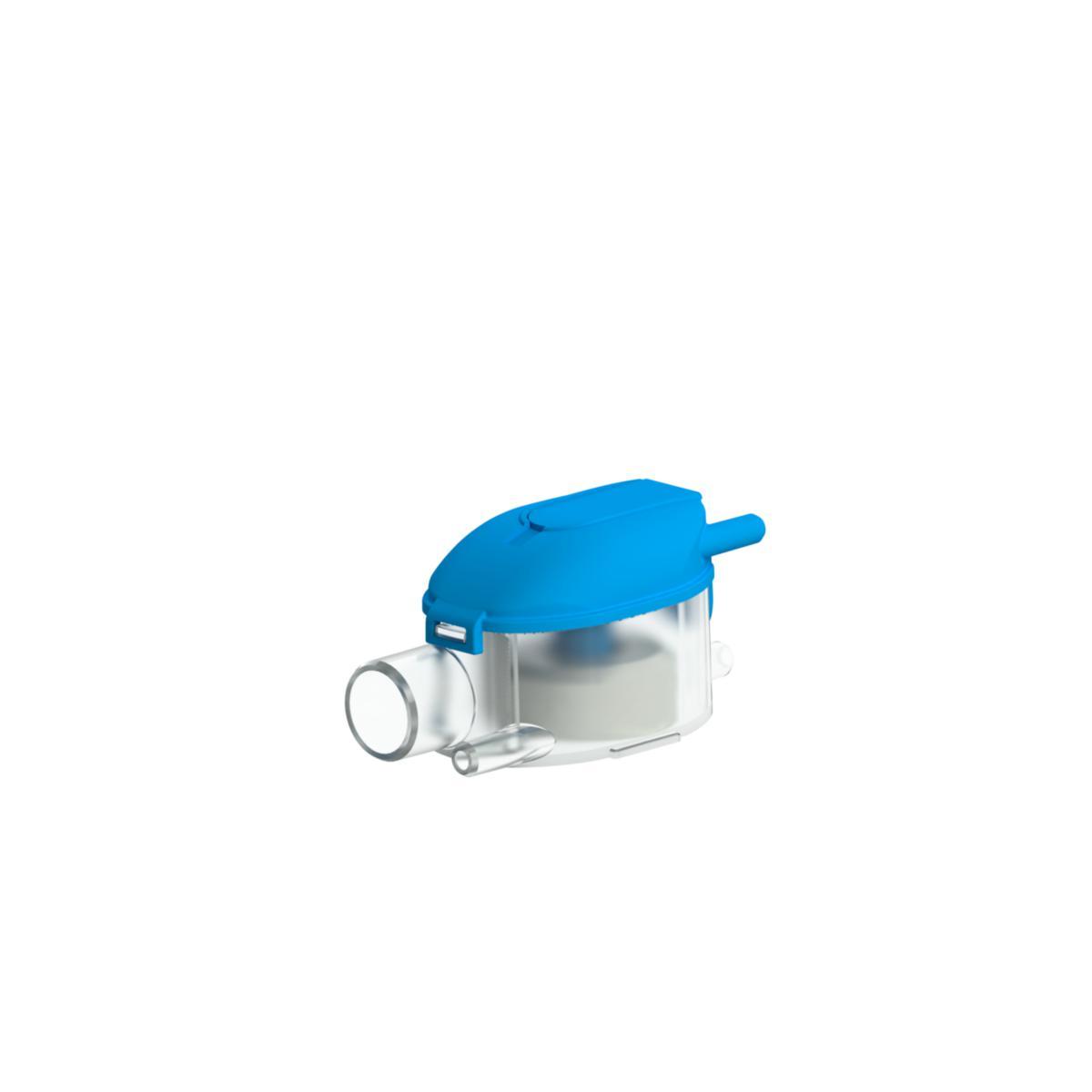

The new generation pump in a compact design for wall-mounted air conditioning, specially designed to meet market requirements and equipped with the best features. Alarm system (thermal protection 130 ° C and overfill). Quiet operation of only 21dB (A). Supplied control unit with transparent housing. Compact pump for concealed installation. Max 8kW / 27,000 BTU Øi inlet 16mm Øi outlet 6mm Max flow 9l / h +/- 15% Max water temp inflow 35 ° C Maximum suction height between level sensor and pump: 2m Included: 1.2 m flexible hose, mounting bracket, ventilation pipe, power cable IP- class: IP20
- Article number: 5578576
- Suppl. article no: 5578576
- Ean no: 3308815083520
- Replaces art.nbr: 5886712
- Material class PHM140
Technical data
- Packagin Size: 1 ST/12 ST
- Degree of protection (IP): IP20
- Connection inlet side: Tube end
- Motor power input (P1) per motor: 22 W
- Number of pumps: 1
- Outer pipe diameter connection inlet side: 16 mm
- Outer pipe diameter connection outlet side: 6 mm
- Max. static height: 2 m
- Number of inlet ports: 1
- Material reservoir: Polypropylene (PP)
- Connection outlet side: Tube end
