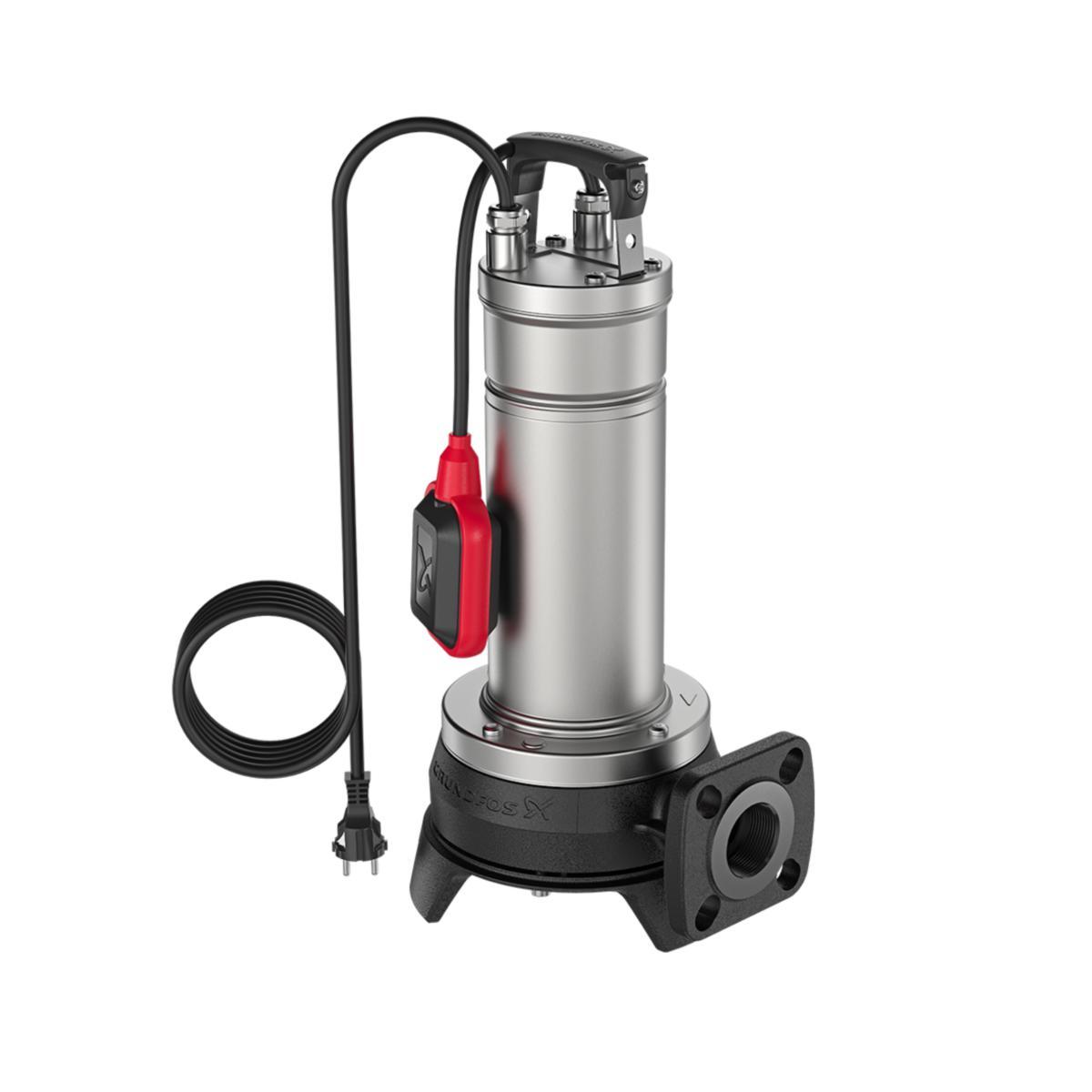

Drainage pump UNILIFT APG.40.10. Grundfos
UNILIFT APG.40.10.A1 1x230V
Article number: Suppl. article no:
5885555
92611467
to see price and stock
- Article number: 5885555
- Suppl. article no: 92611467
- Ean no: 5715117047880
- Material class PHK120
Technical data
- Electrical connection: Connection cable with plug
- Insulation class according to IEC: F
- With cutting system: Yes
- Rotational speed: 2850 1/min
- Suitable for dry set-up: No
- Motor speed control: None
- Nominal current: 5.8 A
- Pump diameter: 19 mm
- Pump height: 498 mm
- Max. dimension of fixed parts: 40 mm
- Frequency: 50 Hz
- Max. static height: 26 m
- Weight: 25 kg
- Connection outlet side: Flange
- Nominal diameter connection outlet side: DN 50
- Number of phases: 1
- Motor power output (P2) per motor: 0.88 kW
- Explosion-proof: No
- Flange shape: Quadrangular
- Motor power input (P1) per motor: 1.3 kW
- Degree of protection (IP): IP68
- Cable length: 10 m
- Material pump casing: Cast iron
- Material quality pump casing: Cast iron EN-GJL-200 (GG 20)
- Max. discharge flow: 12.8 m³/h
- Medium temperature (continuous): 0-70 °C
- Rated voltage: 230 V
- Nominal operating mode: S3 50 % 1 min
- Volume flow rate (BEP): 7.2 m³/h
- Ambient temperature: 0-40 °C
- Discharge head at flow rate (BEP): 147 kPa
- Flange compression stage connection outlet side: PN 10
- REACH Date: 2022-03-03
- REACH Information obligation: No
