Wilo

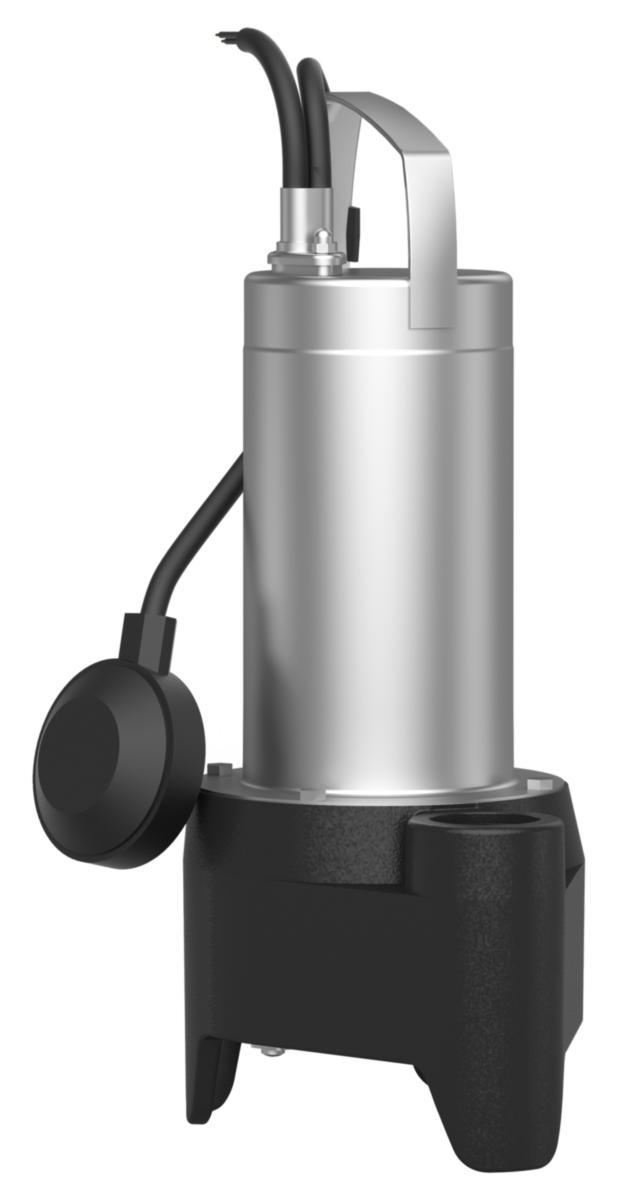

Drainage pump Rexa MINI3, Wilo
REXA MINI3-V04.09/M05-523/A SEWAGE PUMP. WILO
Article number: Suppl. article no:
5880158
3094009
to see price and stock
- Article number: 5880158
- Suppl. article no: 3094009
- Ean no: 4048482948768
- Material class PHI130
Technical data
- Packagin Size: 1 ST/306 ST
- Insulation class according to IEC: F
- Motor power output (P2) per motor: 0.5 kW
- Motor power input (P1) per motor: 0.73 kW
- Nominal current: 3.3 A
- Pump height: 416 mm
- Pump circuit: With cast-on float
- Rotational speed: 2900 1/min
- Max. dimension of fixed parts: 40 mm
- Electrical connection: Connection cable with plug
- Pump diameter: 163.2 mm
- Degree of protection (IP): IP68
- Material pump casing: Cast iron
- Material motor housing: Stainless steel
- Material quality motor housing: Stainless steel 304 (1.4301)
- Material quality pump casing: Cast iron EN-GJL-200 (GG 20)
- Max. static height: 9.002 m
- Number of phases: 1
- Material impeller/pump wheel: Polypropylene (PP)
- Material quality impeller/pump wheel: Other
- Max. discharge flow: 18.96 m³/h
- Rated voltage: 230 V
- Nominal operating mode: S3 15 %
- Ambient temperature: 3-40 °C
- Frequency: 50 Hz
- Immersing depth: 7 m
- Discharge head at flow rate (BEP): 57.36 kPa
- Motor speed control: None
- Medium temperature (continuous): 3-40 °C
- Connection standard outlet side: ISO 228-1
- Nominal diameter connection outlet side: 1 1/2 inch (40)
- Connection outlet side: External thread cylindrical BSPP-G (ISO 228-1)
- With cutting system: No
- Flange shape: Other
- Max. operating pressure: 1 bar
- Suitable for dry set-up: Yes
- Outer pipe diameter connection outlet side: 40 mm
- Cable length: 10 m
- With protection against dry running: No
- Volume flow rate (BEP): 12.64 m³/h
- Flange compression stage connection outlet side: PN 10
- Type of speed control: Regulated in fixed steps
