Pump Control Unit Initial Jet System, Wilo
INITIAL JET SYSTEM 4-4, G25 WITH VESSEL 60, WILO
Article number: Suppl. article no:
5955099
4168024
to see price and stock

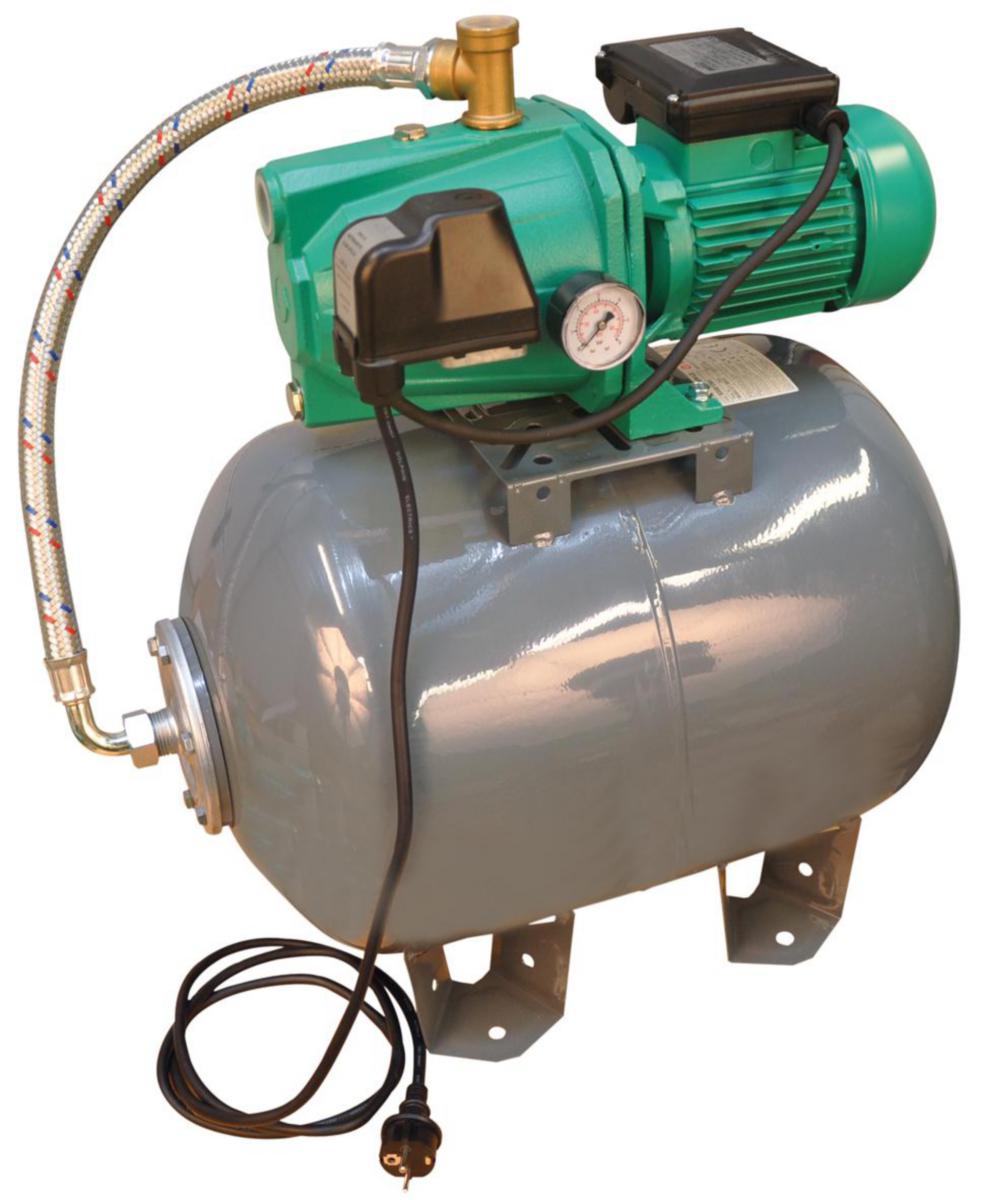

Horizontal, self-evacuating centrifugal pump mounted on 50 litre pressure tank.
- Article number: 5955099
- Suppl. article no: 4168024
- Ean no: 4048482250861
- Material class PHB120
Technical data
- Packagin Size: 1 ST/3 ST
- Insulation class according to IEC: F
- Nominal current: 5 A
- Rotational speed: 2850 1/min
- Connection inlet side: Internal thread cylindrical BSPP-G (ISO 228-1)
- Connection outlet side: Internal thread cylindrical BSPP-G (ISO 228-1)
- Nominal diameter connection inlet side: 1 inch (25)
- Nominal diameter connection outlet side: 1 inch (25)
- Connection standard inlet side: ISO 228-1
- Connection standard outlet side: ISO 228-1
- Number of phases: 1
- Motor power output (P2) per motor: 0.75 kW
- Outer pipe diameter connection outlet side: 25 mm
- Flange shape: Other
- Frequency: 50 Hz
- Degree of protection (IP): IPX4
- Material of connection: Cast iron
- Material impeller/pump wheel: Stainless steel
- Material pump casing: Cast iron
- Material quality connection: Cast iron EN-GJL-200 (GG 20)
- Material quality impeller/pump wheel: Stainless steel 304 (1.4301)
- Material quality pump casing: Cast iron EN-GJL-200 (GG 20)
- Max. operating pressure: 6 bar
- Max. discharge flow: 4 m³/h
- Max. static height: 48.35 m
- Medium temperature (continuous): 5-35 °C
- Motor efficiency class: IE1
- Rated voltage: 230 V
- Standard motor: No
- Ambient temperature: 0-40 °C
- Flange compression stage connection inlet side: PN 6
- Flange compression stage connection outlet side: PN 6
- Volume flow rate (BEP): 4 m³/h
- Discharge head at flow rate (BEP): 192.51 kPa
- Outer pipe diameter connection inlet side: 25 mm
