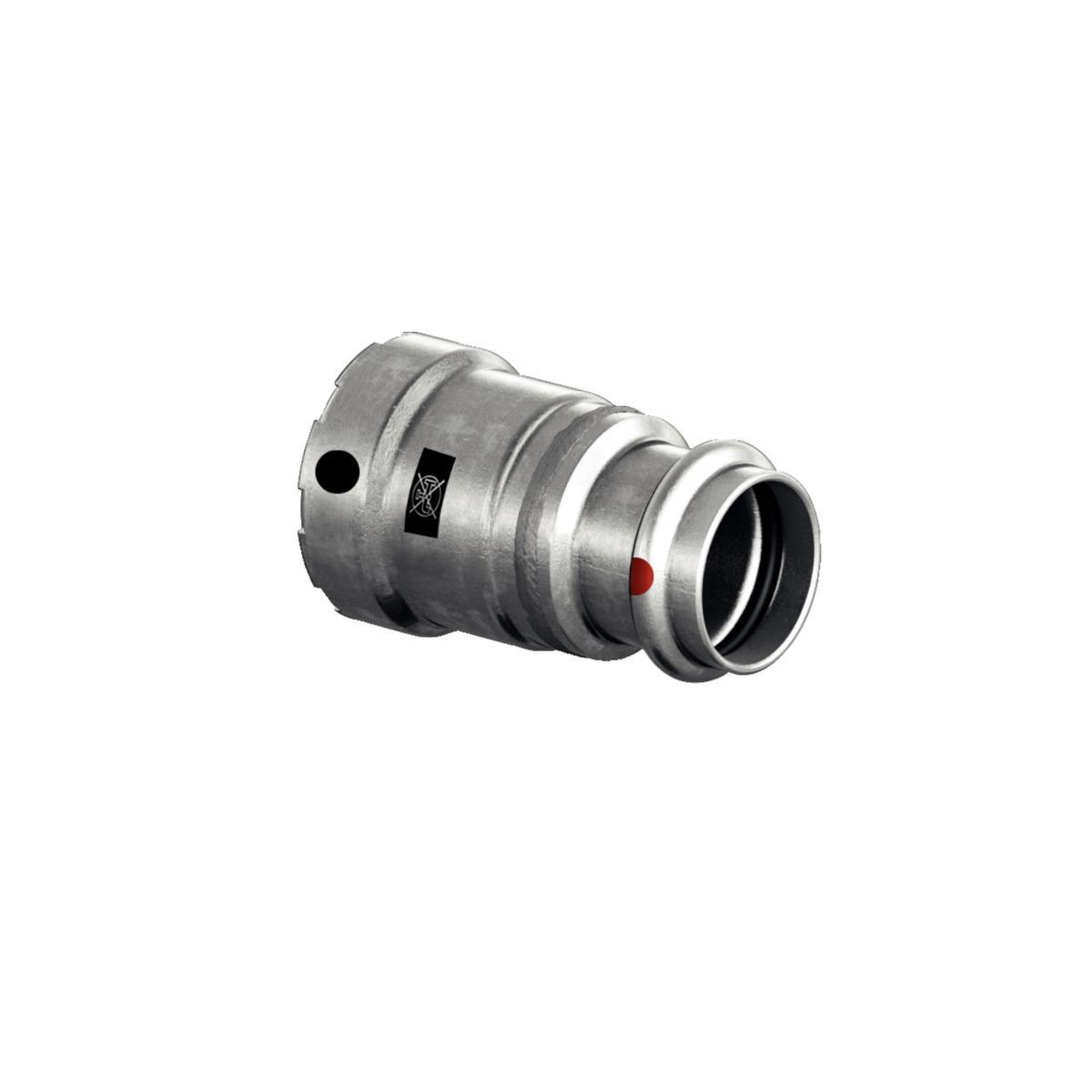

Transition coupling/press coupling Megapress, Viega
Adapter
Article number: Suppl. article no:
1544069
740207
to see price and stock
The Megapress system is intended for installations of heating, sprinkler, cooling, and industrial applications together with steel pipes according to DIN EN 10255 and DIN EN 10220. The Megapress fittings are made of non-alloy steel, material 1.0308, with a zinc-nickel coating of 3-5 microns. Megapress is not intended for drinking water installations and gases according to DVGW G 250. Leakage indicator SC-Contur.
- Article number: 1544069
- Suppl. article no: 740207
- Ean no: 4015211740207
- Material class PAI200
Technical data
- Packagin Size: 1 PCS/5 PCS
- Outer pipe diameter connection 1: 17.2 mm
- Outer pipe diameter connection 2: 15 mm
- Connection 1: Press sleeve
- Connection 2: Press sleeve
- Nominal diameter connection 1: 3/8 inch (10)
- Material connection 1: Steel
- Material connection 2: Steel
- Material sealing: Ethylene-propylene diene monomer rubber (EPDM)
- Max. operating pressure at 20 °C: 16 bar
- Surface protection connection 1: Zinc/nickel
- Surface protection connection 2: Zinc/nickel
- Length: 64 mm
- FM quality mark: Yes
- Shape: Straight
- Reducing: Yes
- Material quality connection 2: St 35 (1.0308)
- Material quality connection 1: St 35 (1.0308)
- With de-aerator: No
- With drain valve: No
- With sealing rings/gaskets: Yes
- With buffer stud: Yes
- Model: 1-part
- System specific: Yes
- Surface treatment connection 1: Untreated
- Surface treatment connection 2: Untreated
- Eccentric: No
- REACH Date: 2019-03-04
- REACH Information obligation: No
