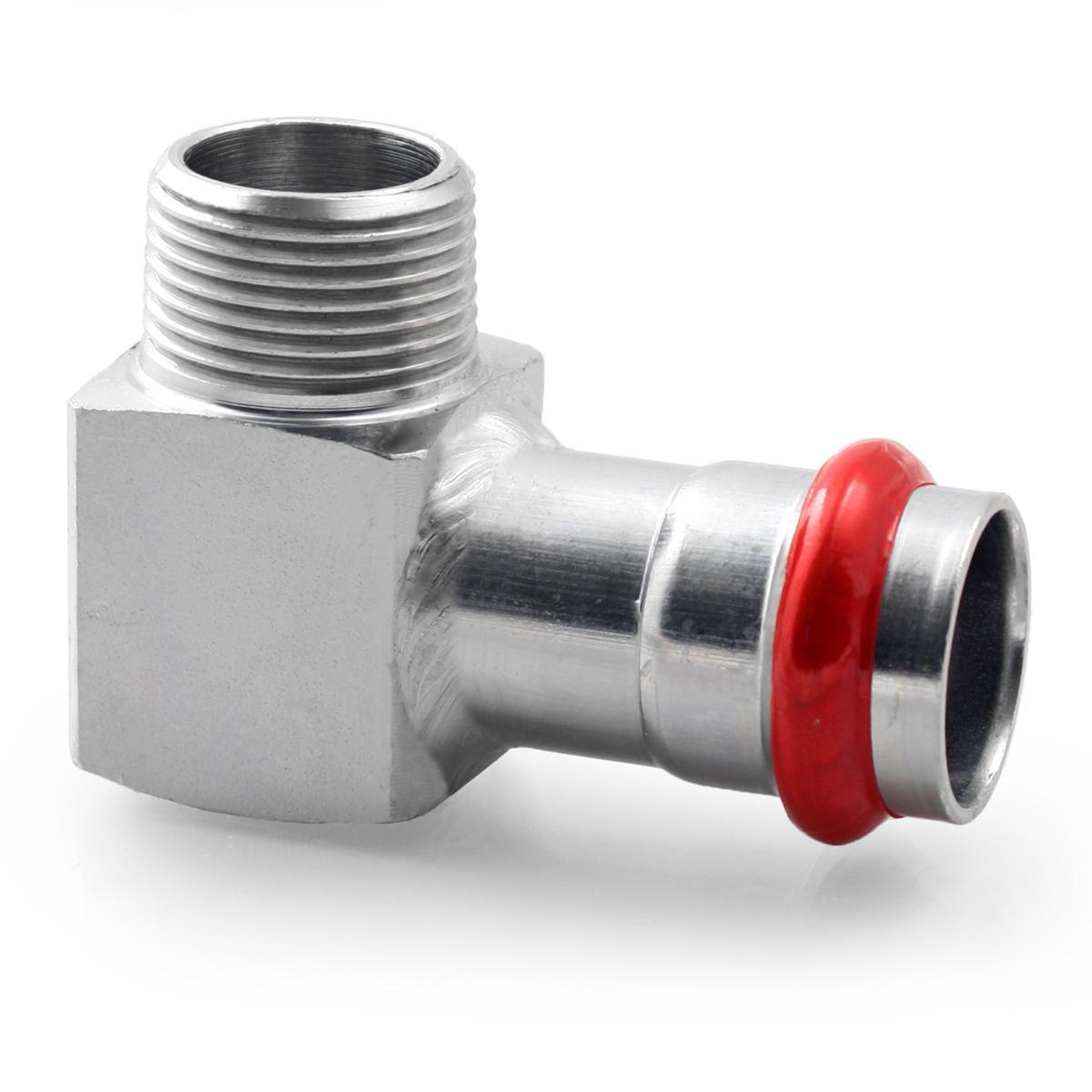

Angle 90° external thread type V, galvanized, A-press, a-collection
12G10 ELBOW 90° V CARBON STEEL A-PRESS-MALE THREAD
Article number: Suppl. article no:
1556430
C31NBVI-LBP
to see price and stock
A-press - galvanized pipes and fittings with heat and aging-resistant sealing rings. Joined using press tool.
- Article number: 1556430
- Suppl. article no: C31NBVI-LBP
- Ean no: 07350027277095
- Material class PAI04B
Technical data
- Packagin Size: 1 ST/20 ST
- Outer pipe diameter connection 1: 12 mm
- Outer pipe diameter connection 2: 10 mm
- Connection 1: Press sleeve
- Connection 2: External thread conical BSPT-R (ISO 7-1 / EN 10226-1)
- Nominal diameter connection 2: 3/8 inch (10)
- Material connection 1: Steel
- Material connection 2: Steel
- Material sealing: Ethylene-propylene diene monomer rubber (EPDM)
- Max. operating pressure at 20 °C: 16 bar
- Bend angle: 90 °
- Surface protection connection 1: Galvanic/electrolytic zinc plated
- Surface protection connection 2: Galvanic/electrolytic zinc plated
- Medium temperature (continuous): -20-95 °C
- Contour code connection 1: V
