Mapress

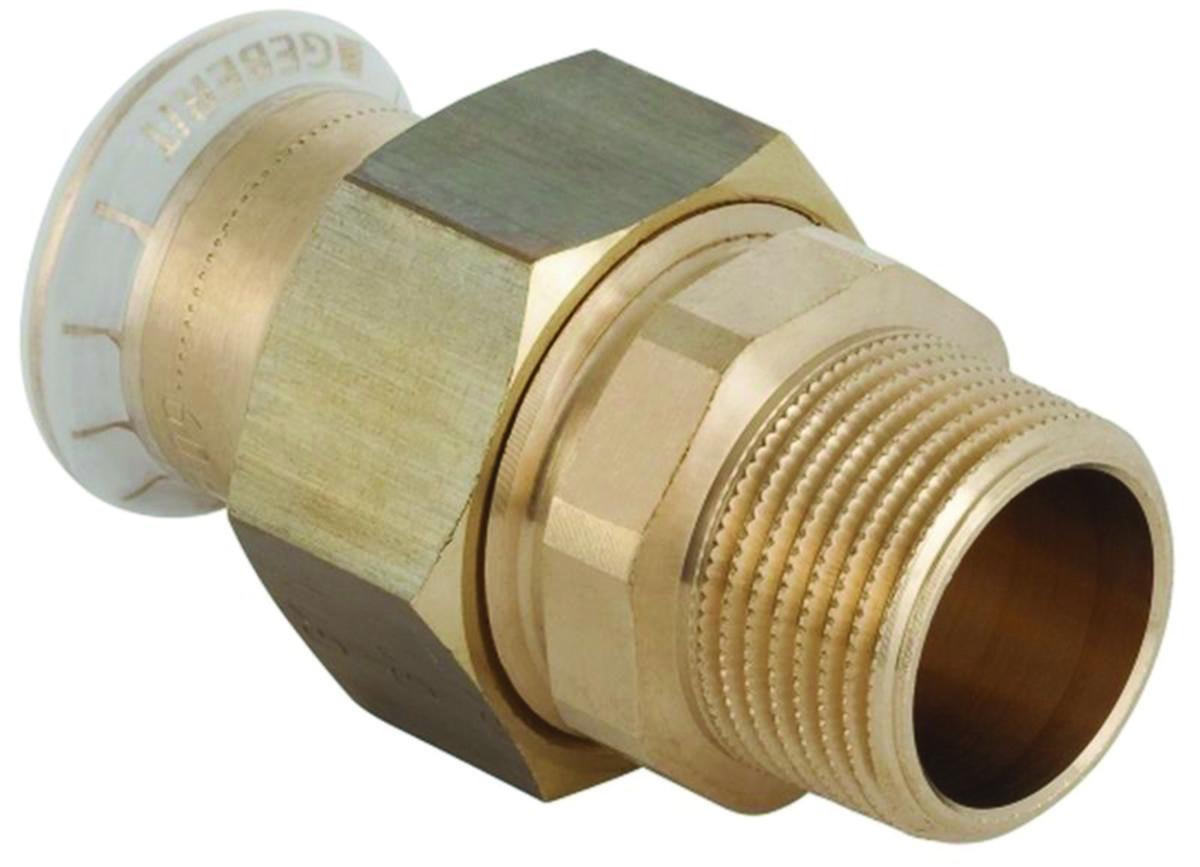

Union coupling 1-sleeve/ext. threaded, copper, Mapress
22XR20 UNION MALE THREAD MA-PRESS
Article number: Suppl. article no:
1767487
65543
to see price and stock
Pressed with the M-gradients.
- Article number: 1767487
- Suppl. article no: 65543
- Ean no: 4024723655435
- Material class PAH11B
Technical data
- Packagin Size: 1 ST/5 ST/50 ST
- Outer pipe diameter connection 1: 22 mm
- Outer pipe diameter connection 2: 20 mm
- Connection 1: Press sleeve
- Connection 2: External thread conical BSPT-R (ISO 7-1 / EN 10226-1)
- Nominal diameter connection 2: 3/4 inch (20)
- Material connection 1: Brass
- Material connection 2: Brass
- Max. operating pressure at 20 °C: 16 bar
- Medium temperature (continuous): 0-120 °C
- Contour code connection 1: M
- Material quality connection 1: CuSn5Zn5Pb2
- Material quality connection 2: CuSn5Zn5Pb2
- REACH Date: 2021-11-17
- REACH Information obligation: No
