a-collection

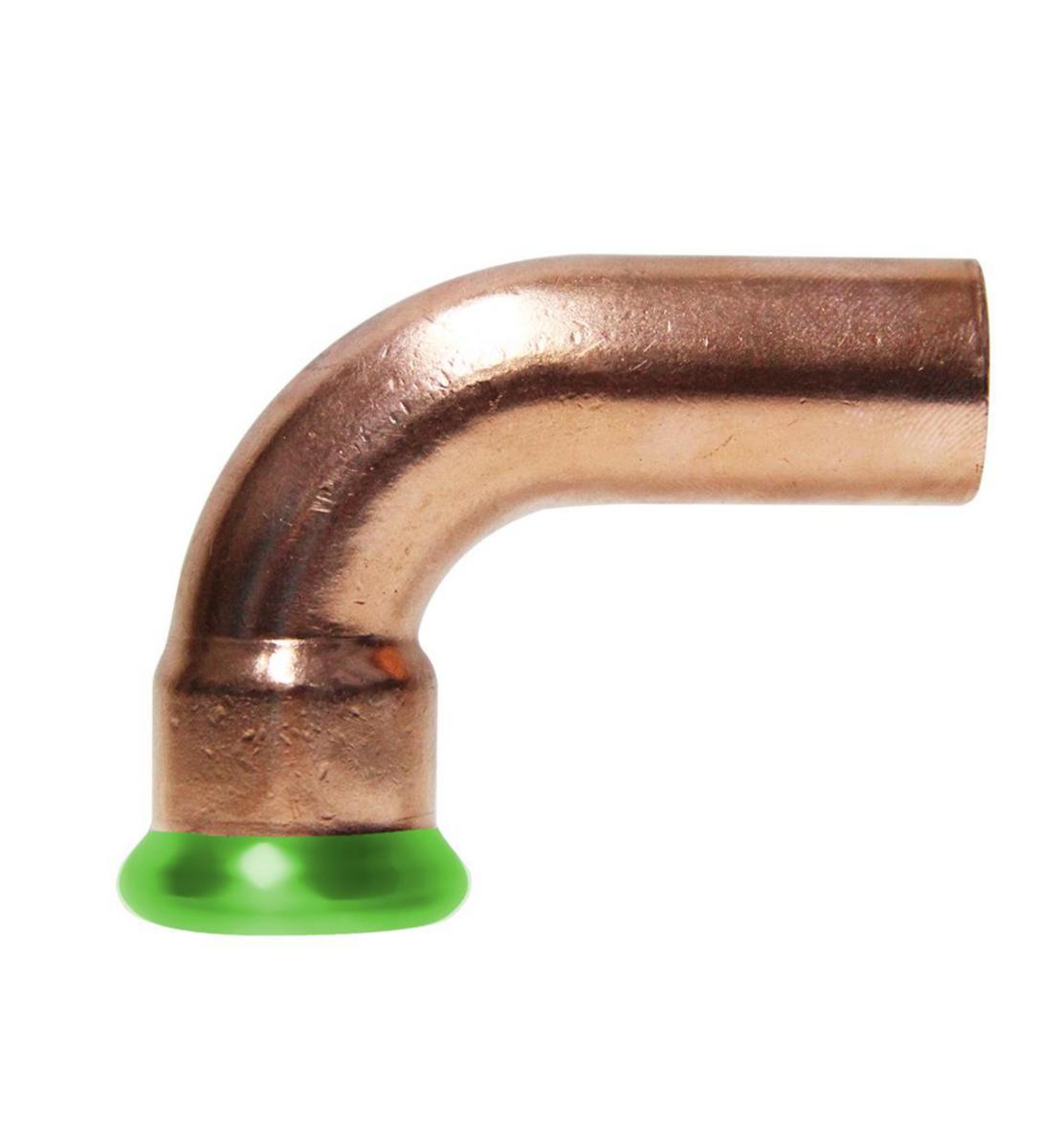

Bend 90° with 1 socket Type M Copper, a-collection
12 ELBOW 90° W. PLAIN END CU M A-PRESS
Article number: Suppl. article no:
1189355
104ENM12AB
Normally in stock
to view the store status of the store
to see price and stock
Pressed with M-slopes.
- Article number: 1189355
- Suppl. article no: 104ENM12AB
- Ean no: 7340080736943
- Material class PAH050
Technical data
- Packagin Size: 1 ST/10 ST/600 ST/21600 ST
- Outer pipe diameter connection 1: 12 mm
- Outer pipe diameter connection 2: 12 mm
- Connection 1: Press sleeve
- Connection 2: Slide end
- Material connection 1: Copper
- Material connection 2: Copper
- Max. operating pressure at 20 °C: 16 bar
- Medium temperature (continuous): 0-100 °C
- Contour code connection 1: M
- Contour code connection 2: M
- Bend angle: 90 °
- GWP-tot (A1-A3): 0,1974 kgCO2e/st
