a-collection

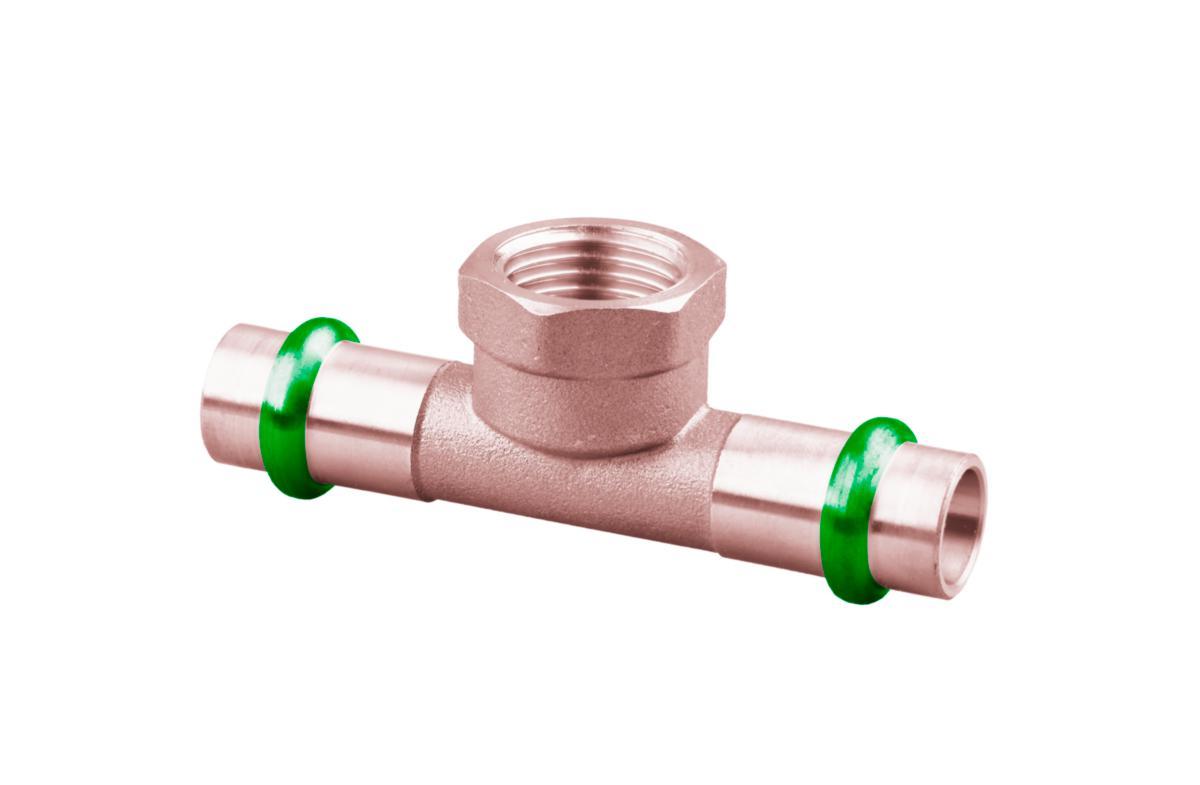

T-pipe, with internal thread branch Type V, a-collection
15xR15 A-PRESS CU TEE TYPE V FEMALE THREAD AVST
Article number: Suppl. article no:
1185697
1185697
The selected article has been replaced.
Pressed with V-jaws.
- Article number: 1185697
- Suppl. article no: 1185697
- Ean no: 7333123057778
- Material class PAH01B
Technical data
- Packagin Size: 1 ST/20 ST/100 ST/4800 ST
- Outer pipe diameter connection 1: 15 mm
- Outer pipe diameter connection 3: 15 mm
- Nominal diameter connection 2: 1/2 inch (15)
- Connection 1: Press sleeve
- Connection 2: Internal thread cylindrical BSPP-G (ISO 228-1)
- Connection 3: Press sleeve
- Contour code connection 1: V
- Contour code connection 3: V
- Medium temperature (continuous): 110 °C
- Material connection 1: Brass
- Material connection 2: Brass
- Material connection 3: Brass
- Max. operating pressure at 20 °C: 16 bar
- Material sealing: Ethylene-propylene diene monomer rubber (EPDM)
