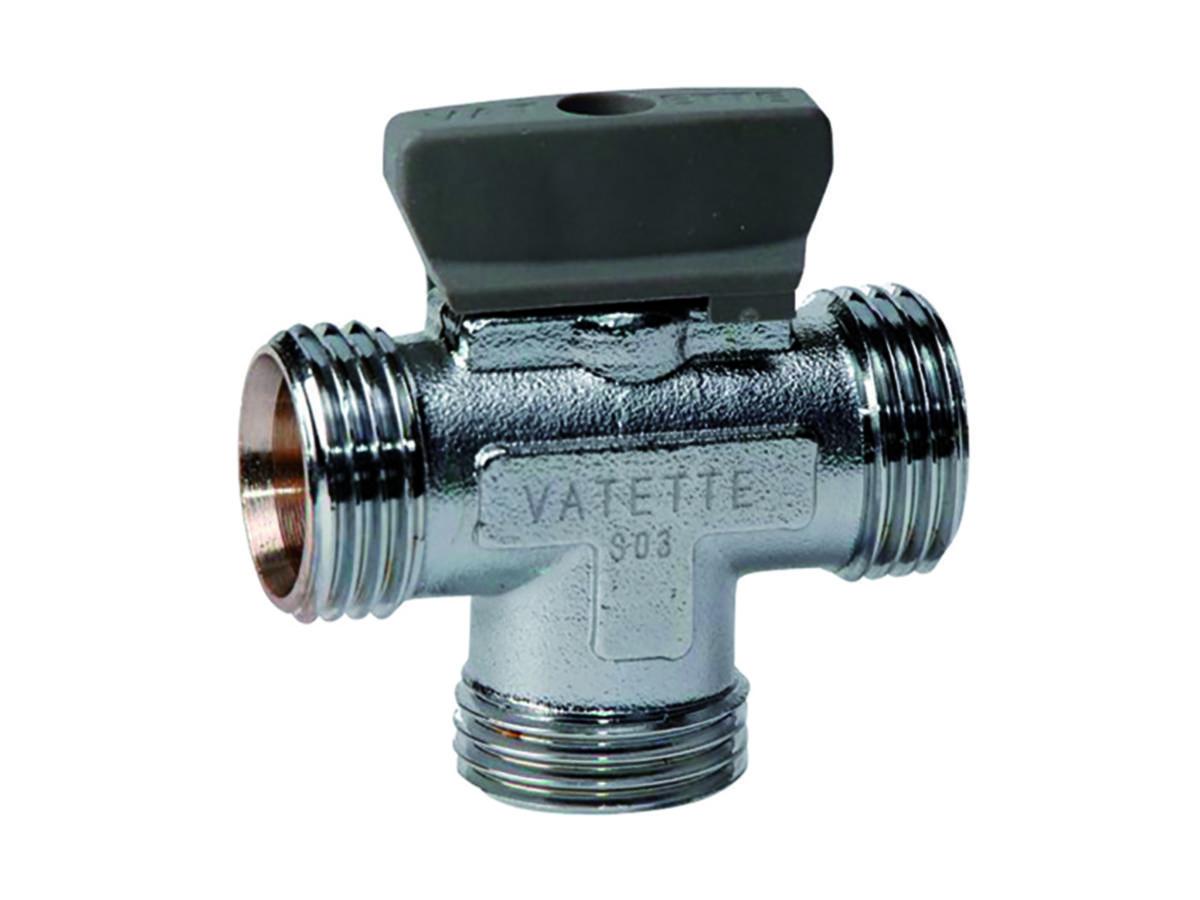

Vatette Ball Valves, Chrome-Plated with Handle, T-Valve External Thread
G15 BALL VALVE VATETTE W.KNOB T, MALE, CHROME
Article number: Suppl. article no:
8546976
FG077050008
to see price and stock
- Article number: 8546976
- Suppl. article no: FG077050008
- Ean no: 7393792003445
- Material class PAG11B
Technical data
- Packagin Size: 1 ST/5 ST
- Outer pipe diameter connection 1: 15 mm
- Outer pipe diameter connection 2: 15 mm
- Outer pipe diameter connection 3: 15 mm
- Connection 1: External thread cylindrical BSPP-G (ISO 228-1)
- Connection 2: External thread cylindrical BSPP-G (ISO 228-1)
- Connection 3: External thread cylindrical BSPP-G (ISO 228-1)
- Article compression class: PN 10
- Ball bore: T-bore
- Full bore: No
- Material quality: Dezincification resistant brass (DZR)
- Max. pressure difference at 20 °C: 10 bar
- Surface protection: Chromium-plated
- Min. medium temperature (continuous): -20 °C
- Max. medium temperature (continuous): 100 °C
- Housing material: Brass
