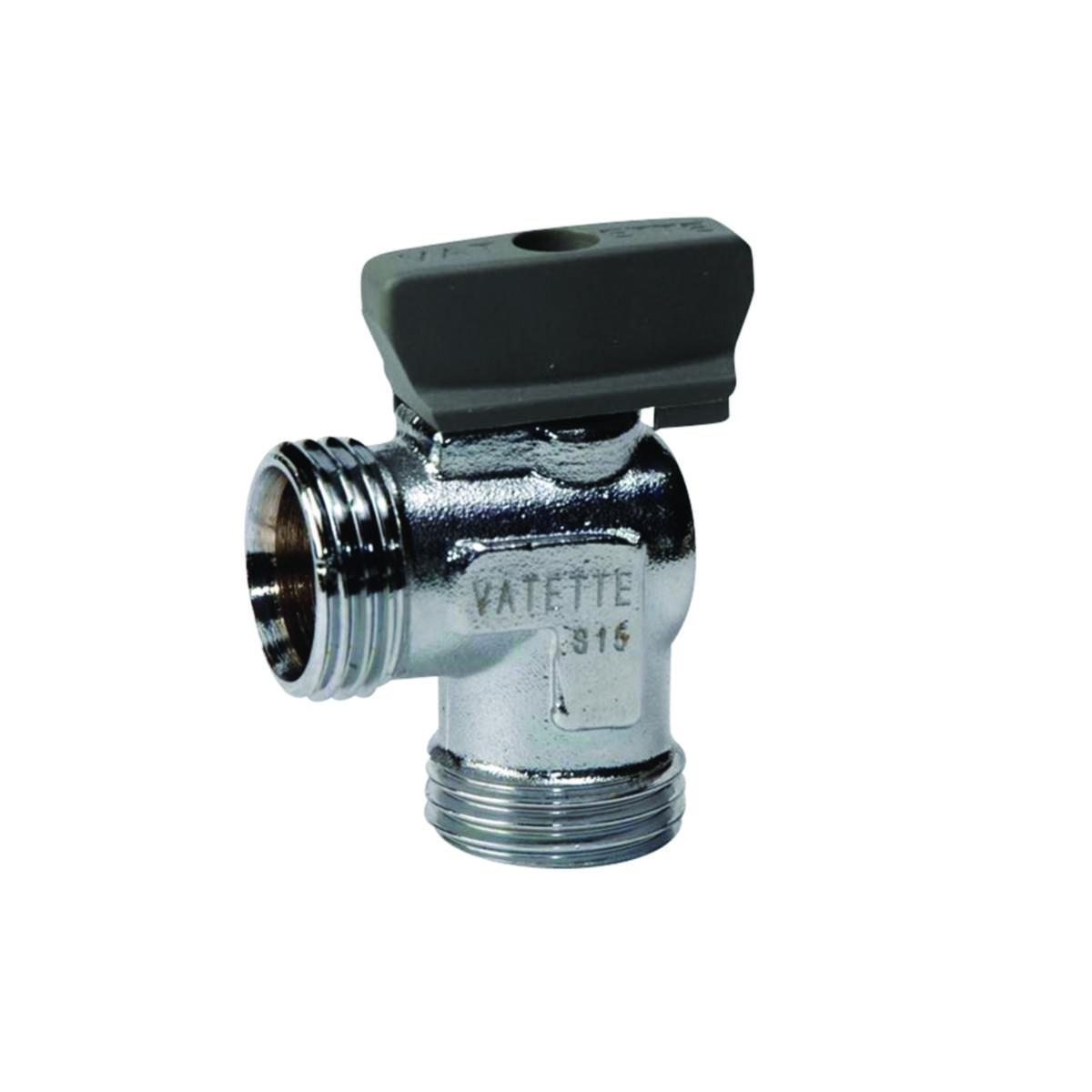

Vatette Ball Valves, Chrome-Plated with Handle, Angle External Thread
G15 MINIBALLVALVE ANGLE MALE CROME, VATETTE
Article number: Suppl. article no:
8546969
FG074050008
to see price and stock
For copper pipes, stainless steel pipes, and PEX pipes.
- Article number: 8546969
- Suppl. article no: FG074050008
- Ean no: 7393792003803
- Material class PAG11B
- This is an alternative to item 8540585
Technical data
- Packagin Size: 1 ST/5 ST
- Connection 1: External thread cylindrical BSPP-G (ISO 228-1)
- Connection 2: External thread cylindrical BSPP-G (ISO 228-1)
- Nominal diameter connection 1: 1/2 inch (15)
- Nominal diameter connection 2: 1/2 inch (15)
- Outer pipe diameter connection 1: 21.3 mm
- Material ball seal: Ethylene-propylene diene monomer rubber (EPDM)
- Material ball: Brass
- Material quality: Dezincification resistant brass (DZR)
- Max. pressure difference at 20 °C: 10 bar
- Surface protection housing: Chromium-plated
- Housing material: Brass
- Medium temperature (continuous): -20-100 °C
- Full bore: No
- Material primary spindle seal: Ethylene-propylene diene monomer rubber (EPDM)
- Material spindle: Brass
- Model: Right-angled
