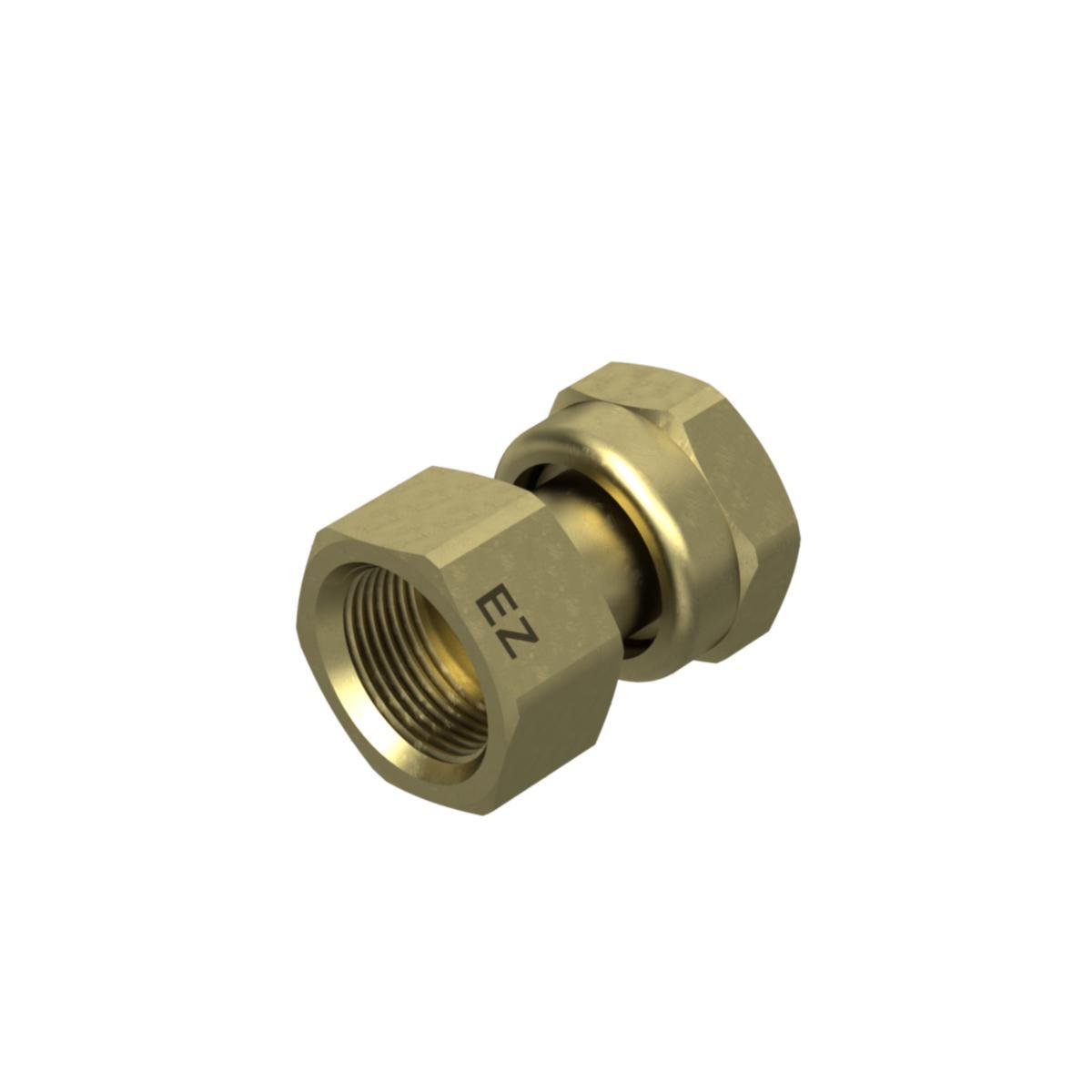

Straight coupling with swivel nut x female thread Yellow, Ezze
EZZE SWIVEL NUT CONN. STRAIGHT G15 FEMALE X G20 NUT
Article number: Suppl. article no:
8504000
8504000
Normally in stock
to view the store status of the store
to see price and stock
Straight coupling Swivel nut x female thread, AZH brass, Yellow, PN16, max temp +185°C.
- Article number: 8504000
- Suppl. article no: 8504000
- Material class PAE330
Technical data
- Connection 1: Union nut
- Connection 2: Internal thread cylindrical BSPP-G (ISO 228-1)
- Nominal diameter connection 1: 3/4 inch (20)
- Nominal diameter connection 2: 1/2 inch (15)
- Shape: Straight
- Material connection 2: Brass
- Material connection 1: Brass
- Max. operating pressure at 20 °C: 16 bar
- Material quality connection 2: Dezincification resistant brass (DZR)
- Material quality connection 1: Dezincification resistant brass (DZR)
- Surface protection connection 1: Untreated
- Surface protection connection 2: Untreated
- Medium temperature (continuous): 185 °C
