EZZE

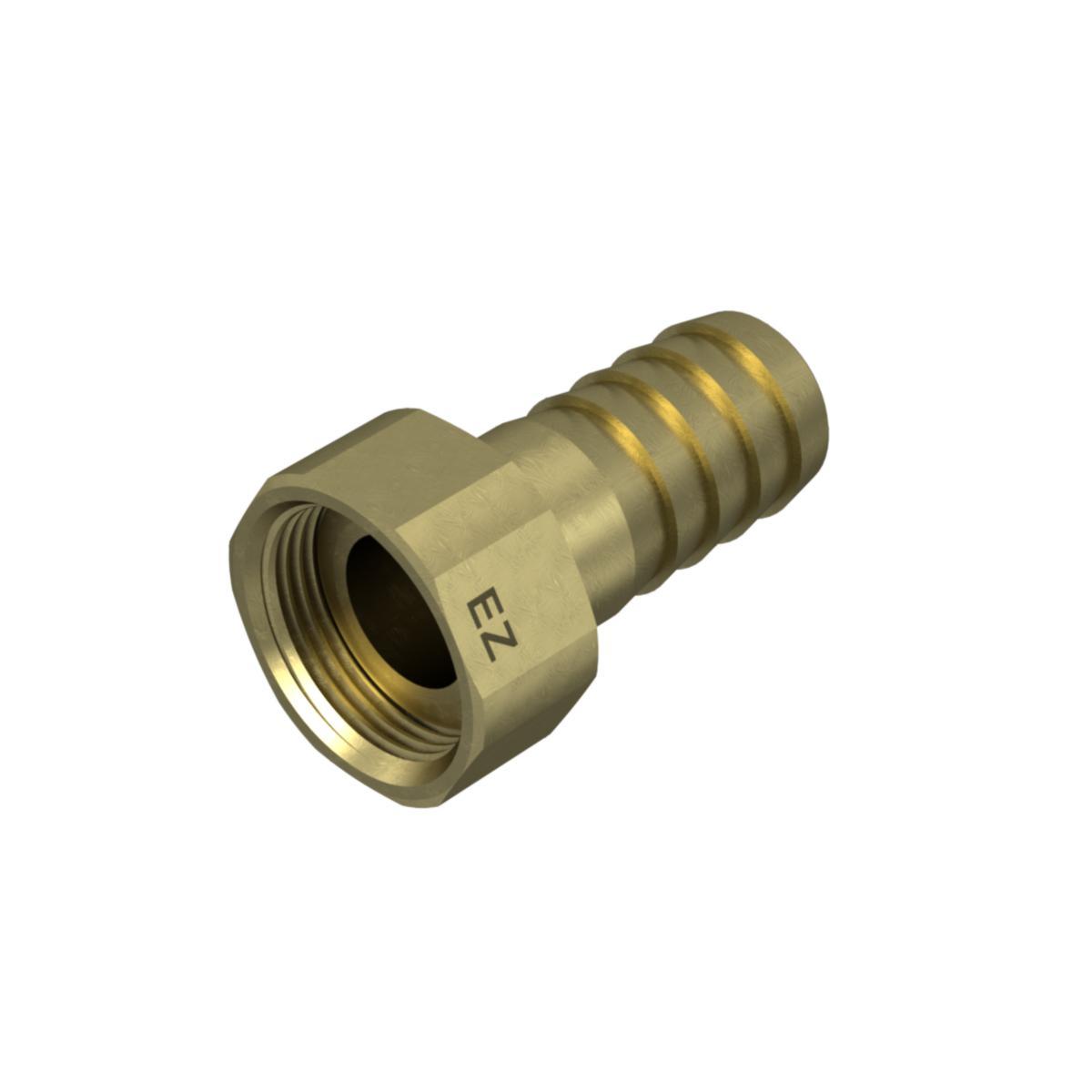

Hose coupling half internal thread
G10x3/8" HOSE NIPPLE FEMALE FOR HOSE 11MM ID.HEXAGON NUT
Article number:
2174407
to see price and stock
Internal thread
- Article number: 2174407
- Ean no: 7391653744070
- Material class PAE17A
Technical data
- Packagin Size: 1 ST/10 ST
- Connection 2: Union nut
- Nominal diameter connection 1: 3/8 inch (10)
- Nominal diameter connection 2: 3/8 inch (10)
- Outer pipe diameter connection 1: 16.6 mm
- Outer pipe diameter connection 2: 16.6 mm
- Bend angle: 0 °
- Shape: Straight
- Reducing: No
- Material connection 2: Brass
- Material connection 1: Brass
- Max. operating pressure at 20 °C: 16 bar
- Material quality connection 2: CuZn39Pb3 (CW614N)
- Material quality connection 1: CuZn39Pb3 (CW614N)
- With de-aerator: No
- With drain valve: No
- With buffer stud: No
- With sealing rings/gaskets: Yes
- Capped: No
- Model: 2-part
- Surface treatment connection 1: Untreated
- Surface treatment connection 2: Untreated
- Surface protection connection 1: Untreated
- Surface protection connection 2: Untreated
- System specific: No
- Wrench width union nut: 18 mm
- Length of connection 2: 10.4
- Length of connection 1: 26.5 mm
- REACH Date: 2022-03-01
- REACH contains candidate substances: Bly
- Type: 6-sided nut
- Material: Brass
- REACH Information obligation: Yes
