EZZE

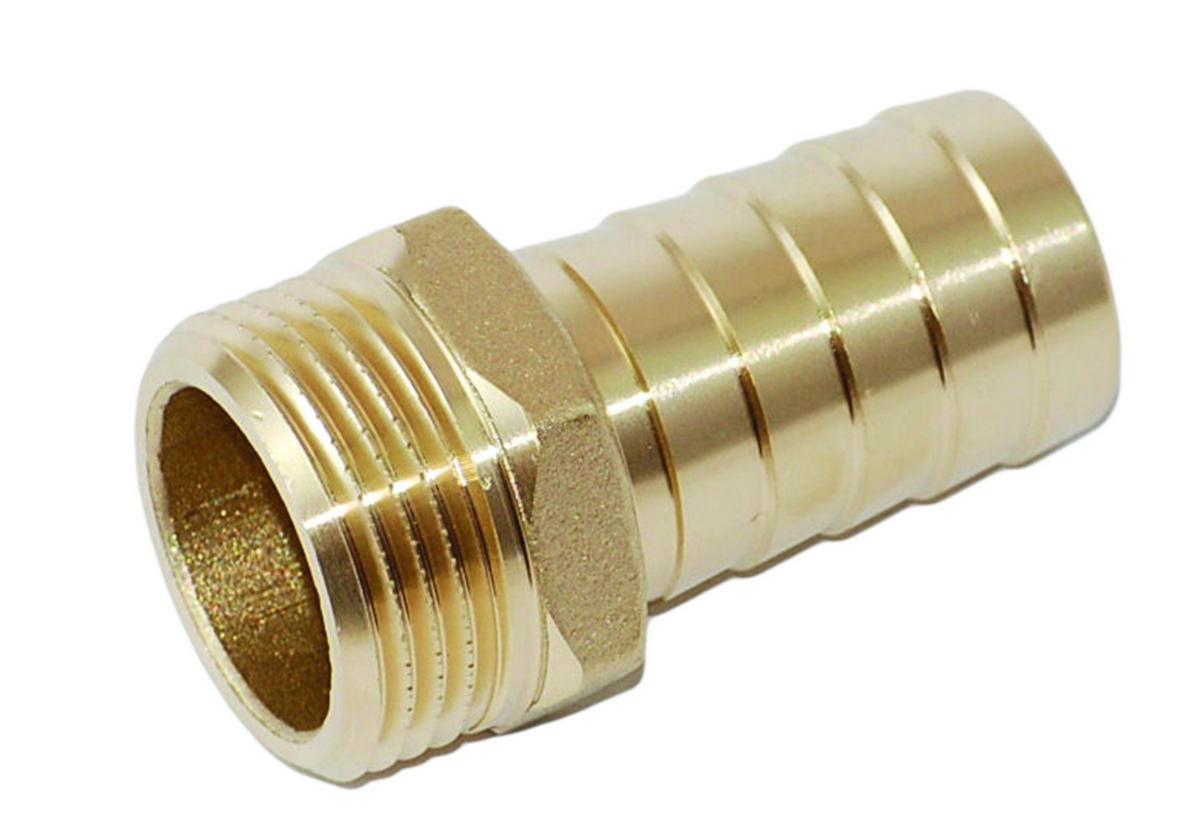

Hose nipple with external thread brass
G25x3/4" HOSE NIPPLE MALE FOR HOSE 20MM INNER DIAM
Article number:
2174302
to see price and stock
External thread
- Article number: 2174302
- Ean no: 7315170000518
- Material class PAE17B
Technical data
- Packagin Size: 1 ST/10 ST
- Connection 1: Hose pillar
- Connection 2: External thread cylindrical BSPP-G (ISO 228-1)
- Nominal diameter connection 2: 1 inch (25)
- Outer pipe diameter connection 1: 20 mm
- Bend angle: 0 °
- Shape: Straight
- Reducing: Yes
- Material connection 2: Brass
- Material connection 1: Brass
- Max. operating pressure at 20 °C: 16 bar
- Material quality connection 2: CuZn39Pb3 (CW614N)
- Material quality connection 1: CuZn39Pb3 (CW614N)
- With de-aerator: No
- With drain valve: No
- With buffer stud: Yes
- With sealing rings/gaskets: No
- Capped: No
- Model: 1-part
- Surface treatment connection 1: Untreated
- Surface treatment connection 2: Untreated
- Surface protection connection 1: Untreated
- Surface protection connection 2: Untreated
- System specific: No
- Length of connection 2: 36 mm
- Length of connection 1: 18 mm
- Length: 58 mm
- Material: Brass
